Product Description

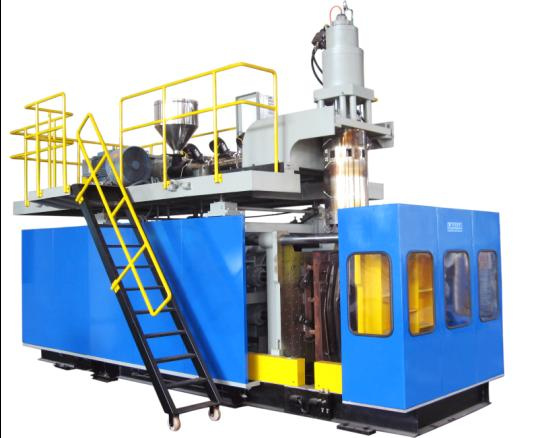

BLB100N Fully automatic extrusion blow molding machine(accumulator)
Apply material: HDPE, PP, PE, PVC, etc.
Production capacity: 120 L(max)
Theory output: 360/hr
Screw type: Same distance, different depth, gradual change
Screw diameter: 100mm
Screw L/D: 24/1
Material: 38CrMoALA treated with Nitrogen
Screw rigidity: HV700-840,
Screw brittleness: <=2 degree
Heating zones: 5
Mould material: Treated with Nitrogen
Temp control:
Japan PLC control module
Max size of mold (L*H): 880*1000mm
It can equip with singledoublethirdfourth blowing equipment.
Japan Mitsubishi PLC + human-computer interface (Chinese or English interface), touching screen operation,
Realizing the dialog between human and machine, import components.
Production process of settingchangingsearchingtrouble.
We are professional manufacture the blow molding machine over 14 years experiences, also we can design according to client requirement, and save cost, we ensure can supply high quality but lowest price and good after-service. Hope can cooperation with you, and create beautiful furture together.
