Product Description

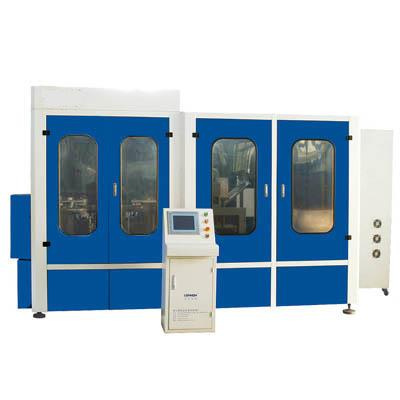

CM-G6 is the most stable fully automatic pet stretch blow molding machine. The capacity of the products range from 0.6L to 1.5L. It can blow pet bottles for different use: Pure water and soda water, soft drinks, fruit juices, tea, energy water, milk and dairy products, beer, oil and sauce, and other drink packing containers, which is made of plastic of crystalline type, such as PET etc.
CM-G series rotary machine adopted original heating and blowing technique, by which the automatic blowing machine series have achieved in powerful productivity but very reasonable price.
A. Advantages of rotary automatic blow molding machine
1. High productivity: 1400PCS/cavity/hour
2. High eligible rate: Above 99.5%.
3. Power saving: Heater is fixed with link of short section (pitch 43.8mm), which assures to heat more performs with the same heating length. In this way, it saves electricity of 25%.
4. Adopting SIMENS electric controlling system with high precision and fast speed.
Stable function: Blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency.
5. Mold fixing structure assures fast mold fixing speed and fast mold changing speed.
6. Automatic plastic loader and automatic recovery device.
B. Advanced processing equipment:
Machine center, CNC lathe, EDM, such as many imported United States and Japan machine tools assure processing precision and good interchangeable function.
Main part:
Pneumatic part
Valve
FESTO
Cylinder
Yong Cheng
Electric part
PLC
SIEMENS
Operating system
SIEMENS
Relay
SCHNEIDER
Note
All of the electrical components adopts CE UL CCC approved international advanced high-tech product.
Main parameter:
Model
CM-G6
Productivity
Depend on bottle design
7000-9000 pcs/h
Product type
Body diameter
φ90
Height
280mm
Neck diameter
18-38mm
Mold
Cavity
6
Mold thick
φ190
Mold
380v/220v 50/60Hz
Main machine power
Electrical source power
150KW
Really use power
65KW
Air source
LP air compressor
9.48 m3/min 30kg
Air dryer
10 m3/min 30kg
Cooling water
Cooling water
5P
Mainer Size
L*W*H
3200*2700*2190mm
Auxiliaryequipment
L*W*H
2000*950*2480mm
Weight
T
6000Kg
Resin available
PET
