Oil Pump:
Vickers
PLC Temperature Control Module:
B&R From Austria
Oil Valve:
Condition New
Inverter:
LG From Korea for Choice
Linear Transducer:
Germany
Guide Rall/Slide Bearing:
Rexroth From Germany
Switch-Power Supply:
Mean Well From Taiwan
Motor:
China
Screw,Barrel:
Taixing From Taiwan
Solenoid Valve:
SMC From Japan
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Computerized:
Computerized
Certification:
ISO9001:2008
Raw Material:
PE/PP/PS/PETG/PVC/EVOH/PC
Product Description

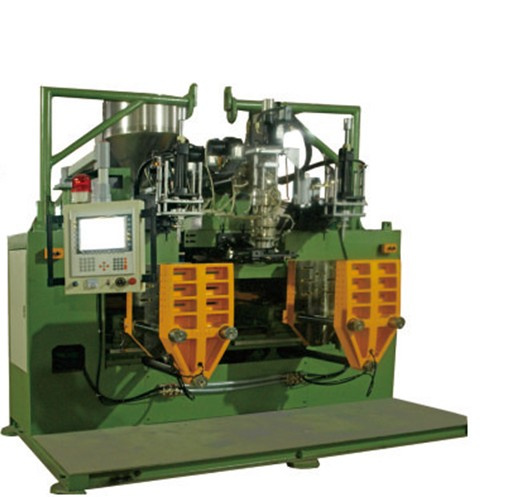

1. Extrusion Bottle Blow Molding Machine (DKB-2.5L)
2. HDPE Bottle Blow Molding Machine (with De-flashing system)
3. Olil Bottle Blow Molding Machine (with view strip line/Transparent line device)
4. Pesticide Plastic Bottle Blow Molding Machine (with multilayer material)
5. Full automatic Blow Molding Machine (with recycle system)
6. Bottle Blow Molding Machine (with paristion controller)
7. Milk Bottle Blow Molding Machine (with multi-head)
8. PVC Material Hollow Blow Molding Machine (with cooling cutter)
9. High speed Blow Molding Machine (with labeling machine)
10. PE Oblique Bottle Blow Molding Machine (with oblique blow function)
11. Container product Blow Molding Machine (with wide mouth bottle cutting machine)
12. Blow Molding Machine for TPU sole part
DKB Model Blow Molding Machine Character
A.？？？ High speed,
B.？？？？Stable and g.
C.？？？？Steadiness Well
D. ？ ？Energy-Saving
E. ？ ？？CE Approved
F. ？ ？？Professional for TPU Product
G. ？ ？？Flat movement Guide Rail Type
H. ？ ？？Servo-Pump Energy Saving System
1. Double station, single head for four head
2. Mold center distance: Double 130mm, three 90mm, four 75mm
3. Single layer to six layer, can match transparence line
4. Daily output capacity(24 hours), can reach 12, 000-60, 000pcs
5. Can make 0.1-3L plastic hollow products
Parameters:
Screw Diameter: Φ 55
Screw L/D ratio: 26: 1
Screw RPM(50Hz): 10-80r/min
Extruction capacity per hour(PE): 60kg/h
Number of heaters: 4
Opening stoke: 420mm
Clamping stoke: 150-380mm
Mold clamping force(160Bar): 6T
Dry cycle time: 3.6S
Cooling water consumption: 0.5m3/min(0.3Mpa, 180C)
Compressed air consumption: 0.8m3/min(0.8Mpa)
Machine net: 7T
Machine dimension: 3300*2300*3000(mm)
Power Consumption:
Inverter motor: 15KW
Screw heating capacity(PE): 10KW
Hydraulic motor: 11KW
Die-head heating zone power: 6KW
Maximum Electrical power rating: 42KW
Automatic Equipment
1. Auto De-flashing device
2. Cooling cutter device
3. Cooling molding device
4. New-old proportion dispatcher
5. Slanting-blow device
6. Parison thickness controller
7. Auto. Lubrication
8. Slanting conveyor belt
9. Horizontal conveyor belt
10. Auto. Robot arm
11. IML In mold labeling machine？？？？？？？？？？？？？？？？？？？？？？？？？？？？ ？？
12.Crusher
13. Auto. Loader
14. Stand-alone wild-mouth bottle trimming machine (Cutting machine)
15.In-Mold Lableing Machine
16.Leak Tester
19.Bottle Bagging Machine
Servo-Pump？Energy Saving System Picture
？Production of products made from our SUPER？DKB Series Machine
SUPER Machine parameter/Model
DKB-2.5L
Screw diameter
mm
55
Screw L/D ratio
L/D
26:1
Drive motor(Extrusion motor power)
kw
15
Inverter(Oil pressure power)
kw
11
Screw rotating speed
r.p.m
10-85
Number of the heaters
zone
6
Heating capacity
kw
7.2
Extruding capacity per hour HDPE/PP
kg/h
65
PETG/PVC/PC
kg/h
45
Extruding mouth outer diameter
mm
120
Mold center distance
mm
-
Mold stroke
mm
150-420
Length of mold capacity
mm
100-350
Die width
mm
100-380
Thickness of the mold capacity
mm
150-180
Dry cycle per hour
time/h
1000*2
mold-locked pressure
ton
5.5
Oil tank capacity
L
150
Pressure of air
kg/cm2
6-8
Air Volume
m3/min
0.8
Cooling water pressure
Mpa
0.3-0.5
Cooling water consumption
L/min
50
Min./Max.diameter of product
mm
30-150
Weight of product
g
10-250
Product capacity
L
2.5
Total electrical power rating
kw
42
average electrical power rating
kw
18.26
Machine net weight
ton
6.8
Machine gross weight
ton
7
Machine demension(L*W*H)
m
3.3*2.3*3.0
Box dimension
m3
17.2
Hong Kong DeKeWei Machinery Group is a professional manufacturer who dedicates itself to research, develop and manufacture full automatic extrusion blow molding machine and its auxiliary equipments. Our group's factory, namely Dongguan Jinjun Machinery Co., Ltd. Was established in 1999 in Dongguan City, Guangdong Province, China.
Our factory covers an area of 16, 000 square meters, and has automatic processing equipments such as CNC turning-lathe, CNC processing center, imported inner outer round grinding machine, automatic sheet metal coating production line. Our production capacity is 300 blow molding machines, 400 leak testers, 200 plastic bottles bagging machines and others.
We insist strict implementation of ISO9001 quality certification system, and can provide customers with comprehensive technical support and services. We have become one of the leading suppliers of automation solutions for the blow molding industry. We are the blow molding and packing solutions supplier to some famous international brands including Shell Group, bp, Caltex, Sinopec, Mobil, P&G and Unilever.
Our reputation for professional sales force, knowledgeable application engineers, efficient project teams, and skilled service technicians makes us a winning combination.
