Product:
Carbonated Soft Drinks
Packaging Type:
Bottles
Driven Type:
Electric
Bottle Material:
Pet Bottle
Filling Manner:
Counter-Pressure Filling
Filling Temperature:
0-4°c
Composition:
Filling Machine
Process:
Frozen and Chilled
Processing Material:
Carbonated Soft Drinks
Product Description

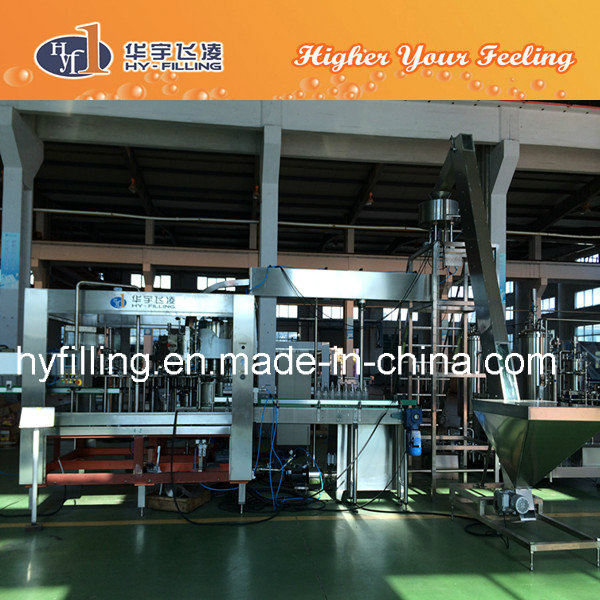

This carbonated soft drinks filling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines. It is applicable for carbonated soft drinks filled in plastic bottles and capped with plastic caps, with optional capacity from 5000BPH to 33000BPH.
Film Shrink-wrapping or Carton Box Packaging Machine;
PA-Depalletizer;
Turn Key Project.
Technical parameters
18-18-6
24-24-8
32-32-10
40-40-12
50-50-15
60-60-15
72-72-18
80-80-20
Production capacity (500ml)(BPH)
5000
8000
12000
15000
18000
24000
29000
33000
Washing heads
18
24
32
40
50
60
72
80
Filling Heads
18
24
32
40
50
60
72
80
Capping Heads
6
8
10
12
15
15
18
20
Filling valve flow rate (ml/s)
135
135
135
135
135
135
135
135
PET bottle size (mm)
Bottle Diameter
D=60~97mm
D=60~97mm
D=60~97mm
D=60~97mm
D=60~97mm
D=60~97mm
D=60~97mm
D=60~97mm
Bottle Height
H=150~320mm
H=150~320mm
H=150~320mm
H=150~320mm
H=150~320mm
H=150~320mm
H=150~320mm
H=150~320mm
Capping torque (N. m)
0.6~2.8
0.6~2.8
0.6~2.8
0.6~2.8
0.6~2.8
0.6~2.8
0.6~2.8
0.6~2.8
Installed capacity (Kw)
2.38
4.18
4.18
4.37
5.87
5.87
9.57
9.57
Compressed Air consumption(0.6Mpa)Nm 3 /min
1.5
1.5~2
1.5~2
1.5~2
2~2.5
2~2.5
2.5~3
2.5~3
Washing bottles water consumption(0.2-0.25Mpa)m 3 /h
1.5
0.6
0.8
0.8
1
1.5
1.5
2
Dimension(L*W*H)(mm)
2500× 2100× 2700
2800× 2400× 2700
4000× 2550× 2850
4400× 2900× 2850
5350× 3500× 2850
5000× 5000× 3000
7100× 6250× 3000
7700× 6750× 3000
Weight(t)
5.5
7
8
9
10.5
14
16
18
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
