Bottle Volume:
1 Cavity 5gal
Making Method Of Parison:
Stretch Blow
Raw Material:
PET
Computerized:
Non-Computerized
Certification:
CE
Automation:
Semi-Automatic
Product Description

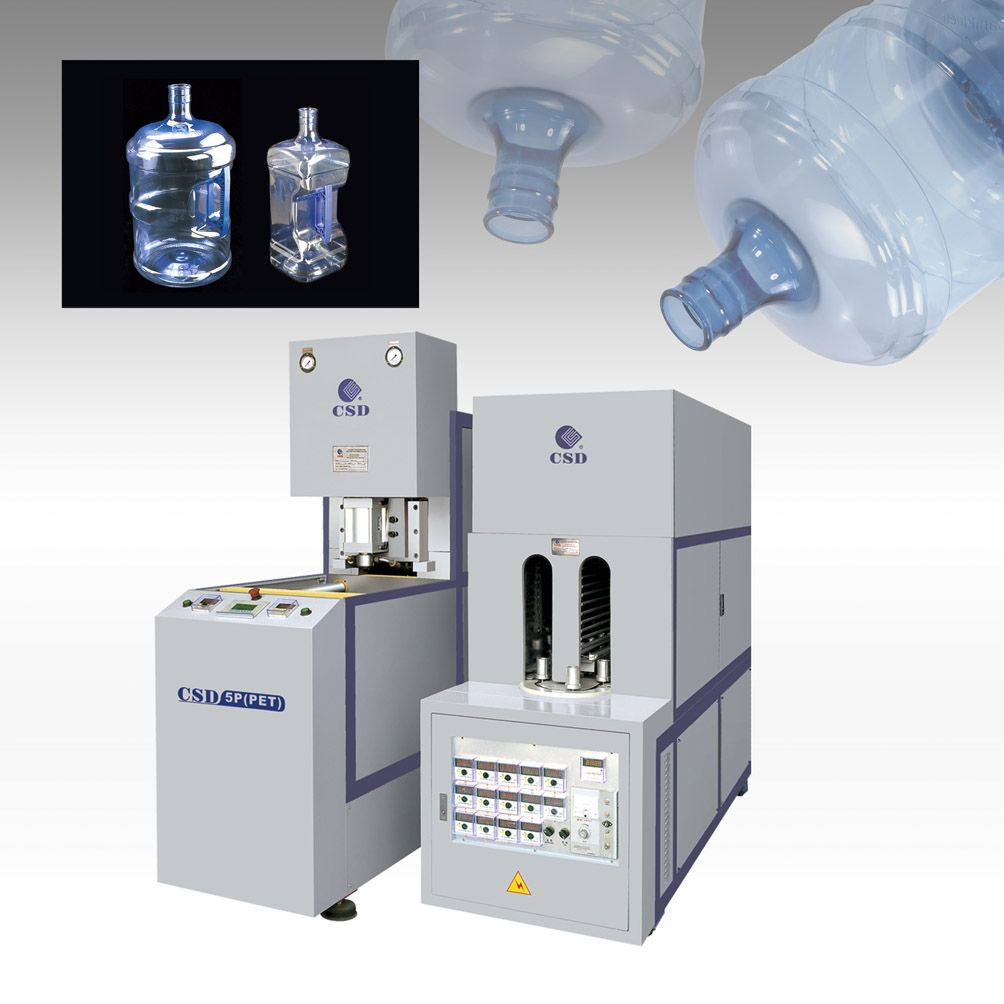

Complete Set of Semi-automatic Blow Molding Machine for 5-Gallon PET Bottle
SETTING:
AIR BLOWING VALVE :PARKER (SWITZERLAND)
AIR VALVE FOR MOLD CLAMPING:BOSCH (GERMANY)
AIR CYLINDER :AOSI (SINO-KOREA JOINT VENTURE FACTORY)
AIR PIPE FOR BLOWING :TOKAI(JAPAN) MAX,PRESSURE :50KGS
AIR PIPE FOR CLAMPING: ,TPUCO (TAIWAN) MAX.PRESSURE :16KGS
OIL LUBRICATOR :MINDMAN (KOREA)
SWITCHES : OMRON (JAPAN)
ALL THE AIR PIPE CONNECTOR: SANG-A (KOREA)
HEATING LAMP : LOW POWER
SEMI-AUTOMATIC BLOW MOLDING MACHINE MODEN CSD-5P(PET)
Item
UNIT
TECHNICAL DATA
Max. Volume of Product
L
3.8-26.6
Production Capacity
pcs/h
70-100
Neck Size of Product
mm
<100
Useful Area of Mould Plate
mm
410×440
Max.Mould Thickness
mm
400
Min.Mould Thickness
mm
350
Mould Stroke
mm
320
Clamping Force
kn
100
Stretching Stroke
mm
530
Working Pressure
Mpa
1.0-1.25
Blowing Air Pressure
Mpa
2.5-3.0
Power of Main Blower
kw
2
A
4
Weight of Main Blower
kg
2100
Measurement of Main Blower
mm
2750×680×2100
Weight of Preheater
kg
560
Power of Preheater
kw
18
A
27
Measurement of Preheater
mm
2200×750×1850
High Pressure Air Compressor
kw
9
Mpa
3
m³/min
0.7
kg
770
Low Pressure Air Compressor
kw
7.5
Mpa
1.25
m³/min
0.8
kg
340
Front & Rear Air Filter
Mpa
3
m³/h
1.0
mm
500×300×700
kg
20
Voltage Regulator
KVA
50
mm
800×620×1400
kg
30
Air Dryer
m³/min
0.7
kg
40
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
