4. Double differential cylinder, symmetric fast moving mold auxiliary mechanism, advanced synchronous mechanism, mold plate running fast and smoothly, maximise the mold open and close speed.
5. Large mold thickness, compact overall optimization design, mold open stroke increased, suitable for much longer product.
6. Single cylinder injection system, uniform stress, fast response speed, decreased energy consumption, improving the production stability of precision products.
7. Servo control, double closed loop control, significant effect on energy saving, reduce system heat and decrease the noise.
CSD-50-SP
CSD-90-SP
CSD-130-SP
CSD-170-SP

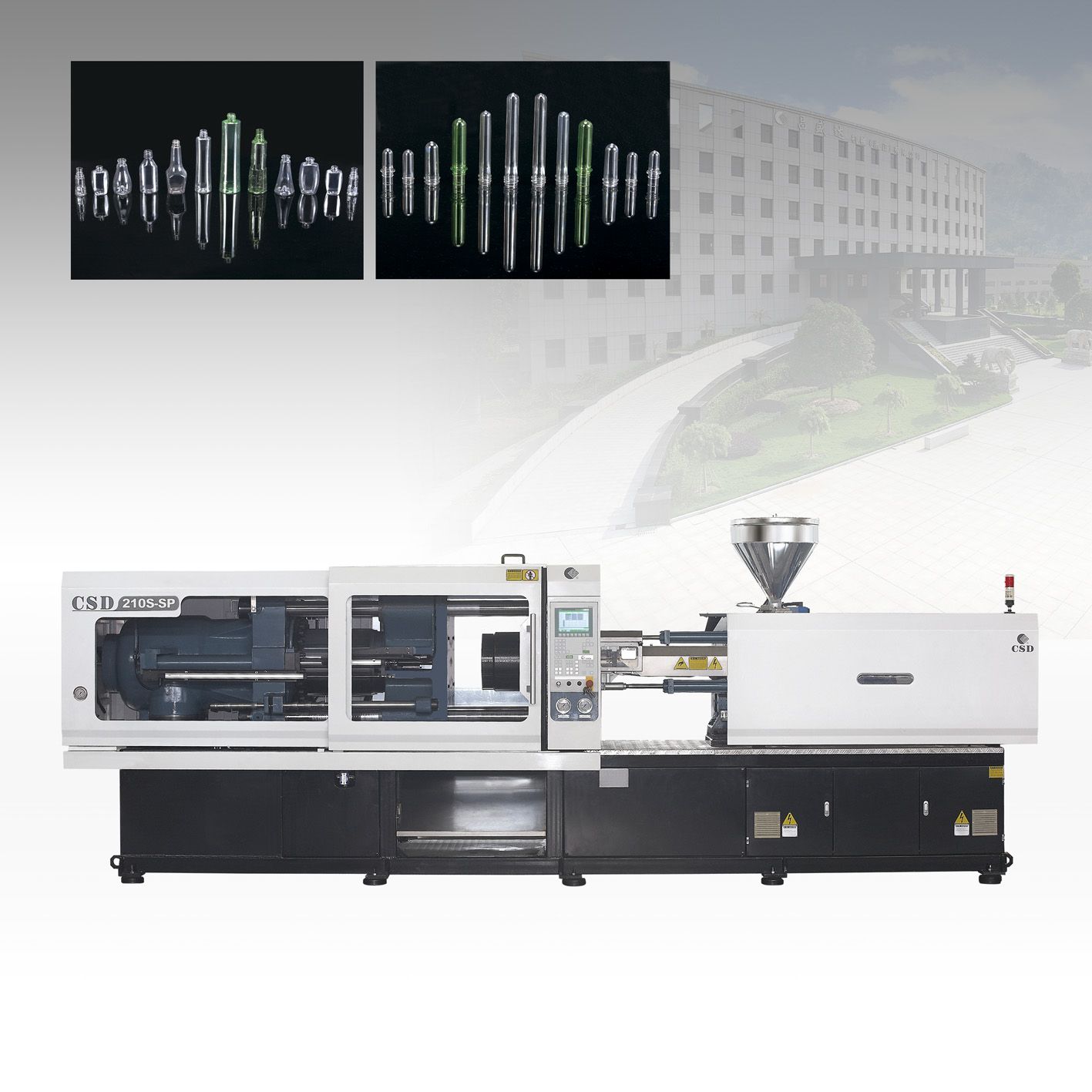

CSD-210-SP
CSD-250-SP
CSD-300-SP
A
B
A
B
A
B
A
B
A
B
A
B
A
B
injection part
SCREW DIMETER
mm
30
32
35
37
37
40
40
46
50
55
56
62
60
65
SCREW L/D RATIO
L/D
21
19.7
20.8
19.7
22.2
20
22.3
20
22
20
22
20
22
20
SHOT VOLUME(THEORETICAL)
cm³
92
103
150
168
206
241
283
374
471
570
662
812
882
1035
SHOT WEIGHT
g
84
94
137
153
188
219
258
340
429
518
602
738
802
942
oz
2.9
3.3
4.8
5.4
6.6
7.8
9.1
12
16.4
20.1
21.2
26
28
33.2
INJECTION PRESSURE
MPa
200
175
193
173
220
190
243
184
200
167
196
160
219
187
SCREW SPEED
g/s
53
60
88
100
117
130
124
157
210
254
281
335
272
319
SCREW SPEED
r/min
0~220
0~220
0~200
0~200
0~200
0~200
0~200
PLASTICIZING CAPACITY
g/s
8.2
9.2
12.1
13
12.9
15
13.6
18.6
24.1
30.8
31.3
37.4
35.7
40
clamping part
CLAMPING FORCE
kN
500
900
1300
1700
2100
2500
3000
OPEN STROKE
mm
420
480
510
660
720
770
820
SPACE BETWEET TIE BARS(WXH)
mm
330 x 330
380 x 380
420 x 420
480 x 480
540 x 540
600 x 600
690 x 690
MOULD THICKNESS
mm
150~570
180~660
200~710
220~880
260~980
280~1050
350~1170
EJECTOR FORCE
kN
25
30
40
50
60
70
85
EJECTOR STROKE
mm
80
100
130
180
200
200
230
EJECTOR NUMBER
n
1
5
5
5
5
9
13
others
HEATER POWER
kW
6
7.1
7.7
9.7
15
21.7
26
PUMP MOTOR POWER
kW
11
15
18.5
18.5
22
30
37
MAX PUMP PRESSURE
MPa
16
16
16
16
16
16
16
MACHINE DIMENSION(LxWxH)
Mm
3.7 X 1.1 X 1.5
4.2 X 1.2 X 1.7
4.62 X 1.3 X 1.7
5.42X1.48X1.72
6.0 X 1.47X 1.83
6.42X1.68X2.0
7.0X2.0X2.3
MACHINE WEIGHT
T
3
3.8
4.5
6
7.2
9.2
11.3
Oil Tank Capacity
cm³
300
350
400
500
600
700
900
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
