Brand Name:
Forsun
Work Size:
1300*2500mm
Controller:
Siemens Control System
Motor:
Siemens AC Servo Motor
Spindle:
9.0kw Hsd Spindle
Weight:
1800kg
Dimension(L*W*H):
3.75*2.28*1.95m
Controlling Mode:
CNC
Feed Mode:
Mechanical
Spindle Number:
Single-Spindle
Spindle Layout:
Vertical
Certification:
ISO
Product Description

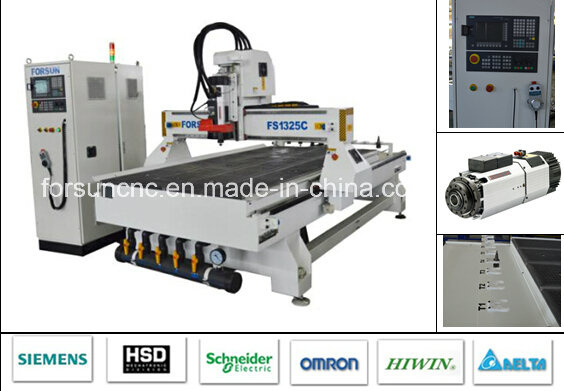

CE certificated automatic CNC router machine
Applicable Industry and materials:
1) Mould: wood,wax, wood, gypsum,foams,wax 2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. 3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, ABS 4) Decorate industry: Acrylic, PVC, MDF,plastic and soft metals such as copper, aluminum
Machine configurations of wood carving router machine
1) Working area: 1500mm*3000mm*200mm 2) T-Slot Vacuum Table 4) SIEMENS control system from Germany 5) SIEMENS servo motor and drives from Germany 6) 9.0 KW HSD air cooling spindle from Italy 7) DELTA inverter made in Taiwan 8) Automatic tool changer in line with 8 position 9) ArtCam software 10) OMRON Switch from Japan 11) Taiwan HIWIN Linear guide 12) TBI ball screw 13) 3PH 220V 60HZ / 3PH 380V 50HZ 14) Plywood case package
Option item of CNC Carving Engraving machine
1. Water cooling or Oil-free air-cooled vacuum pump
2. Dust collector system
3. Oil mist cooling system (We suggest if processing on hard material)
4. Original type3 software from France
5. Carousel type auto tool changer
6. Laser light curtain safety system
Technical parameter of CNC Carving Engraving machine
Technical Data
NO
Description
Parameter
1
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
2
X,Y,Z Repositioning Accuracy:
±0.03mm/300mm
3
Max. Rapid Travel Rate
80000mm/min
4
Max. Working Speed
45000mm/min
6
Spindle Speed
0-24000RPM
7
Command Language
G Code
8
Flash Memory
512M
9
Collet
ER32
10
X,Y Resolution
<0.03mm
11
Running Environment Temperature
0 - 45 Centigrade
12
Relative Humidity
30% - 75%
13
Packing Size
3520*2280*2500mm
14
N.W.
1500KG
15
G.W.
1700KG

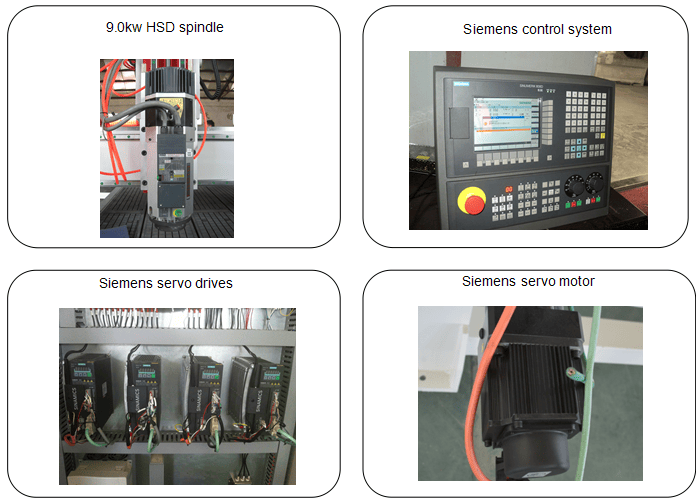

Machine spare parts picture

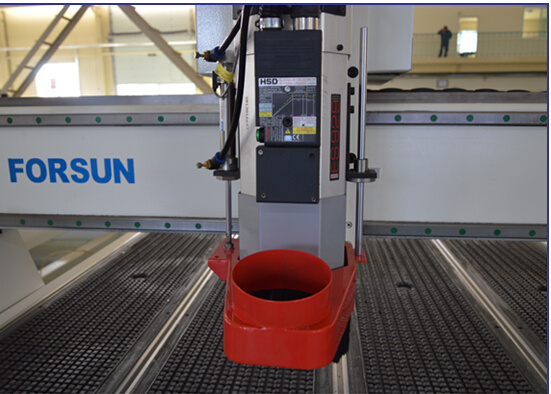

1.9.0kw HSD spindle original famoue brand from Italian,also can choose Kolumb spindle

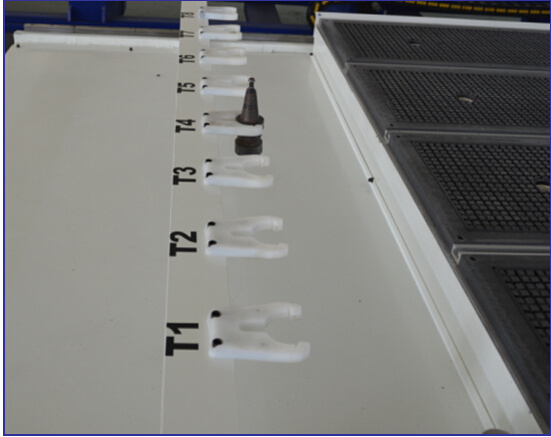

2.Auto tool changer in line of woodworking cnc router with atc
3.SIEMENS servo and drives system from Germany
0086-18453185512 PleaseSend an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
