| Price: | US $ 0.01/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | STD 1260C 25mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Grade: | 1260c |
| Standard Size: | 7200X610X25mm, 7200X600X25mm |
| Density: | 64-160 Kg/M3 |
| Delivery Time: | Usually for Regular Order Within 14 Days |
| Shape: | Ceramic Fiber Blanket |
| Manufacturing Technique: | Spray Silk Rug |
| Kind: | Ordinary Ceramic Fiber |

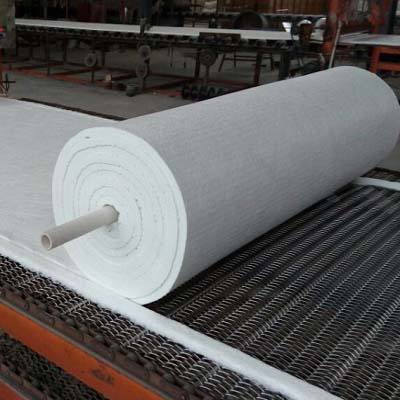

Ceramic Fiber Blanket on SALE
NR high temperature ceramic fiber blankets are made from selected high quality spun ceramic fiber, double sides mechanically needling makes it high strength and surface integrity ,NR ceramic fiber blanket have a good character of superior insulating performance, light weight, flexibility, resilience and chemical resistance, low thermal conductivity, low heat storage.Ceramic fiber boards are available in a variety of temperature ratings, densities, thicknesses, widths and lengths, and custom vacuum formed shapes.
Common Grade: Max service temperature 1100C[1800F] Standard Grade: Max service temperature1260C[2300F]
High temperature pipe and casting mold insulation.
Repair, insulation and linings for furnaces, kilns, ovens, generators, reformers, boilers,
Duct and turbine insulation- Forging furnaces linings- High-temperature seals and gasket
Furnace door seals -Glass furnace crown insulation -Heat processing equipments
Car bottom furnace lining insulation -Fire protective insulation or linings
Double needled blanket -Low density -Low thermal conductivity -Shorter heat up and cool down time
Resilience and resistance to thermal shock -Flexible and easy to cut and install
Contain no organic binder -Asbestos free
Standard Density : 4, 6, 8 lbs./cu. ft. (64, 96, 128 kg/m3)
Standard Thickness: 1/2, 1, 1-1/2, 2 (12.5mm, 25mm, 38mm, 50mm)
Standard Width: 24 and 48 (610mm and 1220mm)
Standard Packaging: In plastic bags and then in cartons
Delivery Time: General condition within 15 days
| Grade | 1260Blanket | 1430Blanket | 1500Blanket | 1600Blanket | ||
| ClassificationTemperature | ° C | 1260 | 1430 | 1500 | 1600 | |
| Recommend UsingTemperature | ° C | 1100 | 1250 | 1300 | 1580 | |
| MeltingPoint | ° C | 1760 | 1760 | 1760 | 1760 | |
| Fiber Diameter | μm | 3.5 | 3.5 | 3.5 | 3.1 | |
| Fiber Length | mm | 250 | 250 | 150 | 100 | |
| Shot Content(>212 μm) | % | 18 | 18 | 15 | 0.11 | |
| Chemical Composition | A l 2 O 3 | % | 47.1 | 35 | 40 | 72 |
| Si O 2 | % | 52.3 | 49.7 | 57.8 | 28 | |
| Zr O 2 | % | - | 15 | - | - | |
| Cr 2 O 3 | % | - | - | 2.0 | - | |
| Bulk Density | k g / m 3 | 96; 128; 160; | 128 | |||
| Thermal Conductivity W/(m. K) Density in 128kg/m 3 | 400 | ° C | 0.10 | |||
| 600 | ° C | 0.15 | 0.14 | 0.13 | 0.09 | |
| 800 | ° C | 0.24 | 0.23 | 0.21 | 0.13 | |
| 1000 | ° C | 0.29 | 0.27 | 0.19 | ||
| Available Size | mm | Length x Width x Thickness | ||||
| 7200x610x6 ; 7200x610x12.5; | ||||||
| 7200x610x20; 7200x610x25; | ||||||
| 3600x610x38; 3600x610x50; | ||||||
