| Price: | US $ 0.01/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | NRCB-96 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Grade: | 1260c-1430c |
| Standard Size: | 7200X610X25mm ; 3600 X610 X 50mm |
| Density: | 64-160 Kg/M3 |
| Delivery Time: | Usually for Regular Order Within 14 Days |

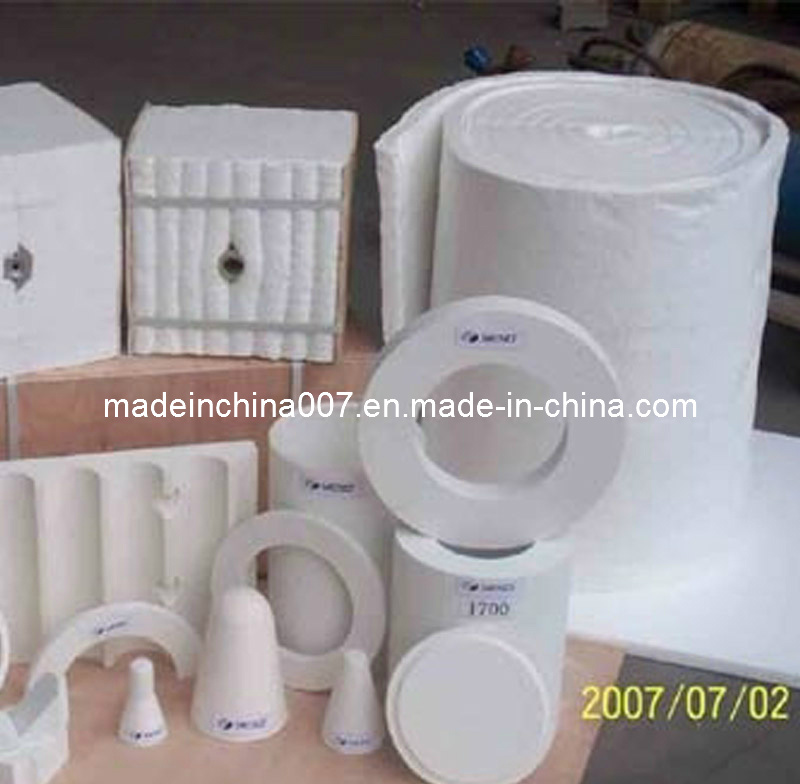

2300F-2600FCeramic Fiber Blanket
Spun ceramic fiber blanket are lightweight and thermally efficient, resulting in a material that possesses the advantages of low heat storage and complete resistance to thermal shock. Used in a variety of heat processing applications, the ceramic fiber blanket is produced from high strength spun ceramic fibers and is needled to provide exceptional handling strength. The ceramic fiber blanket is completely inorganic and is available in a variety of densities, thicknesses, widths and temperature ratings:
Typical Grades and Dimensions
Commercial grade: service temperature 1800°F
High-Purity grade: service temperature 2300 °F
Zirconia grade: service temperature 2600 °F
Standard Densities: 6, 8 Ibs./cu. ft. (96, 128 kg/m3)
Standard Thicknesses: 1/2", 1", 1-1/2",2"
Standard Widths: 24" and 48"
Standard Packaging: Cartons or bags
Note: Other densities available per special request
Ceramic Fiber Blanket - Typical Applications
Furnace repair
Furnace, kiln, reformer and boiler linings
Furnace door linings and seals
Reusable insulation for steam and gas turbines
High-temperature kiln and furnace insulation
Primary reformer heater insulation
High temperature gasketing
Expansion joint seals
Glass furnace crown insulation
Field steam generator lining
Nuclear insulation applications
Thermal reactor insulation
Flexible high temperature pipe insulation
Investment casting mold wrapping
Removable casting mold wrapping
Removable insulating blankets for stress relieving welds
Pressure and cryogenic vessel fire protection
Soaking pit seals
High temperature filtration
Incineration equipment and stack linings
| Grade | 1260Blanket | 1430Blanket | 1500Blanket | 1600Blanket | ||
| ClassificationTemperature | ° C | 1260 | 1430 | 1500 | 1600 | |
| Recommend UsingTemperature | ° C | 1100 | 1250 | 1300 | 1580 | |
| MeltingPoint | ° C | 1760 | 1760 | 1760 | 1760 | |
| Fiber Diameter | μm | 3.5 | 3.5 | 3.5 | 3.1 | |
| Fiber Length | mm | 250 | 250 | 150 | 100 | |
| Shot Content(>212 μm) | % | 18 | 18 | 15 | 0.11 | |
|
Chemical Composition |
A l 2 O 3 | % | 47.1 | 35 | 40 | 72 |
| Si O 2 | % | 52.3 | 49.7 | 57.8 | 28 | |
| Zr O 2 | % | - | 15 | - | - | |
| Cr 2 O 3 | % | - | - | 2.0 | - | |
| Bulk Density | k g / m 3 | 96; 128; 160; | 128 | |||
|
Thermal Conductivity W/(m. K) Density in 128kg/m 3 |
400 | ° C | 0.10 | |||
| 600 | ° C | 0.15 | 0.14 | 0.13 | 0.09 | |
| 800 | ° C | 0.24 | 0.23 | 0.21 | 0.13 | |
| 1000 | ° C | 0.29 | 0.27 | 0.19 | ||
|
Available Size |
mm |
Length x Width x Thickness | ||||
| 7200x610x6 ; 7200x610x12.5; | ||||||
| 7200x610x20; 7200x610x25; | ||||||
| 3600x610x38; 3600x610x50; | ||||||
