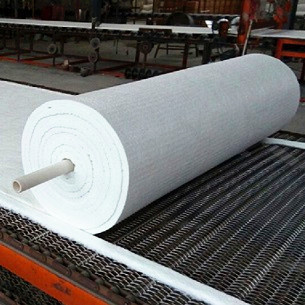

Ceramic Fiber Blanket Insulation

Prod Model:	STD, HP, HA, HZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Grade:	1260c-1430c-1600c
Standard Size:	7200X610X25mm ; 3600 X610 X 50mm
Density:	64-160 Kg/M3
Delivery Time:	Usually for Regular Order Within 14 Days
Shape:	Ceramic Fiber Blanket
Manufacturing Technique:	Spray Silk Rug
Kind:	Ordinary Ceramic Fiber

Product Description

High Temperature Thermal Ceramic Fiber Blanket

Spun ceramic fiber blanket are lightweight and thermally efficient, resulting in a material that possesses the advantages of low heat storage and complete resistance to thermal shock. Used in a variety of heat processing applications, the ceramic fiber blanket is produced from high strength spun ceramic fibers and is needled to provide exceptional handling strength. The ceramic fiber blanket is completely inorganic and is available in a variety of densities, thicknesses, widths and temperature ratings:

Typical Grades and Dimensions
Commercial grade: service temperature 1800°F
High-Purity grade: service temperature 2300 °F
Zirconia grade: service temperature 2600 °F
Standard Densities: 6, 8 Ibs./cu. ft. (96, 128 kg/m3)
Standard Thicknesses: 1/2", 1", 1-1/2",2"
Standard Widths: 24" and 48"
Standard Packaging: Cartons or bags

Note: Other densities available per special request

Ceramic Fiber Blanket - Typical Applications
Furnace repair
Furnace, kiln, reformer and boiler linings
Furnace door linings and seals
Reusable insulation for steam and gas turbines
High-temperature kiln and furnace insulation
Primary reformer heater insulation
High temperature gasketing
Expansion joint seals
Glass furnace crown insulation
Field steam generator lining
Nuclear insulation applications
Thermal reactor insulation
Flexible high temperature pipe insulation
Investment casting mold wrapping
Removable casting mold wrapping
Removable insulating blankets for stress relieving welds
Pressure and cryogenic vessel fire protection
Soaking pit seals
High temperature filtration
Incineration equipment and stack linings

Grade			1260Blanket	1430Blanket	1500Blanket	1600Blanket
ClassificationTemperature		° C	1260	1430	1500	1600
Recommend UsingTemperature		° C	1100	1250	1300	1580
MeltingPoint		° C	1760	1760	1760	1760
Fiber Diameter		μm	3.5	3.5	3.5	3.1
Fiber Length		mm	250	250	150	100
Shot Content(>212 μm)		%	18	18	15	0.11
Chemical Composition	A l  2  O  3	%	47.1	35	40	72
	Si O  2	%	52.3	49.7	57.8	28
	Zr O  2	%	-	15	-	-
	Cr  2  O  3	%	-	-	2.0	-
Bulk Density		k g / m 3	96;  128;  160;			128
Thermal Conductivity W/(m. K) Density in 128kg/m 3	400	° C	0.10
	600	° C	0.15	0.14	0.13	0.09
	800	° C	0.24	0.23	0.21	0.13
	1000	° C		0.29	0.27	0.19
Available Size		mm	Length x Width x Thickness
			7200x610x6 ;  7200x610x12.5;
			7200x610x20;  7200x610x25;
			3600x610x38;  3600x610x50;
