North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
3mm-16mm
Thread:
M5, M6, 1/8, 1/4, 3/8, 1/2
Standard:
GB
Material:
Stainless Steel
Connection:
Male
Product Description
FEATURES
1. The materials ensure Anti-corrosion highly ,all of them are made from SUS316 expect the seal ring.
2. FKM is used as seal ring, which can ensure Anti-corrosion and acid resistance ,also can be used in high temperature.
3. The accessories are oil free and reach the Food Hygiene Law of People's Republic of China, which are applied widely in the range of industry such as food service industry, chemical industry and medical industry.

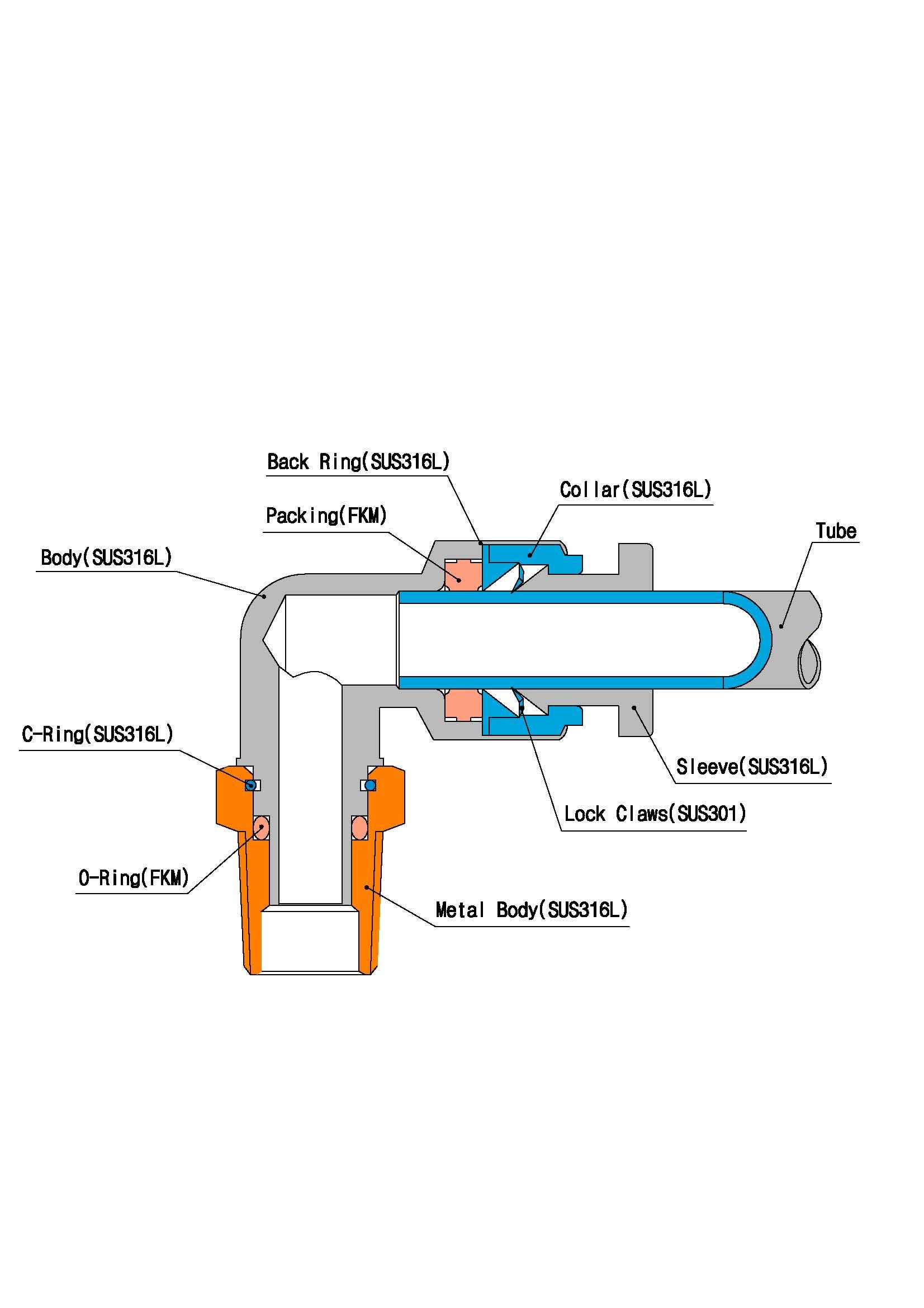

MATERIAL CONSTRUCTION METAL BODY: SS316 PUSH BUTTON: SS316 CLAWS: SS301 SEALS: FKM For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(R)
SSSC 4-M5
SSSC 6-03
SSSC 12-01
SSSC 4-M6
SSSC 8-01
SSSC 12-02
SSSC 4-01
SSSC 8-02
SSSC 12-03
SSSC 4-02
SSSC 8-03
SSSC 12-04
SSSC 4-03
SSSC 8-04
SSSC 16-03
SSSC 6-M5
SSSC 10-01
SSSC 16-04
SSSC 6-M6
SSSC 10-02
SSSC 6-01
SSSC 10-03
SSSC 6-02
SSSC 10-04
SPECIFICATIONS Operating Pressure-0.99 bar~15 bar Operating Temperature-20~200ºC ApplicationAir, vacuum, steam, drinking water and food Recommended Tubing Material: PA, PU, PTFE, FEP, PE TUBE TypesStraight, Elbow, Tee, X, Y, CapacityOver 10000pcs/month Marketing AreaAll over the world
FITTINGS ADVANTAGE
1) Easy to push in and pull out tubes.
2) Raw material is SS316L and seal FKM, fit for high temperature and corrosive environment.

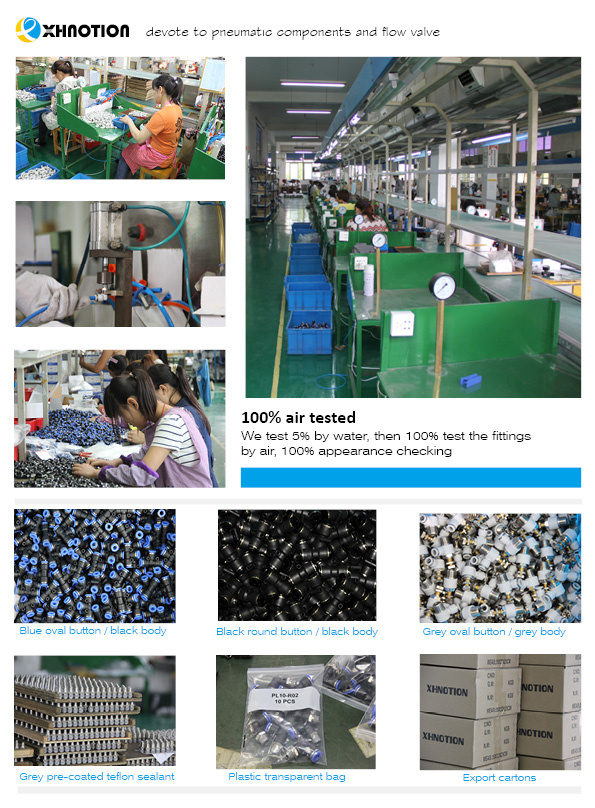

3) 100% tested no leakage.
4) Regular size is in stock, we support small quantity to be sold.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.

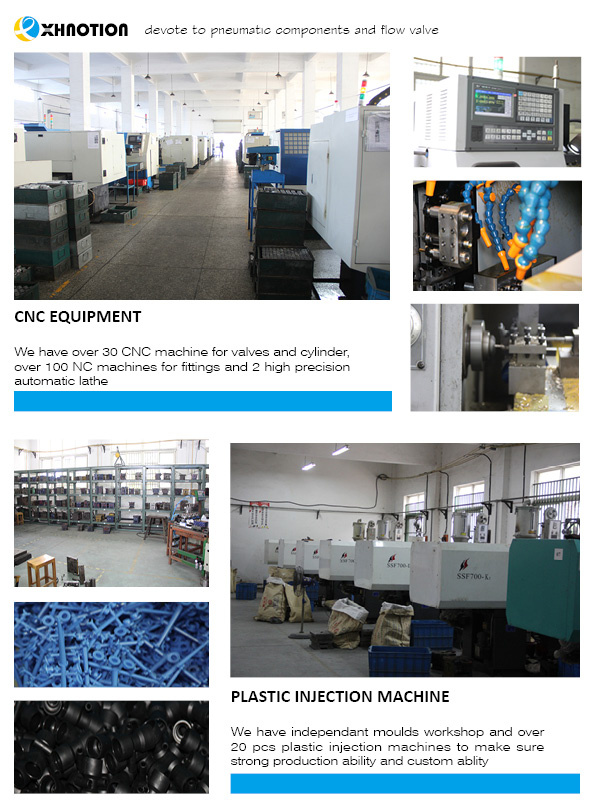

WORKSHOP SHOW WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing Transparent plastic bag + white small box + neutral carton + pallet Custom packaging are available, XHnotion brand packaging are available
Shipping : Export port: Ningbo or Shanghai, China Shipping way: by sea, by air, by courier Delivery time 3 days to 30 days depends on actual orders.
Payment Terms We accept T/T, L/C, Paypal, western union,etc.
Samples Policy For regular fittings below10 USD , free samples against your courier account or you pick up from us. For custom items, we will discuss by email.
Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
