Specifications: 1) Thickness: 5-20mm 2) Max. Width: 1, 220mm(Others could be also available according to your requirment) 3) Max. Length: 2, 440mm. 3, 000mm(Others should be also available according to your requirment)
Features:
1)Fire insulation: It is Class A non-combustible material
2)Waterproof and moistureproof
3)Heat insulation and sound absorption: Great thermal insulation performance since low thermal conductivity; Good sound insulation performance due to the high density.
4)Light and High strength
5)Economic and Beauty: With uniform color and surface, it can be used to building directly as interior an exterior wall partition, suspended ceiling, liner and so on.
6)Long service life
7)Easy processing: It can be cut, sawed, drilled, graved, painted, ceramic tile and wall paper pasted and so on.
8)Safe and harmless, cost-effective: It is 100% asbestos free and a typical green building material without formaldehyde, cinnamence, harmful dust and radiation produced during using
Application:
1. Internal and external wall body 2. Ceiling 3. Wall liner 4. Sound barriers 5. Composite wall panel 6. Furniture&toys moulding board 7. Aluminum plant 8. Furnace, electricity, insulation, heat insulation and other industrial boards 9. Access floor

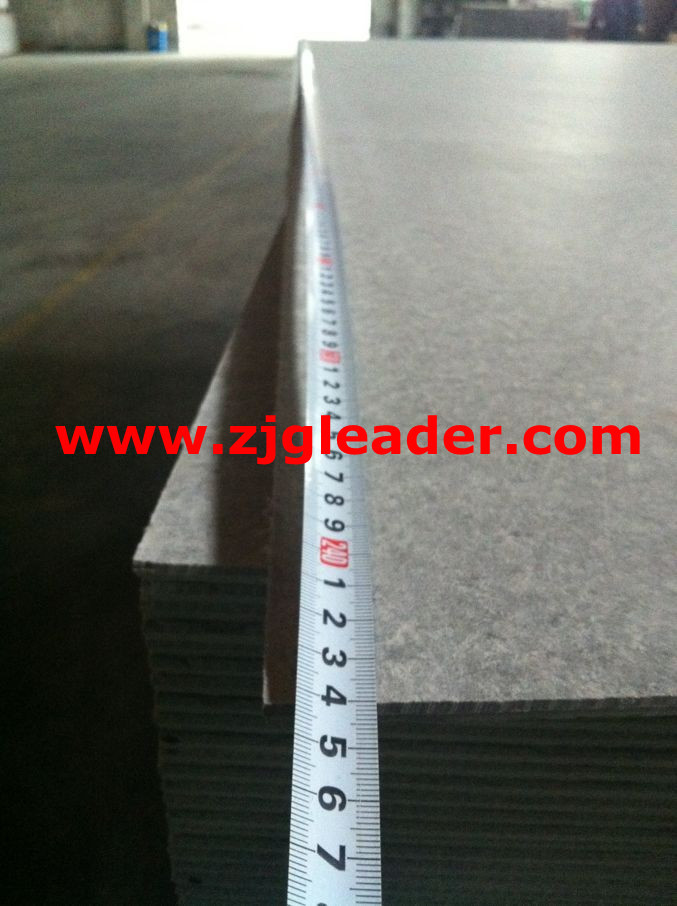

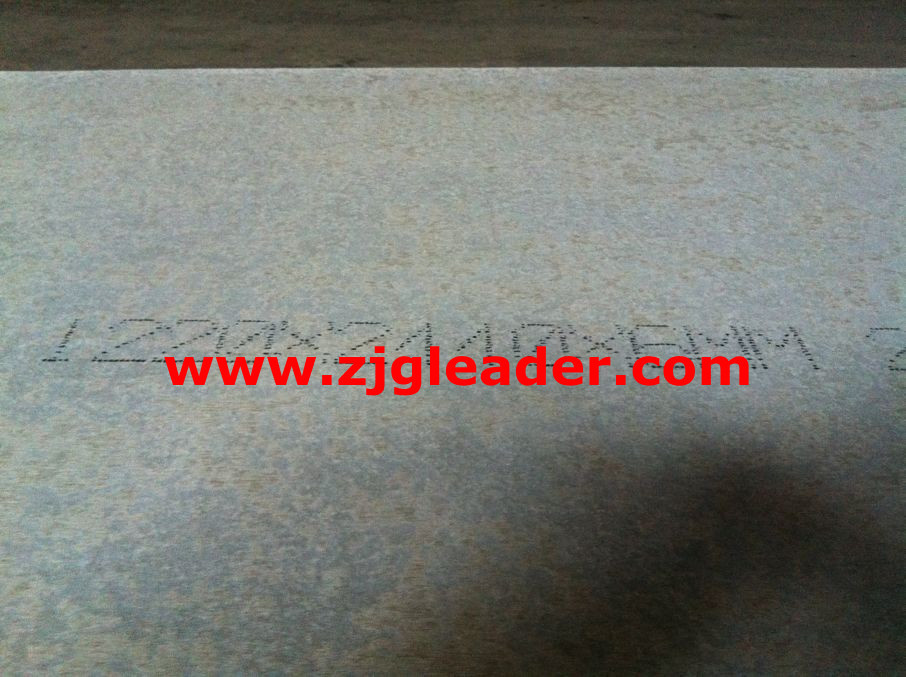

Photo:
Technical parameters:
Item Unit
Panel
Panel
Panel
Density(g/cm3)
0.95 ~ 1.10
1.10 ~ 1.25
1.25 ~ 1.40
Horizontal folding endurance Mpa
10.5
11-16
20.9
Vertical bending strength Mpa
8.55
11-13
17.9
Screw pull N/mm
72.1
86.3
109.0
Coefficient of heat conductivity W/m.k
0.175
0.168
0.150
Drying shrinkage rate %
0.066
0.069
0.089
Bulking rate %
0.193
0.195
0.199
water-content rate %
2.7
3.1
3.3
Rate of moisture absorption (48 hours) %
5.21
6.37
9.21
Frost resistance
No chapping and slip cracking occur after 25 times of frost-smelting circulation under the tempeature of 25°C in which freezing lasts 1.5 hours and smelting 0.5 hour for each time.
Inflammable
Inflammable class-A(A1) material
Zhangjiagang Leader Import & Export Co., Ltd. is the key member of Leader Group Industry Co., Ltd., been dedicated to the R&D, manufacture and international trade of fire-proof material, ceiling and wall partition system since 2002. At present, we have our own factories in Zhangjiagang City.
The main products we manufacture and export as below:
A. MGO board
(Common board, Sanded board, Slurry board)
B. Ceiling
(Perforated acoustic panel, PVC ceiling, Mineral fiber ceiling)
C. SIP sandwich panel
(MGO+EPS/XPS+MGO, FCB+EPS/XPS+FCB, FCB+EPS/XPS+MGO)
D. Cladding
(Pattern: Impression, Tile, Face brick, Timber grain, Sand rock, Broken stone, Broken brick, Ceramic brick, ODD brick, Culture stone)
E. Fiber cement board/Calcium silicate board
F. Melamine MGO board
(HPL, UV, Plywood)
G. Stone coated metal roof tile
(Angle hip, Eave flashing, Valley tray, Box barge cover)
H. Accessories
(Screw, Tape, T-grid, Steel stud)
Since 2007, we have invested over $10 million with 6 workshops and 6 automatic production lines in the production of construction materials, annual output is over 20, 000, 000 sqm. " Leader" brand of products are welcomed in Southeast Asia, the US, the Middle East and other countries and regions.
We produce your orders following ISO 9001: 2008 and CIS management guidelines. We constantly insist on the principle-quality and customers first that no substandard products can be delivered to clients.
Welcome to visit our company! For further information, pls contact us now, thank you!
