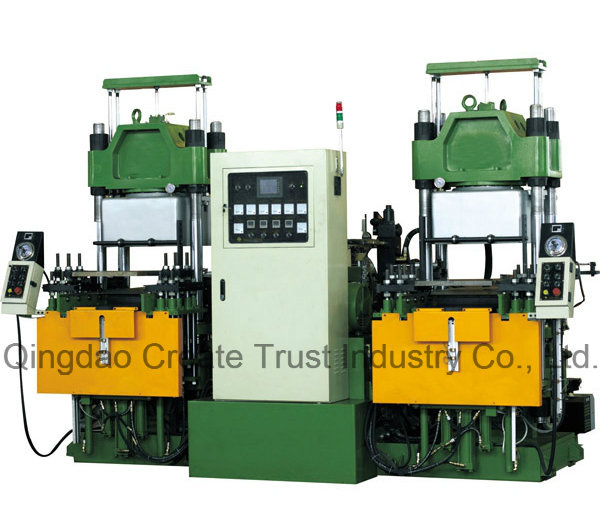

Usage :Vacuum compression moulding machine for rubber is an advanced hot-pressing molding equipment for rubber products, with a national patent, its structure is compact with wide applicability, high efficiency and high yield. Especially it is suitable for the rubber model products of complex shapes, exhaust difficultly, difficult to molding and also for rubber products which are easy to produce bubble. Among them, "Frequency conversion microcomputer control Vacuum vulcanizing press" and "vacuum vulcanizing press for butyl rubber medical stoppers" were established as National Science and Technology Projects.
FEATURES
1.- These series products are high efficiency, energy-saving, stable and reliable.
2.- Standard configurations are full computer, the electro-hydraulic proportional control system, high degree of automation. It can provide special configuration for users with computerized frequency conversion power- saving control system of independent intellectual property rights.
3.-Using large screen LCD to show parameters, the interface is intuitive and easy to operate. Heating plate temperature control adopts computer PID control with high accuracy.
4.-Using electro hydraulic proportional control system with high efficiency, low noise, long service life .
5.- Adopting the world's top brand vacuum components, vacuum system is high efficiency and reliable.
6.-With fast mould-opening &closeing, production efficiency is high.
7.-With automatic mould in &out mechanism, 3RT injector mechanism, low labor intensity and no-damage to the mould.
Parameters below :
ype
100T
200T
250T
300T
500T
Working Table(mm)
400*400
503*508
600*600
650*650
650*740
Piston Diameter(mm)
250
355
400
450
560
Motor HP(KW)
10HP
10HP*2
10HP*2
10HP*2
15HP*2
Vacuum Pump Motor(KW)
4HP
4HP
4HP
4HP
4HP
Total Power(KW)
20
28
30
30
32
Service of us :
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
