Weight:
5 Ton
Structure:
Deep Hole Drilling
Layout:
Horizontal
Controlling Mode:
CNC
Automatic Grade:
Automatic
Precision:
High Precision
Number Of Shaft:
Single
Product Description
Product application Deep hole drilling machines are mainly used in the industries as following: Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc. -Hydraulic machinery industry: valve, distributor and pump,etc.. -Automotive industry: cylinder, fuel supply system and other parts -Aerospace industry: the propeller, landing gear and other parts. -Chemical and generator industry: heat exchange parts.

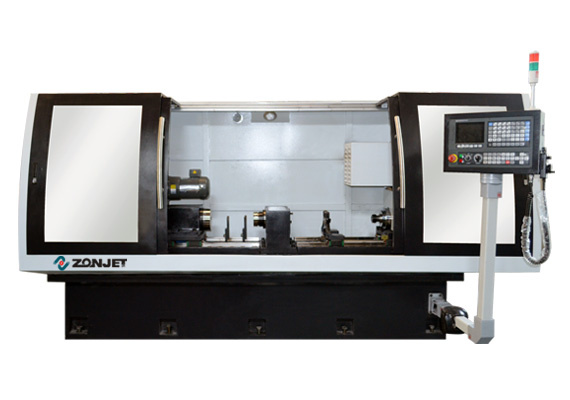

the machine is designed and developed for processing bar shaft products. uniaxial biaxial, four axis are optional according to use's demand. three jaw chunk or elf drive cone disc are adopted, toprovide the most appropriate solutions to users.
ITEM
ZJZ500
Processing capacity
Machining aperture range
Φ4~φ30mm
Maximum drilling depth
500mm
The maximum length of workpiece
600mm
spindle
Qty.of spindle
1
Spindle centerline spacing
200mm
Maximum speed of spindle
4500rpm
Spindle centerline spacing
100mm/min
Spindle fast moving speed
1000mm/min
power
Swpindle motor
7.5kw
Total power
18kw
Cooling system
Pressure range of cooling liquid
2~10mpa
Flux range of cooling liquid
0~200l/min
Machine tool
Floor area of machine tool(length*width)
4300*2700*1900mm
weight
5ton
Company Profile Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet. Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5, 000 square meters, including 3, 000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users.
Main products: Three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries. After years of development and improvement, Zonjet is the leading level in domestic industry for the machining precision, stability, humanized design and technical performance.
