Y Axis:
Rack and Pinion
Structure:
25mm Square Tube
Spindle:
4.5 Kw Liquid-Cooled with 24, 000rpm, VFD
Resolution:
<0.003mm
Max. Power Consumption:
5kw
Drive Type:
Yaskawa Servo Motor
Type:
Furniture Manufacture Equipment
Working Size:
1300*2500
Axis Drive System:
Rack and Pinion
Certificate:
CE
Application:
Stone Industry
Current:
AC
Function:
Cutting, Line Engraving
Automation:
Automatic
Control:
CNC
Application Material:
Marble, Granite,Bluestone, Blackstone etc.
Product Description

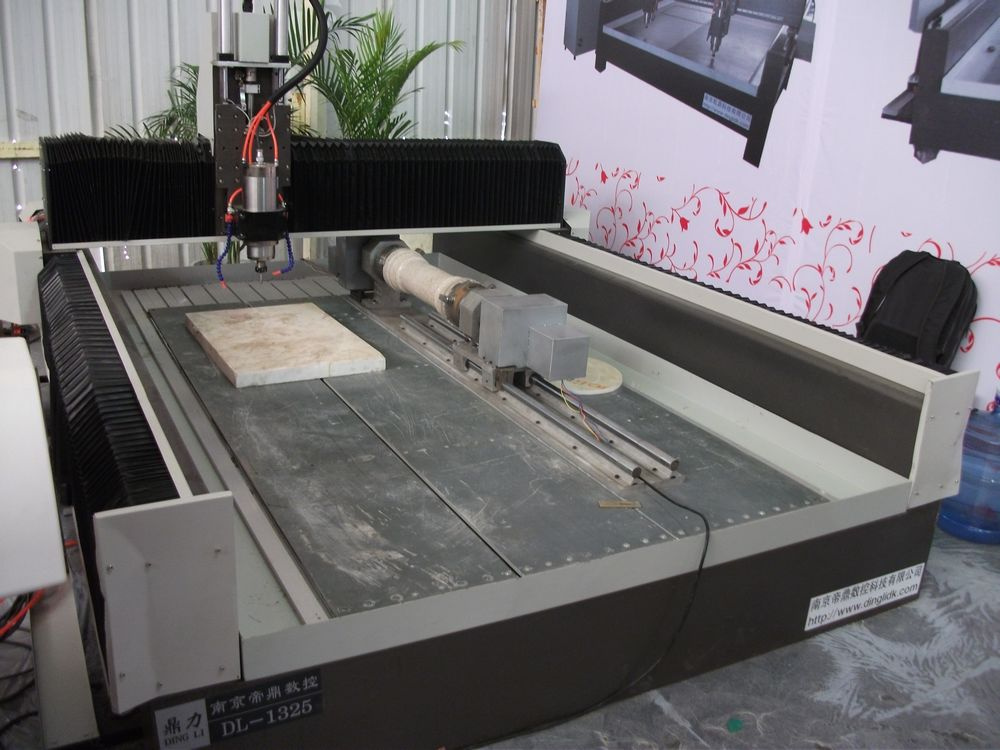

CNC cutting and carving stone machine with CE DL-1325
Features
· 20× 30cm, 1cm thickness seamless welded steel structure, strong, firmness,
· Brushless 4.5 kw water cooled spindle with 24, 000rpm, VFD, high speed.
· Imported 2.5cm square guide rail with flange sliding block, rack and gear, stability.
· Double engine driving on Y axis, powerful, steady.
· Gear Connection between X axis and Y axis.
· Auto-feeding blade, restore from power off, continuation on break point.
· Double tool cooling system, effectively raising tool life.
CNC Stone Engraving Machinery DL-1325 is used for Granite, marble, artificial stone, tombstones, milestones, ceramic tile, bluestone, sandstone and other stone carvings, and copper, aluminum, iron and other metal.
CNC cutting and carving stone machine with CE
Picture details:
Model
CNC Stone Engraving Machine DL-1325
Working Zone: (X Y Z)
1300×2500×300mm
Table Size (W×L)
1350×2700mm
Resolution
<0.003mm
Cutting Accuracy
±0.02/300mm
Repositioning Accuracy
±0.01mm
Axis Drive System (X Y Z)
Rack and pinion
Drive Type
Stepper motor
Spindle
4.5KW liquid-cooled with 24,000rpm
Max. Working speed
30,000mm/min
Collets Type
6mm/8mm/12.7mm
Command Code
G*.u00*.mmg*nc.,HPGL
Operational System Software
Type 3/Artcam
Control System
NC studio
Interface
PCI
Max. Power Consumption
5.0KW
Voltage
AC220V±10%/50~60Hz
Standard Work Surface
Aluminum profiles
Weight
1500kg±10%
Warranty
12 Months
