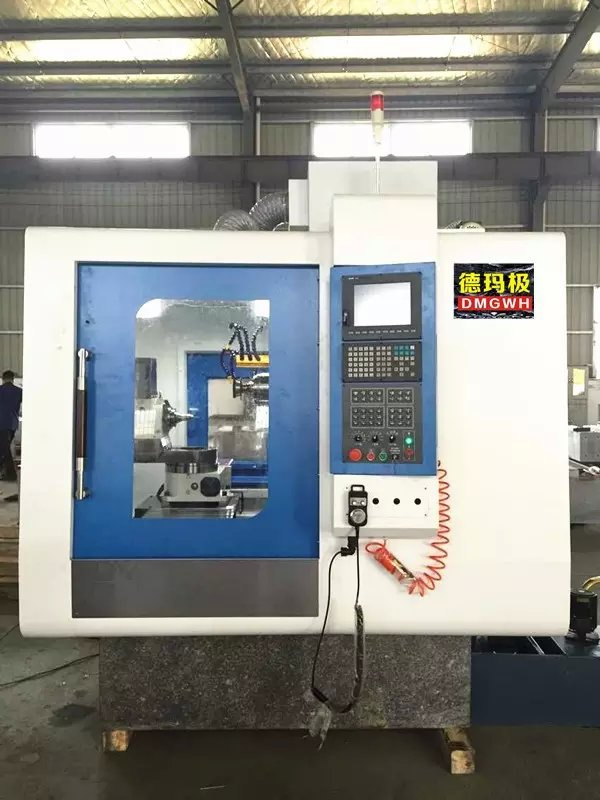

CNC Engraving Machine Mold Milling Machine

Prod Model:	DMG-6X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size:	300*250*150mm
Power Of Spindle:	11kw
A Axis Rotation:	360
B Axis Rotation:	270
Motor And Driver:	Janpan Yaskawa Servo Motor
Control System:	Syntec Controller
Type:	Tool Milling Machine
Object:	Tool
Structure:	Bed type
Controlling Mode:	CNC
Automatic Grade:	Automatic
Precision:	High Precision

Product Description

CNC Engraving Machine Mold Milling Machine

Range of workpiece	the  Max diameter of champing workpiece	20mm
	the Min diameter of  champing workpiece	3mm
	the Max length of champing workpiece	200 mm
	The max diameter of manual BT40 clamp workpiece	32mm
	diameter of granding	0.5 mm-20 mm
lathe bed	natural granite (hardness) 7.5	1600*1700*500(can be optional with imported granite: Indian red or black gold sand)
X.Y AXIS Dragging plate	XY :natural granite (hardness) 7.5
working size	X axis	300 mm
	Y axis	250mm
	Z axis	150 mm
	accuracy of Positioning	0.001 mm
	repeat accuracy of Positioning	0.001 mm
	Rapid traverse (X/Y/Z)	15m/min
Workpiece clamp knife A axis	axis A  rotation Angle is 360 °	360°
	Start the clamping load/minimum pressure	4kg/cm²
	Minimum degree accuracy 0.001 °	0.001°
spindke rotation B axis	B axis rotation Angle 270 °	270°
	Minimum degree accuracy 0.001 °	0.001°
(double) grinding wheel spindle	power of spindle	11kw
	speed of grinding wheel spindle	3000-12000rpm
	max diameter of grinding wheel	80mm-150mm
	Gear wheel number	1-6
motor and draver	X axis	1.3kw
(Japan yaskawa)	Y axis	1.3kw
	Z axis	1.3kw
	A axis	0.75kw
	B axis	0.75kw
	cooling motor	2HP
	cycle motor	1HP
	Automatic lubrication motor	1/8HP
linear guide (P4)	X axis 35 square linear guide with heavy load	1000MM,2pcs
(taiwan PMI)	Y axis 35 square linear guide with heavy load	900MM,2pcs
	Z axis 30square linear guide with heavy load	700MM
	high precision worm gear shaft  for A axis	200
	Bearing reducer HD65 for B axis	HD65
Oil mist collector		1 set
The spindle water-cooled pump		1 set
controller	SYNTEC controller of Taiwan new generation system, ISO standard G code programming, grinding self-developed software
size of machine	capacity of machine	18.0KW
	volume of cooling tank	400L
	outsize of machine	width 2350×1650×2100mm
	gross weight	6000kg
processing object	Processing content standard milling cutter, drill, reamer, carpentry knives, carving knife series, a series of high speed steel, and other kinds of standards Processing hard alloy, high speed steel material, etc
processing  material	Hard alloy, high speed steel etc

five axis tool grinder milling machine with high precision, precision grade AA, 15 kw strong power , the most suitable for processing 3.0-20 mm alloy milling cutter. Minimum 0.6 MM can be processed, maximum processing 32 MM. With the probe can be rapid processing of non-standard cutting tools.
X6 five-axis spindle rotation tool grinding machine performance
1, the whole galaxy black granite base, high rigidity, low vibration, strong load guide rail, to ensure easy heavy grinding.
2, direct drive motorized spindle, the dynamic balance is wonderful, 15 kw power strong, easily grinding 20 mm alloy cutting tools.
3, with the domestic only can clamping 40 MM handle high precision power dividing head, pneumatic, manual BT50 handle unique clamping dual-use, oscillating precision can reach 0.002 MM.
4, the double probe design idea, grinding wheel and the cutting tool can automatically probe, software debugging tool can be finished in 15 minutes.
5, can accurate rapid processing flat knife, cutter, ladder cutting tools, woodworking tools, ball head, round nose cutter, drill, molding tool knife mold pieces and complex, quality can compare with imported grinding machine.
working sample
