Max.Loading Capacity:
5 Ton
Structure:
Horizontal Drilling Machine
Layout:
Horizontal
Controlling Mode:
CNC
Automatic Grade:
Automatic
Precision:
High Precision
Product Description

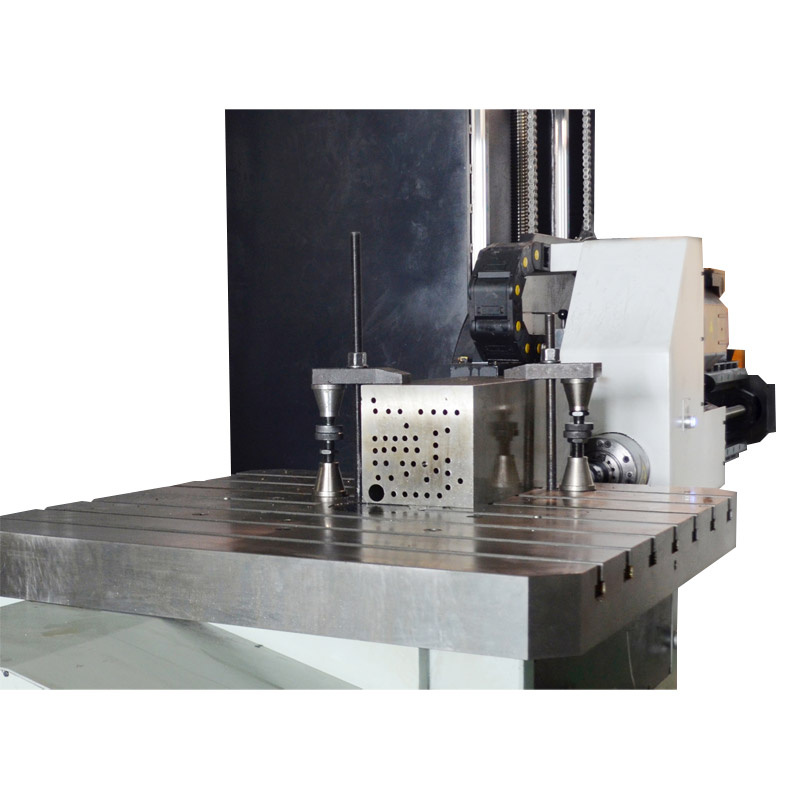

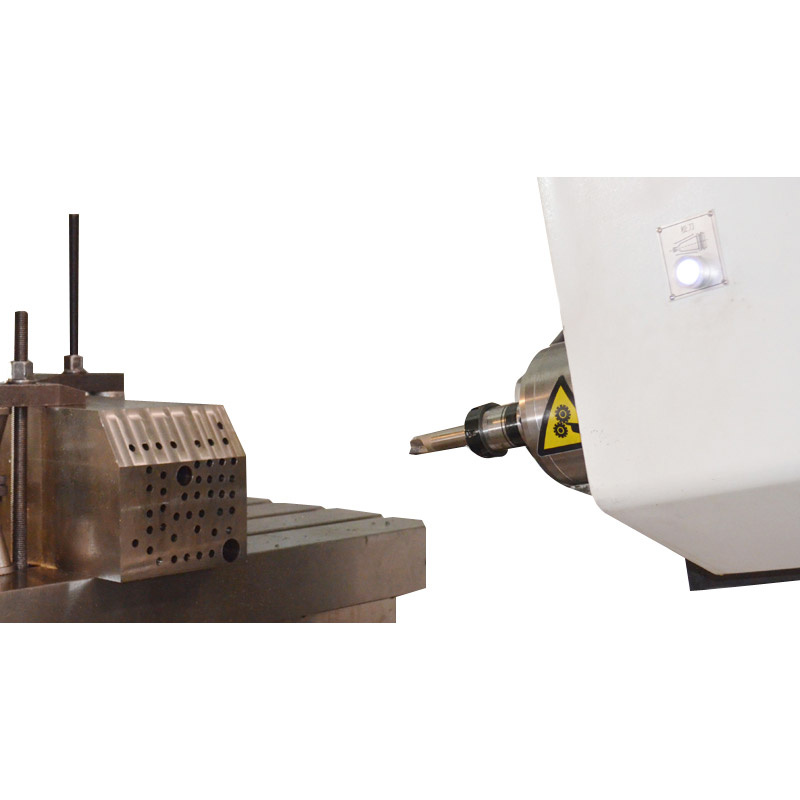

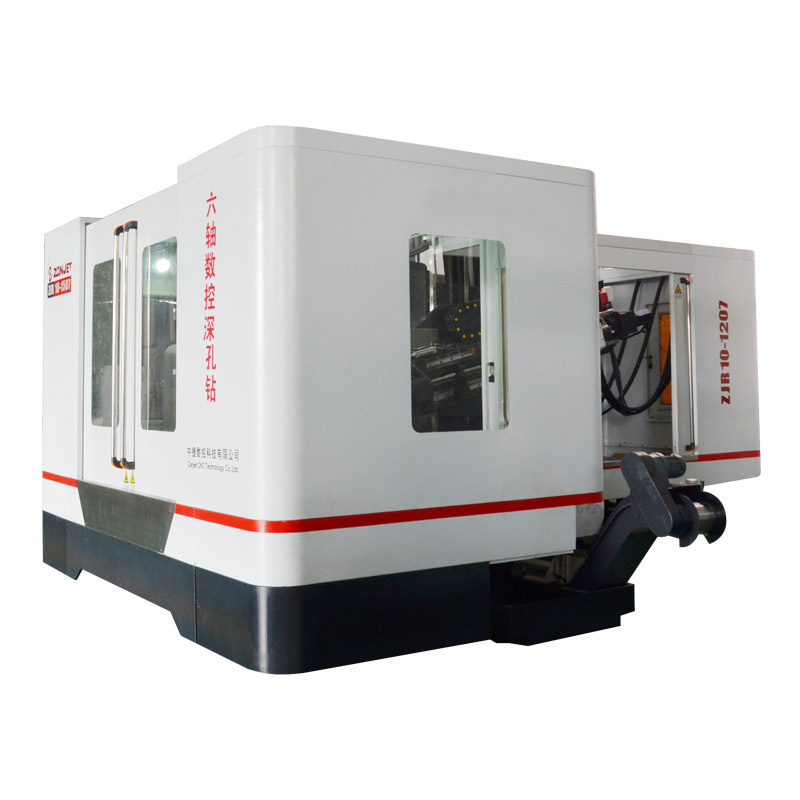

ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level. 1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service. 2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance. 3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately. 4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result. 5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process. Technical Specifications of ZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool
Items
ZJR10-1207
Processing Capacity
Diameter of the Hole for Gun Drill
3~30 mm
Maximum Depth of the Hole for Gun Drill
1000 mm
Processing Range
(X)Processing Range (from Left to Right) of the Working Table
1200 mm
(Y) Processing Range of Sliding Table
700 mm
(Z) Processing Range of Column
500 mm
(A)The Rotary Angle of Ram
15, 25The Main Axis Turns upward 15 degrees, and down to 25 degrees
Main Axis
Taper Hole of Main Axis
BT40
Maximum Speed of Main Axis
4500 rpm
Power
Main Axis Motor
7.5 kw/11 kw
X X Axis Servo Motor
22 N.m
Y Y Axis Servo Motor
30 N.m
Z Z Axis Servo Motor
30 N.m
W W Axis Servo Motor
12 N.m
A A Axis Servo Motor
22 N.m
B B Axis Servo Motor
30 N.m
Total Power
65kw
CNC Index Table
Burdening
5 ton
(×)Measurement
1000×1000 mm
Cooling System
()Pressure Range of Cooling Liquid
2~15 MPa(Set 2~9 MPa)
()Flux of Cooling Liquid
6~85 L/min
Measurement & Weight
(×)Floor Area of Machine Tool(Length*Width)
6500×5500 mm
Maximum Height of Machine Tool
3000 mm
Wight of Machine Tool
16ton
System
CNC System
FANUC 0i-MD
Milling Function
Milling Range
1400mm
Due to the continuous improvement of products, specifications and pictures are for reference only. For details, please visit our website: http://www.zonjet.com
