Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Semi-Closed Loop Control
Performance Classification:
Economical CNC Machine Tools

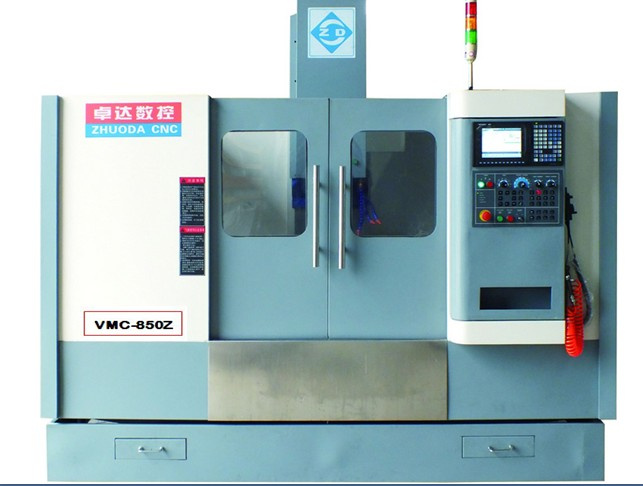

Product Description
Characteristic:
Herringbone design of the column and the widen skip distance improves the rigidity of the column.
The Z-axis equipped with built-in weight and high torque AC servo- actuator for heavy cut and high-speed processing.
Also the Z-axis equipped with Nitrogen counter balance system to eliminate the vibration produced in the thumper drive processing.
Item
VMC-850Z
VMC-1060Z
Worktable
Worktable Size
mm
500*1000
600*1300
T-slot(slot No. -size*space)
mm
5-18*90
5-18*100
Capacity
Kg
450
800
Travel
X axis
mm
800
1000
y axis
mm
500
600
Z axis
mm
500
600
Spindle center to colum slide
mm
560
655
spindle nose to worksurface
mm
110-610
70-670
Spindle
Taper hole
BT40
BT40
Spindle speed range
rpm
8000
8000
Power
KW
7.5
11
Feed
Cutting speed
mm/min
1-10000
1-10000
Rapid traverse speed
mm/min
x/y: 24 z: 15
x/y: 24 z: 15
Accuracy
Setting accuracy
mm
± 0.005/300
± 0.005/300
Repeat setting accuracy
mm
± 0.003
± 0.003
Other items
Pressure required
kgf/cm
6.5
6.5
Power supply capacity
KVA
15
20
CNC weight
Kg
6500
8300
Tool magazine
Type
Carousel/Turntable
Carousel/Turntable
Specification
BT40, CAT40, DIN40
BT40, CAT40, DIN40
Tool changing time
Sec.
7/2.5
7/2.5
Tool capacity
Put
16/20/24/30
16/20/24/30
Maximum tool size
mm
Φ 90/Φ 80/300
Φ 90/Φ 80/300
Maximum tool capacity
Kg
8
8
Chengdu zhuoda numerical control technology Co., Ltd is a professional manufacturer of different types of CNC mahining centre, integrating development and production together. Our main product include vertical CNC machining centre, vertical CNC milling machine, gantry CNC maching, 4axes CNC machine cntre and 5 axes CNC machine centre.
Chengdu zhuoda was establed in 2006, and after 6 years' development, Chengdu zhuoda has build a long-term cooperative relationships with many stated-owned enterpries like ULVAC orient (chengdu)Co., Ltd, chengdu aorotech manufucturing Co., Ltd etc.
From now on, we have 48 employees and three office in sichuan province. We are not a big manufacturer, but we are a professional manufacuter. We firmly believe in the tenet of "Only be professional that we can be better, only be honest that we can go further", and welcome you to be our friend.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us and we will reply your enquiry within 24 hours. We are looking forward to forming successful business relationships with new clients around the world in the near future.
