| Prod Model: |
TR10030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure (Kn): |
1000 |
| Worktable Length: |
3000mm |
| Width: |
3575mm |
| High: |
2300mm |
| Throat Depth: |
400-410mm |
| Forging Forming Method: |
Mold Forging |

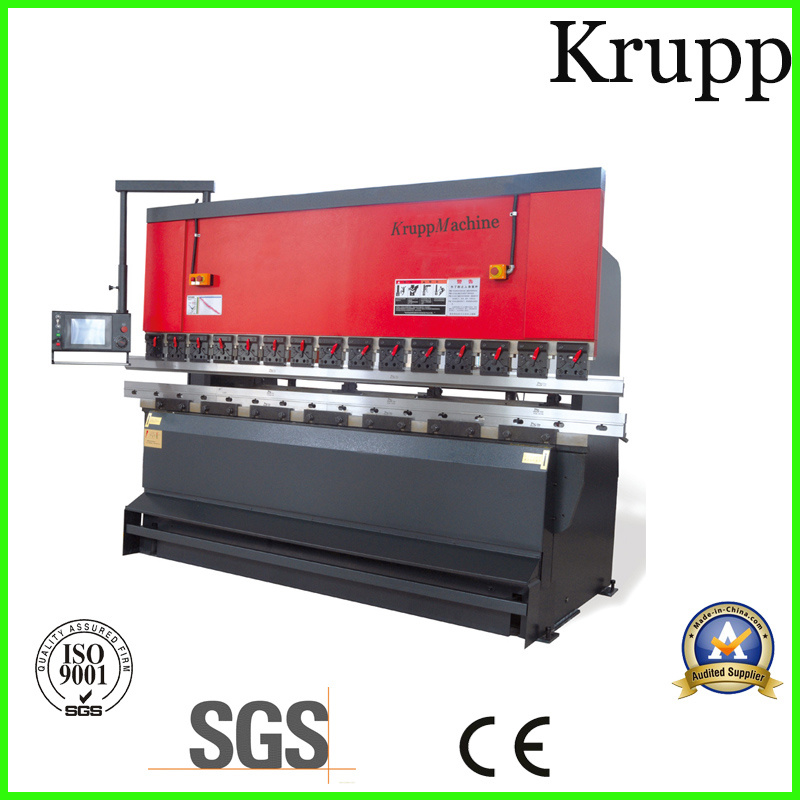

Product Description
1.Japanese NC89 control system with electronic hand wheel,simple and easy to operation.
2.Fast clamping plate can realize rapid loading and unloading of the mold, equip a fall-proof groove,safe and effective.
3.The entire drive unit is stored under the machine so that the table is lited for pressing,this design completely frees the frame pace for forming large enclosures.
4.The center pressure system prevent center sags in the product and insures extremely accurate forming.
5.Rigid mechanical synchronous,long-term using can still maintain a high precision
6.Standard configuration of the upper and lower die adopts whole heat treatment.
7.Unlike the conventional welded frame structure,the interlocked top table is free of warping or sagging and maintains the original accuracy over years.
8.The combination of bearing with sliding guides,and the roller guide system that allows long guides.This entirely eliminates side play or uneven movement by firmly holding the beam parallel at all times.
| Type: | TR10030 |
| Nominal force(Kn): | 1000 |
| Length of table(mm): | 3000 |
| Throat depth(mm): | 400-410 |
| Lateral plate distance(mm): | 2550 |
| Open height(mm): | 250-255 |
| Max open(mm): | 370-375 |
| Stroke(mm): | 100-102 |
| Rising velocity(mm/s): | 58/70 |
| Rate of descent(mm/s): | 47-55 |
| Bending speed(mm/s): | 10.8/13.0 |
| Main motor(Kw): | 7.5 |
| Length(mm): | 3090 |
| Width(mm): | 1460 |
| Height(mm): | 2300 |
| Control system: | JapaneseNC9: K series(KEYENCE screen+PLC
P series(Taiwan screen+
Panasonic PLC |
| Pump: | Japanese NACHI |
| Quick clamp: | Japan or domestic |
