Type:
Engraving Router
Spindle Layout:
Vertical
Spindle Number:
Single-Spindle
Feed Mode:
Mechanical
Controlling Mode:
CNC
Customized:
Customized
Condition:
New
Product Description

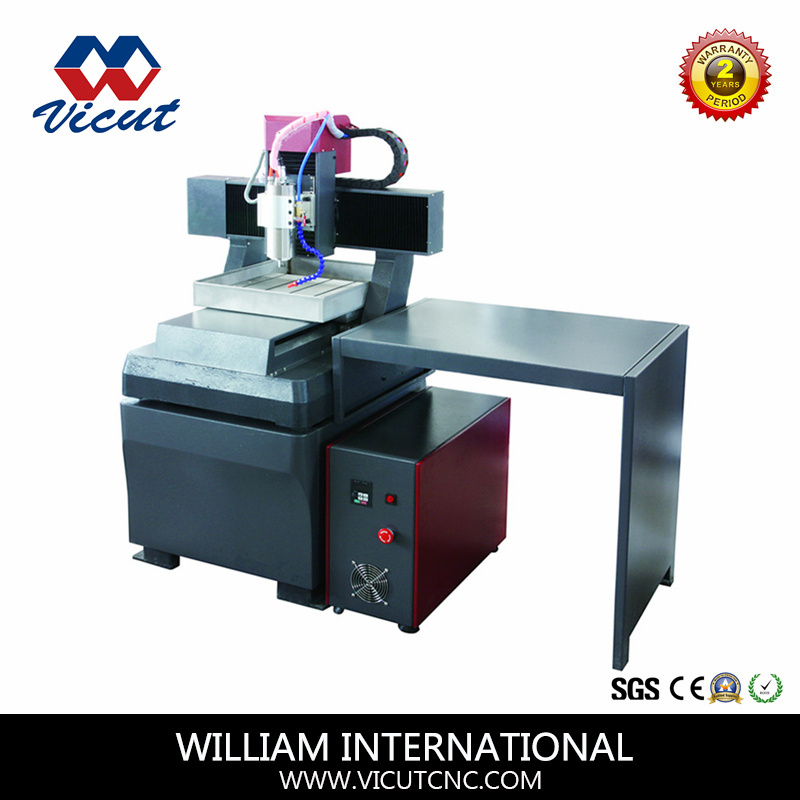

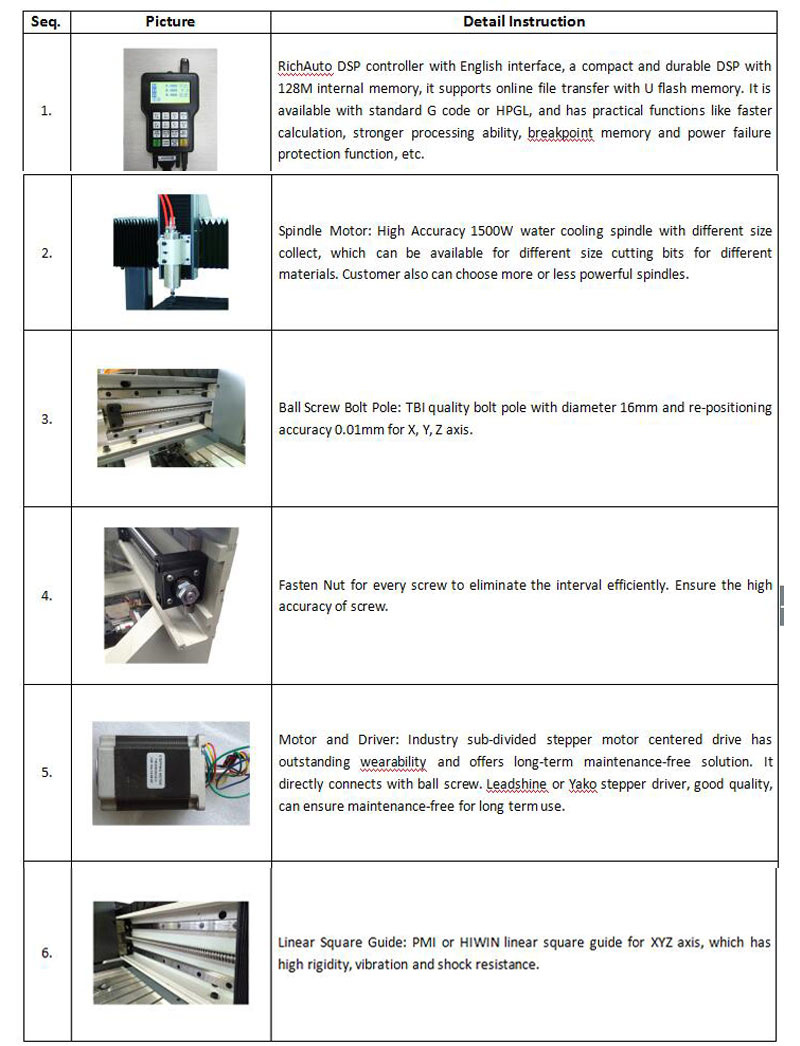

CNC mini wood chipper woodworking machine CNC Cutting Machine (VCT-4030B) Features: 1. Integral cast-iron milling table which made by mold 2. Rolling ball screw and linear guide from Taiwan. 3. Strong constructions, easy operation, and reliable performance. 4. Customized: Design, size, color. OEM Service is available. Applications: Custom signage, Braille signs, name tags, asset tags, electric tags, awards, jewelry, gifts, parts marking, Mahjong making, PCB marking, soft metal craft, and much more. Product Details Show: 1. RichAuto DSP controller with English interface, a compact and durable DSP with 128M internal memory, it supports online file transfer with U flash memory. It is available with standard G code or HPGL, and has practical functions like faster calculation, stronger processing ability, breakpoint memory and power failure protection function, etc.2. Spindle Motor: High Accuracy 1500W water cooling spindle with different size collect, which can be available for different size cutting bits for different materials. Customer also can choose more or less powerful spindles.3. Tool Sensor: For Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free. 4. Ball Screw Bolt Pole: TBI quality bolt pole with diameter 16mm and re-positioning accuracy 0.01mm for X, Y, Z axis.5. Fasten Nut for every screw to eliminate the interval efficiently. Ensure the high accuracy of screw. 6. Stepper Motor: Industry sub-divided stepper motor centered drive has outstanding wearability and offers long-term maintenance-free solution. It directly connects with ball screw. 7. Linear Square Guide: PMI or Hiwin linear square guide for XYZ axis, which has high rigidity, vibration and shock resistance. 8. Stepper Driver: Leadshine or Yako stepper driver, good quality, can ensure maintenance-free for long term use. Options: 1. Circular Chuck: This item will be needed when you want to engrave or marking on round shape pieces, such as copper stamps, it can fix the working parts tightly during processing. 2. Removable Rotary Axis: If you want to make a 3D job, engrave& marking on bottle, pens, or any other column items, this option will be necessary. We can make it removable on flat table, which make your job much more convenient. (only for VCT-4030A&B&C)
Which machine is right for your business? Our Engraving and CNC Routing Systems are capable of doing a variety of applications. Desired size, shape & production volume are factors in determining which machine is right for you. Contact us today & have one of our technical consultants assist you in finding a machine that best fits your needs.
Model
VCT- 4030A
VCT- 4030B
VCT-4030C
VCT-4030R
Table Size
420 × 320mm (1.38' ×1.05')
Working Size
400 ×300 × 90mm (1.31' ×0.98' ×0.3' )
Control System
DSP HANDLE A11 With USB
Transmission
XYZ Ball Screw & Linear Square rails
Max Engraving Speed
4500mm/min
Mini Feeding Speed
1mm/s
XYZ Resolution
0.0125mm
Spindle Motor
1500W/ 6000~24000rpm( More or less power is optional)
800W/6000-24000rpm(1.5KW or More is optional)
File Format
G code or HPGL
Net Weight
Around 150KG
Around 220KG
Around 240KG
Around 220KG
Packing Size
700x710x1300mm ( 0.65 CBM)
700x710x1300mm ( 0.65CBM)
1000x1000x1500mm ( 1.5 CBM)
700x710x1300mm ( 0.65 CBM)
