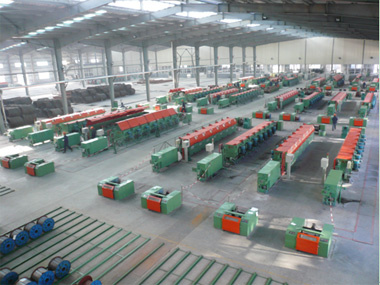

Process Description 1 pre-treatment, roughing line Raw material ER50-6 High Line coil, specifications 5.5mm Steel pre-treatment (including pay-off stands, line stopping device, descaling and water cleaning machinery, electrolytic pickling, high frequency drying and tubing cold wind dry) + LZ7/560 straight wire drawing sets + SG800 I-spooler take-up
2 finely drawn line FX800 I-spooler pay-off machine + LZ8/400 (or LZ7/400 or LZ6/400) straight wire drawing sets + tension stands + Cleaning tank + SG630 I spooler take-up machine
3 copper plating production line FX630 pay-off machine + self-adjusting constant tension wire stands + roller turning stands + mechanical scrubbing + electrolytic alkali cleaning tank + neutralization tank + electrolytic pickling tank + activated water washing tank +chemical plating tank + neutralization washing + hot water washing + electric heating and drying + turning stands + pull roll polishing machine + SG630 I-spooler take-up machine
4 layers packaging production line SG630 pay-off machine + tension stands + layer winding machine S4525 shrink packaging machine for packaging and storage
Installation Requirement
Pos.
Item acceptance
Requirement
1
position and height of the equipment
adjust the level, height tolerance between the inlet and outlet no more tham 2mm
2
Fixture of the equipment
Fixed solid, no violent dithering phenomenon during operation
3
Water tube, air tube, oil tube
No leaking, no air leakage, no oil leakage
4
No-load test
1. Running normally, can not have the phenomenon such as jam, violent vibration and sound 2. Each drum speed matching 3. The action of the switch button is normal
5
Equipment load test
Equipment operation is normal, qualified product quality, equipment performance is stable
REMARKS: Wire drawing machine is customized products, we will precise calculate according to the customer's requirements, providing customers with the most suitable products, the perfect on-site installation and after-sales service.
Our company will provide the whole machine quality assurance for one year, belt and quik-wear parts warranty for 3 to 6 months.
Jiangyin Hengyi Electromechanical Co., Ltd is a high-tech manufactory which is specialized in wire drawing machine, lighting material and precision alloy material. The main products are various wire drawing machine, dumet wire, nickel-coated steel wire, soft magnetic alloy, expansion alloy, thermostat bimetallic strip, ect...Also our company has obtained the GE Approval and CSA Approval.
Our company has gained good reputation in domestic and overseas market with superior quality, reasonable price and perfect afer-sales service. So far, we are obedient to the principle of Create Value for Customers. If you are interested in our products, please feel free to contact us for more information.
For more information, you could browse our website www.jyhengyi.cn
