North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:
CO2
Laser Rated Power:
10W/30W/50W/100W
Wavelength:
1064nm
Marking Area:
110mm*110mm-600mm*600mm
Cooling Method:
Air Cooled/Water Cooled
Warranty:
12months
Product Description

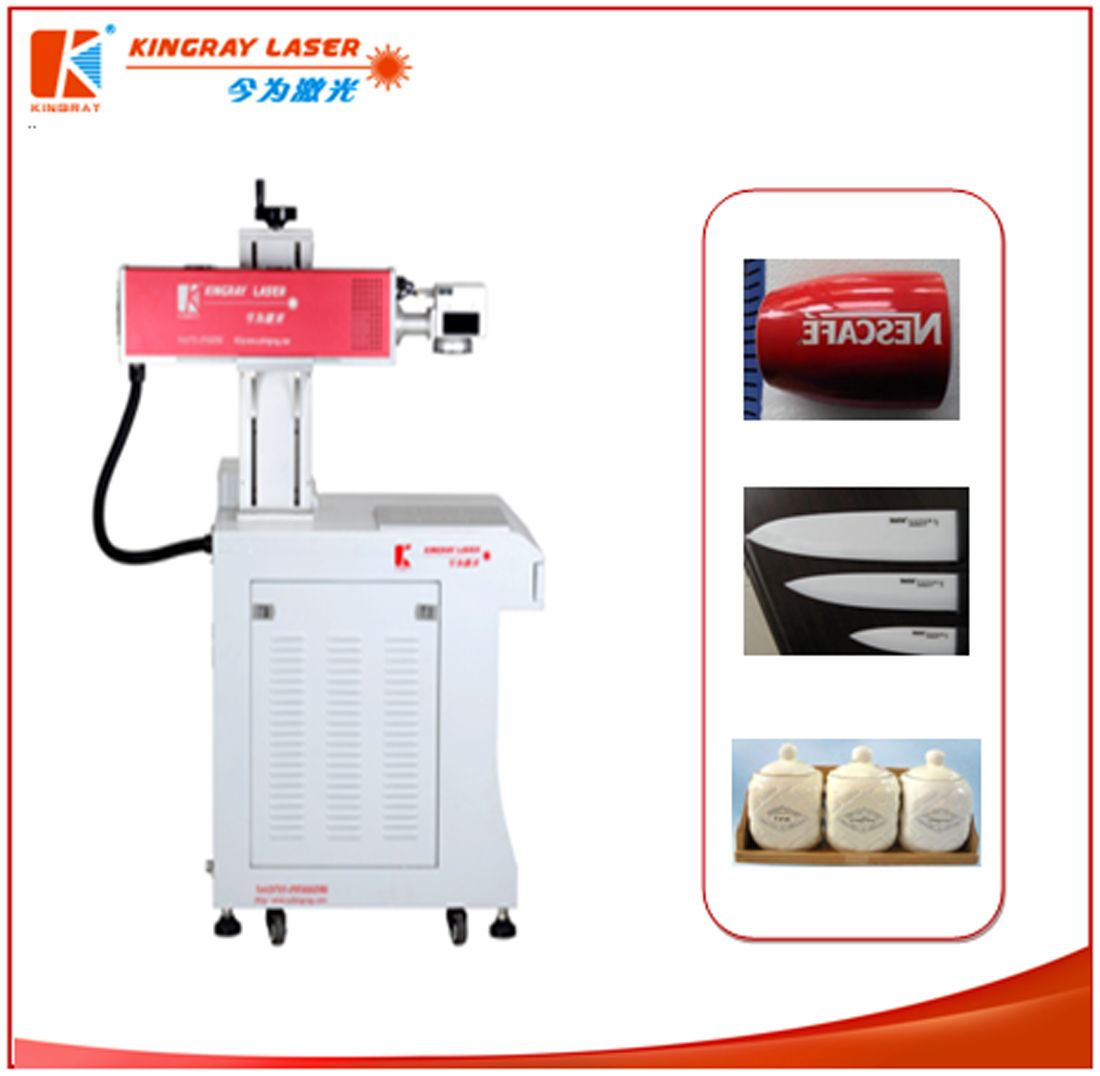

Introduction: CO2 laser marking machine is the galvanometer scanning system type using CO2 as working medium. The wavelength is 10.64um which can be easily absorbed by most non- metal materials and have a very high electro-optic conversion rate. It uses fundamental mode to output laser that makes it high and stable beam quality. Contact-free processing, non mechanical wear and deformation, consumable free, low process cost, but with high process efficiency and high speed, flexible to control, and compatible with automatic production line. Features: 1. Imported MFR CO2 laser tube, optics system and high speed galvanometer scanning to make it long working life, high precision, excellent performance and maintenance-free. 2. Comparing with traditional inject printer, it has much faster marking speed but lower marking cost. 3. Great anti-counterfeiting performance and indelible marking effect. 4. Marking-on-the-fly and rotary marking are available, as well as large-area XY axis worktable for automatic segmentation marking. 5. Software has strong functions, supported graphic data format like PLT, PCX, DXF, BMP and auto-generated serial number, date, bar code and QR code. Application Industries: Widely used in medical packaging, electronic components, food and beverage, ceramic sanitary ware, craft gifts, greeting cards, books and periodicals, plastic glasses, high-grade boxes of cigarette, wine and tea, craft wooden comb and daily cosmetics etc. Suitable Materials: Suitable for PVC, ABS, PMMA, PC, AK, EP, glass, bamboo products, leather, plastic, cloth, paper, etc. Technical Parameters:
Type/Parameter
KRCO2-10W
KRCO2-30W
KRCO2-50W
KRCO2-100W
Laser type
CO2
Laser rated power
10W
30W
50W
100W
Wavelength
1064nm
Beam quality
<1.2
<1.2
<1.2
<1.2
Min. character size
0.4mm
0.4mm
0.6mm
0.6mm
Min. line width
0.01mm
0.01mm
0.15mm
0.3mm
Repetition accuracy
±0.002mm
±0.01mm
Marking speed
250C/S
250C/S
300C/S
400C/S
Marking area
110mm×110mm-600mm×600mm
Q-switched frequency
0.2KHZ-50KHZ
Electric requirement
220V±10%50HZ/10A
Cooling method
Air cooled
Water cooled
Overall dimension
400×480×500
800×680×1000
1000×680×1200
1000×680×1500
Total weight
60KG
100KG
150KG
200KG
Power consumption
500W
600W
2KW
3.5KW
