Metal Type:
All Metal
Packing Condition:
Standard Package
Modes Of Transportation:
Customer Designation
Date Of Delivery:
30~45days

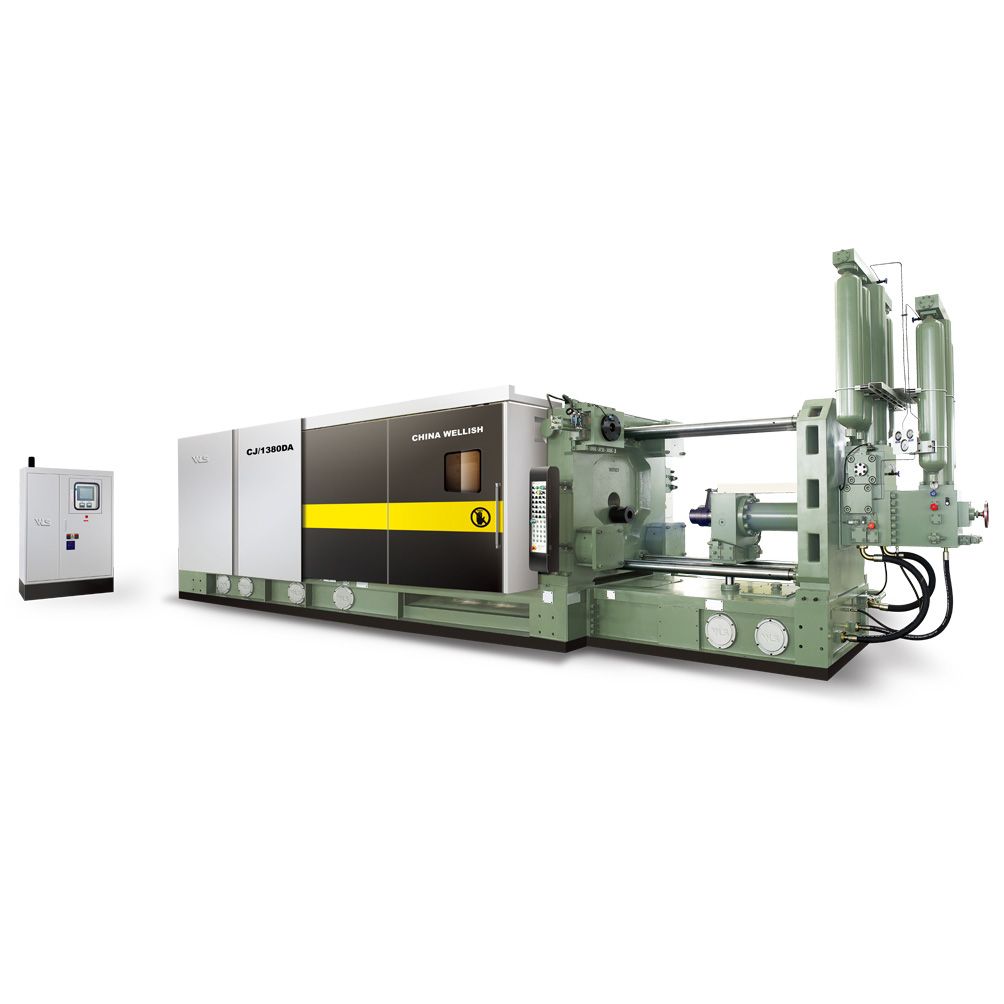

Product Description
Deals with the research and manufacturing of high precision die casting machines for many years(start from 1995). With "WELLISH"brand cold chamber series(140-2080Tons), hot chamber series(30-200Tons), MG ALLOY series(140-1380Tons). Frequency translation&servo drive saving-energy system techology, with high quanlity moulds and furnace and auxiliary machines provide AL/MG/Copper/Zinc Alloy prodct solutions for you.
Specification
C/200D
Clamping Force
KN
2000
Clamping Stroke
mm
385
Die-Thickness (Min-Max)
mm
200-580
Platen Size(H*V)
mm
720x720
Space between Tie-Bars
mm
480x480
Diameter of Bars
mm
85
Casting Force
KN
99-250
Casing Stroke
mm
370
Injection Plunger diameter
mm
50 60
Max. Casting Volume (AL)
kg
1.3 1.9
Max.Casting Volume(MG)
kg
0.8 1.1
Casting Pressure (Min-Max)
Mpa
50.4-127.3 35-88.4
Cast Projection Area
Cm2
141-700
Injection Position
mm
0, -140
Ejector Space
mm
150
Extruding Flange Diameter
mm
110
Height of Extruding Flange Pattern
mm
10
Ejecting Force
KN
109
Ejecting Stroke
mm
85
Dry Cycle Time
s
6
System Working Pressure
Mpa
16
Motor Power
KW
15
Tank Capacity
L
595
Machine Weight
kg
7800
Overall Dimensions of Machine (L*W*H)
mm
5510*1360*2530
NINGBO BEILUN ALLWAY MACHINERY Co., Ltd is located in Hailong Industry Park Development Zone (Beilun), Ningbo, China, which is attached to Hailong Group. Our company is found in 1995, cover dozens of more than 80, 000m2 production base and has a professional technology engineer team who has been long engaged in design and manufacturing each type of machine flexibly. Besides, our company owns advanced CAM manufacturing and production facilities, and the whole process from material, parts, assembly and testing instruments is in accordance with ISO quality guarantee system. The engineering technology center has achieved modern management of CAD simulation optimization design. PDM design process management and ERP operation system.
Our company has got both 1st level energy conservation certification, ISO 9001-2008 certifacation & CE authentication for Injection molding machine (90-3000T), Die casting machine(Hot chamber 30-200T, Cold chamber 140-2000T, MG 140-2000T), Press punch machine (15-1000T). The OEM base of some Japan, Italy, Spain brand machines. Besides We have cooperation with European partner, to design our machine with innovation and perfection together, so as to bring more our European style machines to the market.
Group main products:
"WELLISH" DIE CASTING MACHINE
"AOTAI"INJECTION MOLDING MACHINE
"AOMATE"PRESS PUNCH MACHINE
NINGBO BEILUN ALLWAY MACHINERY Co., Ltd is located in Hailong Industry Park Development Zone (Beilun), Ningbo, China, which is attached to Hailong Group. Our company is found in 1995, cover dozens of more than 80, 000m2 production base and has a professional technology engineer team who has been long engaged in design and manufacturing each type of machine flexibly. Besides, our company owns advanced CAM manufacturing and production facilities, and the whole process from material, parts, assembly and testing instruments is in accordance with ISO quality guarantee system. The engineering technology center has achieved modern management of CAD simulation optimization design. PDM design process management and ERP operation system.
Our company has got both 1st level energy conservation certification, ISO 9001-2008 certifacation & CE authentication for Injection molding machine (90-3000T), Die casting machine(Hot chamber 30-200T, Cold chamber 140-2000T, MG 140-2000T), Press punch machine (15-1000T). The OEM base of some Japan, Italy, Spain brand machines. Besides We have cooperation with European partner, to design our machine with innovation and perfection together, so as to bring more our European style machines to the market.
