North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:
Round,Square
Coating:
Cr,Ni,Co
Size:
as Per Drawing
Product Description

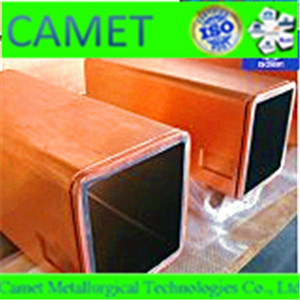

Copper Mould for CCM Description Copper mould is placed in the heart position of continuous casting machine (CCM), its function is to solidify the liquid steel pouring through the Submerged entry nozzle(SEN), guarantees required billet/bloom/slab with enough thick shell to be obtained. Copper mould plays a crucial role in increasing con-casting efficiency as well as improving steel quality. Specification
Copper Plate Size
Dimensions
Material
Coating
Length
Width
Thickness
Slab
350-3800
700-1000
30-75
Cr-Zr-Cu , CuAg
Ni-Co,Cr,Ni-Fe
Beam Blank
350-900
300-1000
35-300
Cr-Zr-Cu , CuAg
Ni-Co,Cr,Ni-Fe
Rectangle
700-900
200-3000
30-70
Cr-Zr-Cu , CuAg
Ni-Co,Cr,Ni-Fe
Thin Slab
1200-2000
1100-1200
Cr-Zr-Cu , CuAg
Ni-Co,Cr
Ultra-Thin Slab
1530
1100
Cr-Zr-Cu , CuAg
Ni-Co,Cr,
Material
Item
Temp
Unit
Material
CuDHP
CuAg0.1
CuCrZr
Chemical Composition
-
-
-
P 0.015-0.040
Ag 0.08-0.12 P 0.004-0.012
Cr 0.30-1.20 Zr 0.03-0.30
Physical Properties
Electical Conductivity
20
%IACS
83
95
80
Thermal Conductivity
20
W/(m.K)
340
372
330
Coefficient of Thermal Expansion
20-300
10^-6/K
17.1
17.1
17.2
Recrystallisation Temperature
ºC
345
360
690
Modulus of Elasticity
20
10^3Mpa
120
123
126
Melting Point
ºC
1083
1083
1078
Specific Gravity
g/cm³
8.9
8.9
8.9
Mechanical Properties
Ultimate Tensile Strength
20
Mpa
240-310
240-310
375-445
Ultimate Tensile Strength
100
Mpa
190-270
230-270
365-425
Ultimate Tensile Strength
200
Mpa
140-190
205-240
365-410
Ultimate Tensile Strength
300
Mpa
-
175-210
335-375
Ultimate Tensile Strength
400
Mpa
-
145-160
315-350
0.2Yield Point Strength
20
Mpa
190-250
200-225
280-355
0.2Yield Point Strength
100
Mpa
185-260
195-240
270-345
0.2Yield Point Strength
200
Mpa
-
180-225
260-330
0.2Yield Point Strength
300
Mpa
-
165-215
250-320
0.2Yield Point Strength
400
Mpa
-
130-145
240-290
Elongation
20
%
25-10
16-10
20-13
Hardness
20
HB
80-95
110-125
115-130
Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.
We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.
Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
