Type:
Metal Rolling&Drawing Machine
Product Description

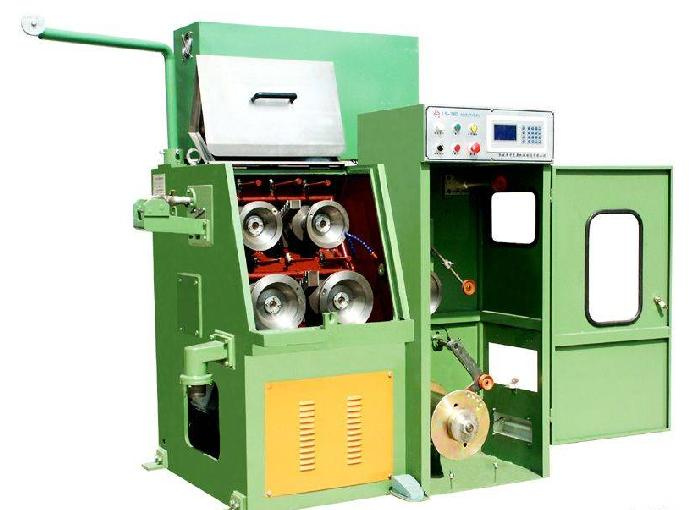

Automatic high speed fine drawing machine
Inlet wire: 0.8-1.2mm
Output: 0.08-0.1mm
Copper wire drawing machine
Products models
B22
B24
Line speed
Max2700m/min
Max2700m/min
Inlet wire
0.4—1.2mm
0.4—1.2mm
Main motor
Stepless transmission control with inverter
Finish dia
0.10—0.45mm
0.08—0.45mm
Spool capacity
20—80kg
20—80kg
Brake
Electromegetic braking automatic wire broken or full beam stop
Eye die holder
Adjustable in up-down and front-back direction
No. of dies
22
24
Capstan
Ten ceramic layer
Eleven ceramic layer
Reduction rate
15%
13%
Power consumption
15—20kw
15—20kw
Dimension
2000*1800*1890
2000*1800*1890
weight
2300kg
2300kg
Wire drawing machine, copper wire drawing machine, CCA wire drawing machine, CCS wire drawing machine, alloy wire drawing machine, Aluminium wire drawing machine, wire drawing machine+continuous annealer, drawing with annealing equipment, annealing machine, annealing and tinning machine, coarse wire drawing machine, medium wire drawing machine, fine wire drawing machine.
Yancheng Aijin Electrical Machinery Co., Ltd., is one of the best professional company which is specially designed equipment and accessories for manufacturing wire and cable. We are interested in supplying our high quality products to you on favorable terms and conditions.
