Product Description
1. State-owned enterprise
2. Professional quality suitable for wire drawing
3. Good after-sale services
4. Multi model for choice
Equipment use

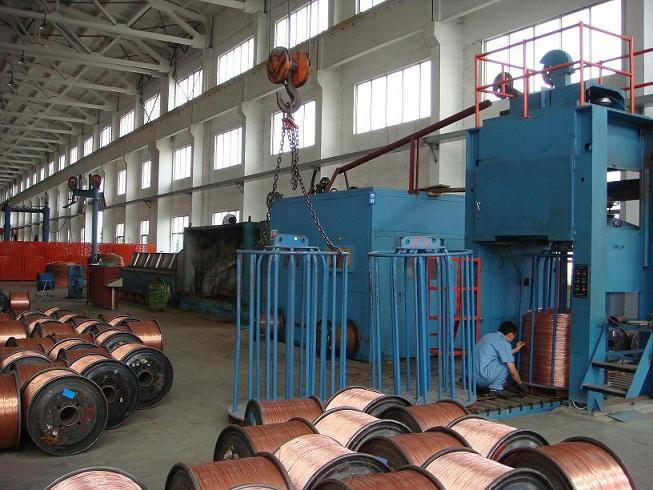

This machine is used to draw ø 1.30-ø 4.0mm copper wires from 8mm rod.
Equipment feature
1. The box body is cast part in whole one that can make perfect outlook and lower noise and vibration.
2. All drawing blocks wheel which have equal diameter and are set in one row in certain degree. The special design can protect the wire against scratching and compressing.
3. The operation is very convenient because of the block wheels in one row and oil immersion lubrication method and horizontal annealer.
4. Dual-motor driving and rapid mould-changing system;
5. High load carrying capacity and low noise;
6. The line adopts Dual take-up and has the high automation.
Equipment composition
It is composed of pay off stand, main drawing machine, annealing device, wire accumulator, dual take-up, wire pointer and stripper, electric control system, etc.
LHD-450/13
LHD-450/9
Main Machine
Inlet Wire dia.
Φ 8.0mm
Φ 8.0mm
Out Wire dia.
Φ 1.3~4.0mm
Φ 2.5-4.0mm
Max. Linear speed
22m/s
14m/s
Max. Drawing Pass
13
9
Finish Capstan Dia.
Φ 450mm
Φ 450mm
Speed ratio between capstans
1.41-1.18
1.41-1.18
Main motor
280kW(DC)
250kW(DC)
Finish capstan motor
75kW(DC)
55kW(DC)
Continuous Annealer
Annealing Wire dia.
Φ 1.2~4.0mm
Φ 1.2~4.0mm
Max. annealing speed
20m/s
13.0m/s
Max. annealing voltage
60V(DC)
60V(DC)
Max. annealing current
6000A(DC)
6000A(DC)
Cooling water consumption
20m³ /h
20m³ /h
Air consumption
18m³ /h
18m³ /h
Dual take-up
Accumulating wheel length
5.0m
5.0m
Max. take-up speed
22m/s
22m/s
Max. traversing pitch
6mm/r
6mm/r
Take-up motorpower
32kW× 2(DC)
32kW× 2(DC)
Take-up bobbins
PND500-630(DIN46397)
PND500-630(DIN46397)
Drop down coiler
Take up speed
18m/s
18m/s
Take-up motor power
18.5kW(AC)
18.5kW(AC)
Wire range
Φ 1.8~3.5mm
Φ 1.8~3.5mm
Coiling wheel dia.
Φ 630mm
Φ 630mm
Max. loading weight
1500~1800kg
1500~1800kg
Others
Total weight
50000kg
47000kg
Overall dimension
26550× 4500× 3820 mm
24550× 4500× 3820mm
