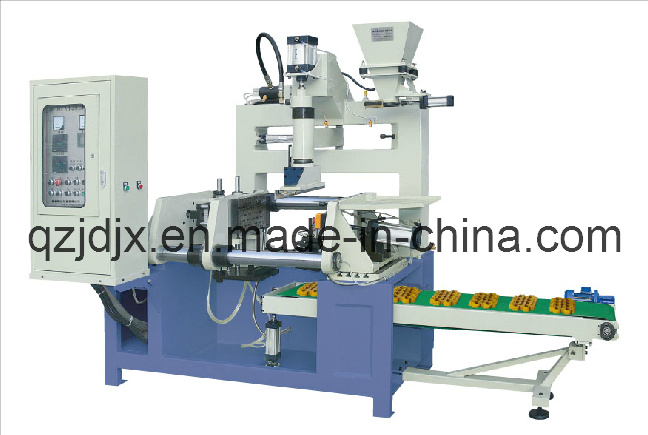

JD-361-A Automatic Core Shooting Machine with Nylon Conveyor
This is a kind of shooting sand core machine, you can choose coated resin sand(dry) or furan resin sand(wet), shoot the sand into the mold cavity, through the heating of the mould, it could make out the sand mould or the shell mould soonest.
Greatest weight of sand cores: 6kg
The biggest size of core boxes(L x W x H): 400mmX280mmX200mm
Heating Power: 5.4kw
Ltinerary of plunger under pressure: <=30mm
Ltinerary of mould opening
The longest tinerary of core-pulling guide bar: 150mm
Nylon conveying band(L× W× H): 1650mmX400mmX100mm
Lncreased angle of nylon conveying band 2deg; -4deg;
Transmission speed 72mm/s
Total power: 6.7kw
Equipment maximum outlined size 2210*1550*2080mm
| Main specifications and technical parameters |
|
| greatest weight of sand cores | 6kg |
| The biggest size of core boxes(L x W x H) | 400mmX280mmX200mm |
| Heating Power | 5.4kw |
| Ltinerary of plunger under pressure | <=30mm |
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
