North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Signal Type:
Analog Type
Measuring Medium:
Temperature
Temperature Range:
0-1600c
Fixing:
Thread/Flange/None
Connection:
Terminal Box/Compensation Cable/Plug
Probe Length:
Customized
Probe Diameter:
Customized
Nominal Pressure:
Normal Pressures
Certification:
ISO
Control Type:
Digital
Type:
Temperature Controller
Material:
Stainless Steel
Usage:
Temperature Control
Operating Principle:
Temperature Sensor
Product Description

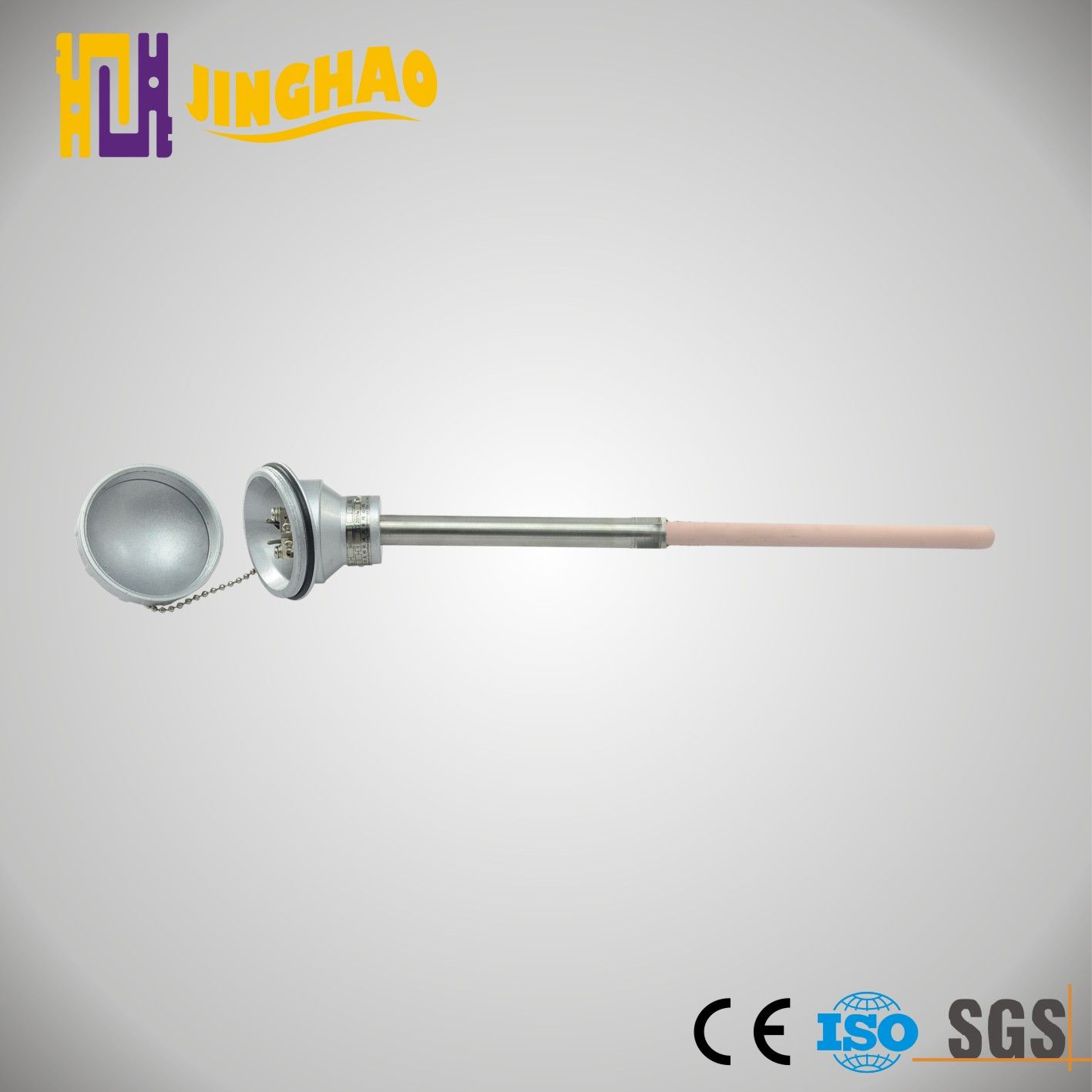

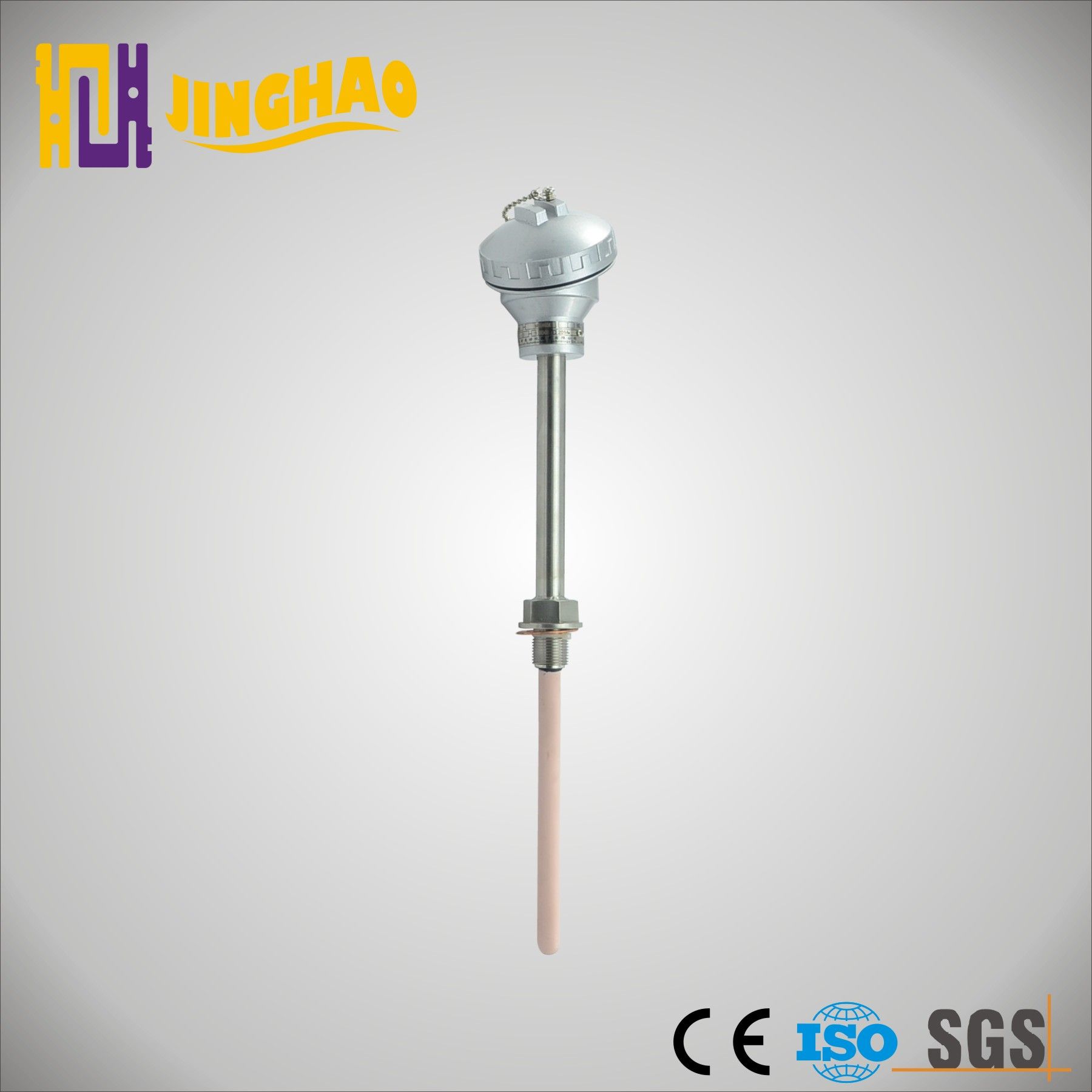

Corrosion-resistant Thermocouple for High Temperature
Application It is widely used to measure temperature during production process with high temperature and corrosion in petrochemical metallurgy, glass and ceramic industries.
Main Technical Parameters Electric outlet: M20X1.5, NPT1/2 Accuracy Class: A,B Protection Class: IP65
Type & Specification
Type
Graduation
Measuring Range
Protection Tube Material
Thermal Response Time
Specification
WRPF-130G
S
0~1300
3YC52
less than 80S
d
Lx1
WRP2F-131G
∮16
300x150
WRHF-130G
R
0~1300
350x200
WRH2F-131G
400x250
WRHF-130G
B
0~1600
MoSi2
450x300
WRH2F-130G
500x350
WRPF-430G
S
0~1300
3YC52
550x400
WRP2F-430G
600x450
WRHF-430G
R
0~1300
650x500
WRH2F-430G
750x600
WRRF-430G
B
0~1600
MoSi2
1000x850
WRR2F-430G
