Material:
PC\PE\PP\EVOH\PA\EVA
Max Container Capacity:
30
Total Weight:
12
Machine Dimension:
4.2X2.3X3.6
Type:

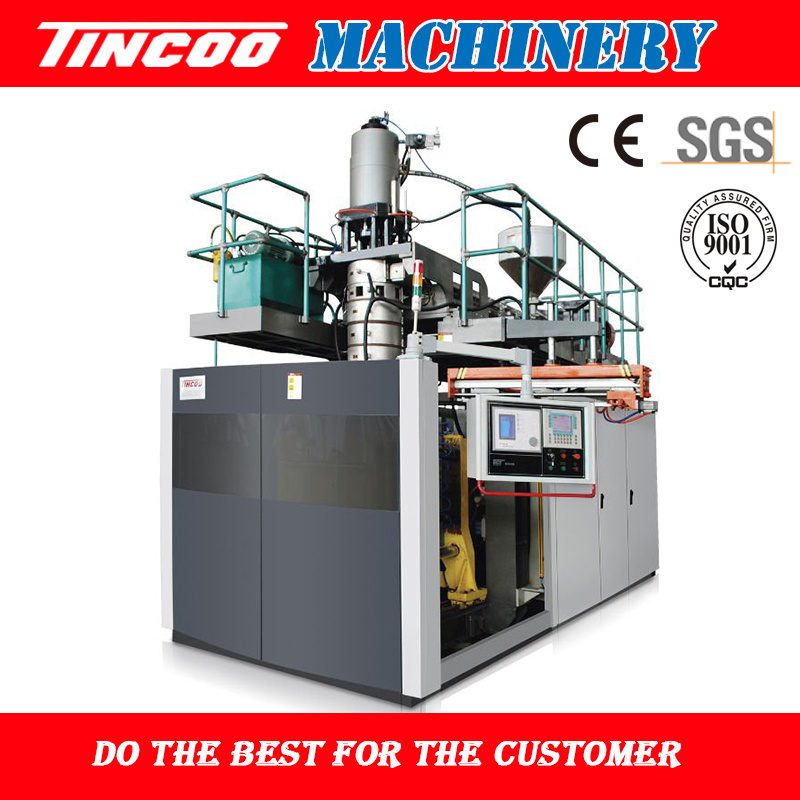

Extrusion Blow Molding Machine
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Raw Material:
PC\PE\PP\EVOH\PA\EVA
Product Description
TINCOO MACHINERY was set up by three contributive shareholder in 1989. With the area of 58000m². Up to 2015 TINCOO MACHINERY has more than 400 employees. Our employees have 20 years expriences in the field of blow moulding machine. During the past five years, TINCOO MACHINERY annual increase rate is more than 50%. TINCOO MACHINERY has successfully supplied machine for more than 80 countries till now.
Main technical features
Specifications
Material
PC\PE\PP\EVOH\PA\EVA
Max container capacity
L
30
Number of die
set
1
Total weight
ton
12
Machine Dimension(LxWxH)
m
4.2x2.3x3.6
Accumulator head
Number of die heating
zone
5
Power of die heating
KW
18
Max die-pin diameter
mm
140
Center distance of twin-die
mm
240
Center distance of tri-die
mm
160
Center distance of four-die
mm
120
Center distance of six die
mm
Center distance of eight-die
mm
Clamping Unit
Clamping force
KN
210
Platen opening stroke
mm
350-800
Platen size
mm
740-600
Max mould size(WxH)
mm
560x630
Mould thickness
mm
360-420
Extruder unit
Screw diameter
mm
80
Screw L/D ratio
L/D
25:1
Extruding Volume
Kg/hr
130-160
Number of heating zone
zone
10-86
Extruder heating power
KW
20.2
Extruder driving power
KW
30-37
Power
Oil pump drive power
KW
22
Fan power for screw
KW
4
Total power
KW
67
Ail pressure
Mpa
0.6
Air consumption38
m³/min
0.6
Average energy consumption
KW
35
Configuration and Country of Origin
Configuration
Country of origin
Oil pump
Taiwan YUKEN
Oil valve
Taiwan YUKEN
Touch screen,PLC,module
SIEMENS
AC contactor,breaker
SIEMENS
Relay,proximity switch
OMRON
Control switch
SCHNEIDER
Pneumatic
FESTO
Electrical machine
SIEMENS
transducer
SCHNEIDER FUJI
sealing
Japan
Pipe joint
Korea DK
Pressure gage
German
Lubricant pump
BIJUR
