Type:
Extrusion Blow Molding Machine
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Raw Material:
PP,PE...
Product Description
Specification:

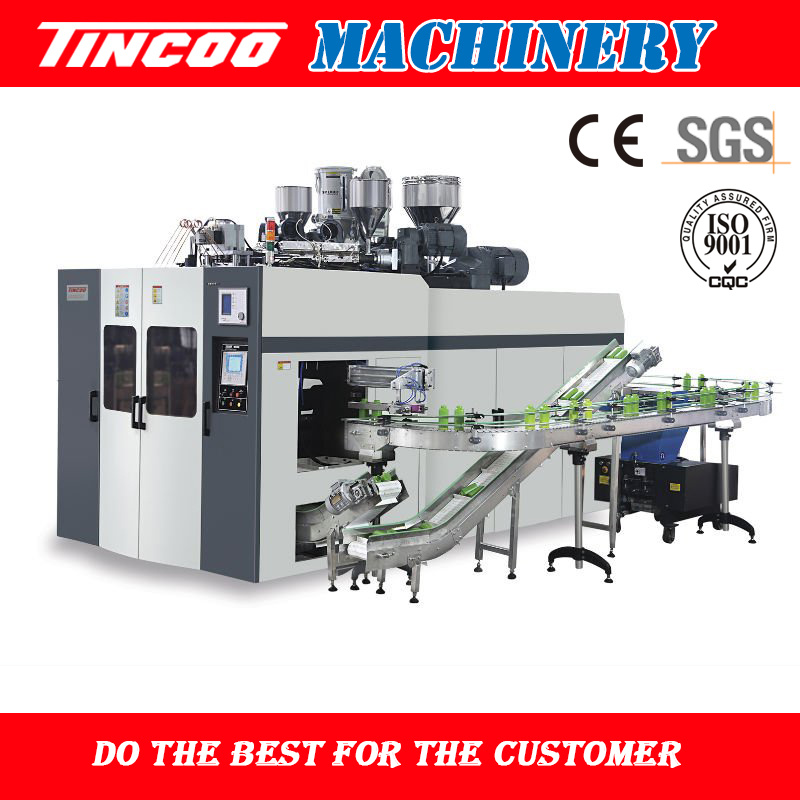

The 3L two station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. Its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.
Special design can be made to order to for visistipe(VS) or two colors(TC) or two layers(TL) bottles.
Setting: Clamping------------Double station+Hight-precision guide+large arm cylinder axle Extrusion system--Hard gear surface reducer+Japan inverter Die system----------Central-incoming extrusion die with special steel Hydraulic system--Japan hydraulic valve seal and proportional control Control system----Japan PLC+Imported HMI+PLC automatic
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.
Specification
DHD-3LII
Material
PE,PP
Max.container capacity
L
3
Number of die
set
1,2,3,4,5,6
Machine Dimension
m
3.74×2.8×2.3
Total weight
ton
8.0
Accumulator head
DHD-3LII
Number of die heating
zone
4-19
Power of die heating
KW
4.5-16.5
Max die-pin diameter
mm
80
Center distance of twin-die
mm
240
Center distance of tri-die
mm
160
Center distance of four-die
mm
110
Clamping Unit
DHD-3LII
Clamping force
KN
100
platen opening stroke
mm
170-350
platen size
mm
440×250
Max mould size
mm
550×280
Mould thickness
mm
170-220
Extruder Unit
DHD-3LII
Screw diameter
mm
75
Screw L/D ratio
L/D
25:1
Extruding Volume
Kg/hr
115
Number of heating zone
zone
4
Extruder heating power
KW
12
Extruder driving power
KW
30
Power
DHD-3LII
Oil pump drive power
KW
11
Fan power for screw
KW
0.5
Total power
KW
58-70
Air pressure
Mpa
0.6
Air consumption
m³/min
1.5-2.0
Average energy consumption
KW
38
Cooling Water Consumption
m³/h
1.5-2.5
Above parameter is for reference, detailed please contact me!
