| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shaping Mode: |
Extrusion Mould |
| Product Material: |
Polycrystal Diamond |
| Product: |
Drawing Dies |
Product Description

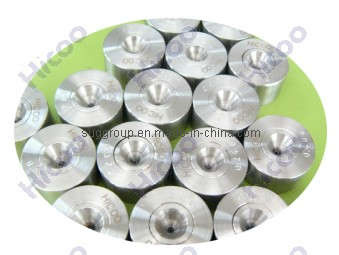

Natural Diamond Drawing Dies
1. Core: Natural diamond
2. Case: Stainless steel
3. Advantage:
A)good durability
B)high efficiency
C)smoothness, durability
Features:
1. Pefect Core Material---Natural Diamond
Formed by natural is especially better hardness and tough degree.
Mold holes are especially easy to be gained smooth face and extruded with high speed
2. Increasing the life of drawing wire, also decreasing the risks of unfasten split.
3. Outstanding wear resistance assures production of wire products of a consistent size and weight per unit length.
4. Preparation time and wire material loss resulting from die replacement is greatly reduced.
5. Stable wire diameter leads to insulator cost reduction.
6. Consistently high quality surface luster
Applciation:
Diamond dies are widely applied to a variety of industries, implemented as drawing tools for soft wire products (copper and aluminum wire etc), as well as hard wire products (stainless steel, tungsten and copper plated steel wire etc. ).
Suitable for drawing platinum rhodium wire, gold wire, silver wire, copper, aluminum, molybdenum, nickel, tined copper,
Tungsten, copper, aluminum alloy, steel, stainless steel, steel cord, iron and other nonferrous metal wire material.
Specification:
Hole size: 0.03mm_1.00mm
Case size: 25x12mm, 28x11mm, 30x15mm, 25x10mm, 24x10mm, etc.
Tolerance: +0/-0.001---+/-0.1mm
PACKAGE AS PER CUSTOMER REQUIREMENT
Any other special request, we can do according to customer requirement
|
PCD wire drawing dies10μ 5μ |
Mold Core
Specificationφ × h(mm) |
3× 1.5 |
4× 2 |
5× 2.5 |
6× 3 |
7× 3 |
8× 4 |
10× 5 |
16× 8 |
20× 10 |
|
Repairable Max. Diameter of soft wire hole(mm)(Such as copper, Pb, gold, ally and other wire material) |
0.4 |
1 |
1.5 |
2.0 |
2.5 |
2.7 |
3.5 |
5.5 |
8.0 |
|
Repairable Max. Diameter of soft wire of hole(mm)(Such as: tungsten, molybdenum, steel and other wire material) |
0.15 |
0.3 |
0.6 |
1.0 |
1.3 |
1.5 |
2 |
2.5 |
3.0 |
