North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:
Sheet Metal Drawing, Bending, Blanking, Extrusion
Forging Forming Method:
Mold Forging
Power Source:
Hydraulic Pressure
Advantage:
Use Widely
Product Description

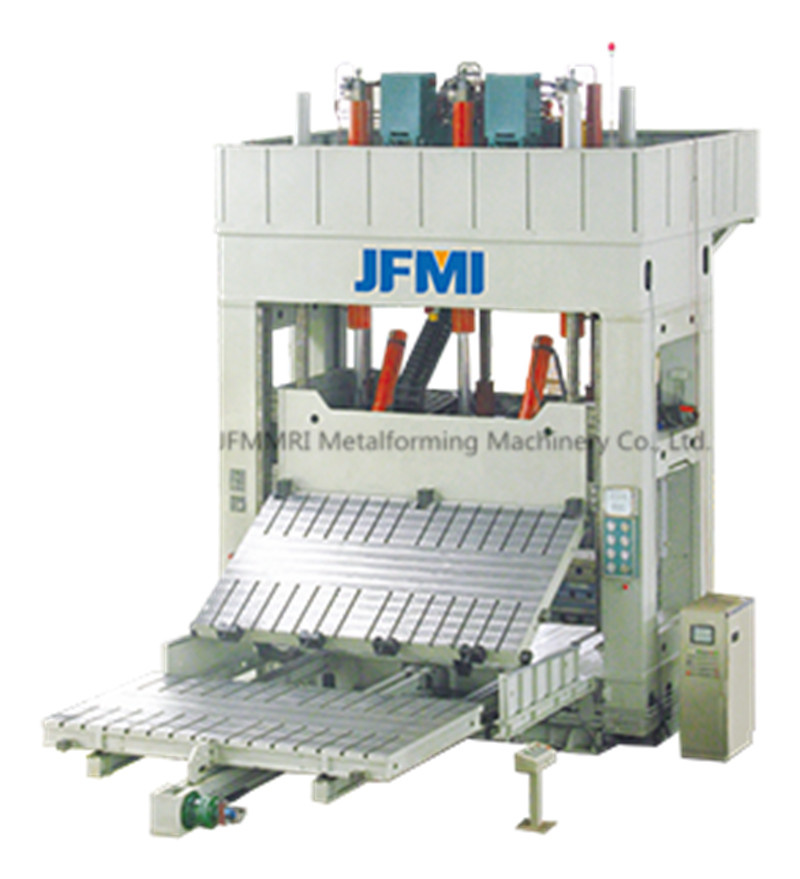

The press is used for die testing,and be made according to the customer requirement.
No.
ITEMS
UNIT
SPECIFICATION
YJ98-630Q
YJ98-800Q
1
Nominal force
kN
6300
8000
2
Pressure of hydraulic system
MPa
~25
~25
3
Daylight
mm
1800
1800
4
Slide stroke
mm
1200
1200
5
Size of overturn table
L-R
mm
2800
2500
F-B
mm
1800
1500
6
Size of table
L-R
mm
2800
2500
F-B
mm
1800
1500
7
Speed of slide
Idle
mm/s
~300
~300
Pressing
mm/s
10-25
10-25
Return
mm/s
~250
~250
8
Motor power
kW
80
9
Turnover table turning angle
°
180
180
10
Slide running accuracy precision
mm
0.1
0.1
11
Moving table move direction
Front
Front
12
Moving table no.
piece
1
1
13
Moving table bearing capabity
Kg
20000
20000
14
Moving table move distance
mm
≥2000
≥2000
15
Moving table move speed
mm/s
~100
~100
16
The height between table and floor
mm
600
600
17
Moving table repeat location precision
mm
±0.05
±0.05
18
Hydraulic system installed power
KW
~110
~120
19
Machine height above floor
m
≤6.6
≤6.6
20
Main motor power
KW
~110
~120
21
Weight
T
~90
~94
