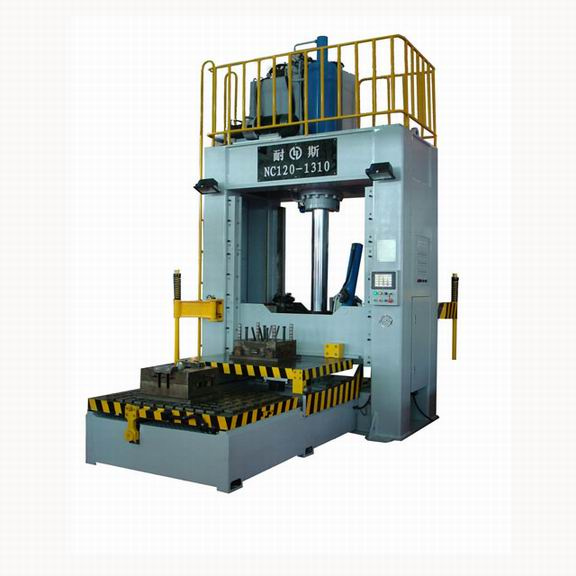

NC series vertical type die spotting machine draws essences of products of the same type at home and abroad, and is the main facility for design and development. This product is mainly utilized for repair and maintenance of various plastic die, hardware casting die and thin-strip tensile forming die. It, boasting convenient, fast and automatic operations, traditional simple fitting of knocking by copper bar, and greatly promotes efficiency and precision of fitting. NC series vertical type die spotting machine adopts PLC control, human-machine interface operations, proportion pressure adjustment and chooses different pressures according to working requirements.
No.
Specification Items
Unit
NC30
Note
1
Max. Pressing Capacity
T
50
Adjustable
2
Max. Lifting Capacity
T
20
3
Rotating Angle
Degree
180
4
Mould opening space
mm
1100
5
Upper Clapper Capacity
T
1
The weight of upper die can be reversed
6
Lower Clapper capacity
T
3
7
Magnetic force of upper disk
T
25
Permanent magnetism. Power supply could be cut down when magnetizing is finished. The product is power saving and operation safe.
8
Magnetic force of lower disk
T
20
9
Lower table repeatability precision
mm
<0.05
10
Table size
mm
1000×700
11
Close/Open high speed
mm/s
70/70
12
Close/Open l ow speed
mm/s
<25
13
Pressurizing speed
mm/s
10
14
Ejection capacity
T
3
15
Ejection distance
mm
100
16
Lower table moving distance
mm
1600
Cylinder moves out.
17
Motor power
KW
5.5
Energy saving
18
Machine occupied land size
mm
2900*2150
19
Machine height
mm
3840
20
Machine weight
T
6.5
Our series of products include NC standing die spotting machine, NCW horizontal die spotting machine, NCF die-overturning machine, NCS single-action thin-strip tensile machine, NCS series of multi-function deep hole machine tool, special disks of injection molding machines and open/close hydraulic machines with various kinds of capacity. Our main products are NC series of standing die spotting machines. Two kinds of standing die spotting machine, the magnetoelectric-typed and the press-typed, are mainlyy used in the repairing and replacement of various kinds of plastic die, hardware die and thin-strip tensile die.
These machines are not only time-saving and effortsaving, but also increase wor efficiecy and the precision of compound die. We extract teh cream of same kind of products from home and abroad to give our products new meanings. In terms of technolgy, we are in the leading place in teh same industry, both home and abroad. At present, we have established sound coperative relations with many well-known companies from both home and abroad, such as Shenzhen Wavetronics, Jiangsu Tongming, Guangdian Linshihao, Guangzhou Zhongxin, Yangzhou Jingtai, Guangzhou Dongtai, Toyoda Gosei, Shanghai Daiichi Jitsugyo And Changchun Jialin, etc. High quality, high request, high efficiency is our principle.
