Prod Model: |
mechanical hose machine |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dn: |
8-40 |
Strip Size: |
8.5*0.23(W*T) |
Thickness Of Strip: |
0.18-0.3mm |
Productivity: |
2.5~3.5m/Min |
Type Of The Hose: |
Corrugated |
Control: |
PLC |
Material: |
SUS304, 321 and 316L |
Product Description

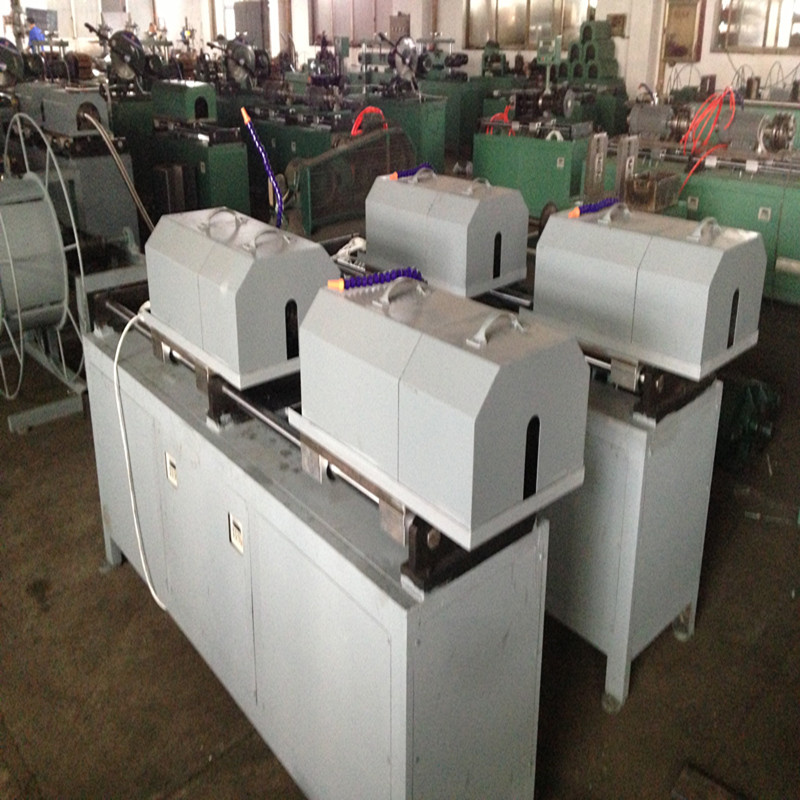

DN8-40 mechanical corrugated metal flexible hose making machine
The machine can be used for different applications as follows:
A: Annular metal hose making machine with mould
B: helical metal hose making machine with mould
C: tube welding machine for the size up to DN50 without hose forming machine
The machine can be used for gas hose, water hose, solar hose, heat exchanger and fire fighting/sprinkler hose manufacturing.
Size range: DN8 up to DN40
Wall thickness: 0.18-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
No. | Size | Tube OD (mm) | Wall thickness (mm) | Hose ID (mm) | Hose OD (mm) | Pitch distance (mm) | Width of the strip (mm) |
1 | DN 8 | 10.3 | 0.18 | 8 | 11.3 | 2.7 | 31.8 |
2 | DN10 | 12.3 | 0.18 | 10 | 13.5 | 2.9 | 38.1 |
2 | DN 12 | 15 | 0.18 | 12.3 | 16.3 | 3.2 | 46.6 |
3 | DN 16 | 20 | 0.2 | 16.2 | 21.3 | 4.5 | 62.2 |
4 | DN 20 | 23.5 | 0.25 | 20 | 25 | 4.5 | 73.0 |
5 | DN 25 | 30 | 0.3 | 25 | 31.5 | 4.5 | 93.3 |
6 | DN 32 | 39.5 | 0.3 | 33 | 41 | 4.5 | 123.2 |
7 | DN50 | 55.7 | 0.35 | 50 | 56.7 | 6 | 173.2 |
Wuxi Longterm Machinery is a professional supplier of all type of industrial equipment, flexible products, etc...With many years of history, the main items are as follows:
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. Flexible metal hose/ Expansion joints manufacturing machineries & products
-expansion joint
- flexible metal hoses
--vacuum bellows & hoses
- hose & pipe fitting
-welding seamer
-bellow forming machine
Mechanical bellow forming machine,
Mechanical hose forming machine
Hydro bellow forming machine
-flexible metal hose making machine
-hydraulic metal hose making machine
-EGR tubes
-EGR tube making equipment
-Braiding Machine
-camlock coupling
The above products have been exported to Ukraine, USA, Japan, Turkey, India and Egypt, etc...
In China. We are capable total in-house design, manufacturing & testing capabilities.
