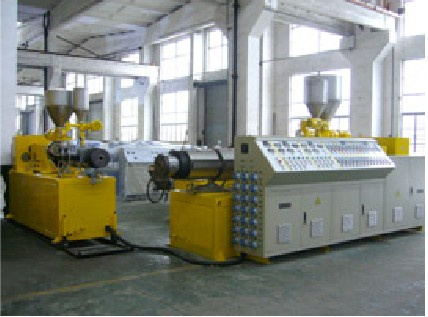

1. (Conical) Twin Screw Plastic Extruders has excellent advantages, such as good compounding, high output, stable operation, great application range, long life span; Own-brand barrel and screw, designed and manufactured by ourselves, best and reliable quality warranty, make sure the extrusion effect smoothly. With more than 10 years' experience in machine manufacture and overseas export, have a well quality control system, try our best to lower the cost of your budget, strengthen the quality itself!
2. PVC powder direct processing, easy operation and less maintenance
3. Twin screw extruder is specially for various PVC powder materials. Mated with different moulds and auxiliary machinery, it can produce various PVC plastic pipes, profile, board, sheets, bars, and granulation.
4. Temperature adjusting equipment of the screw core: Using heat stick type inner cycle cooling system or auto-adjusting temperature control type outer cycle coolingsystem. Barrel cooling: Wind cooling or outer cycle oil cooling; Temperature control instrument: RKC instrument or local made instrument; Speed adjusting equipment of main machine: .
5. Double screw extruder system is controlled by dedicated computers.
6. According to customer requirements, most reasonable screws can be configured to achieve optimal plasticization and logistic quality.
7. Screws are processed by high-precision special CNC screw milling machines to ensure high consistency extruding performance.
8. The most advanced variable pitch and depth screw design technology has been firstly introduced, making screw shearing and compression milder and itself more appropriate for practical requirement.
9. The special design of distribution cabinet enlarges thrust bearing and adopts original bearings, guaranteeing the drive's long service life and the bearing of larger extrusion capacity.
10. The electrical appliance system maximally adopts imported original parts and has many failure alarm functions, reducing failures and facilitating troubleshooting.
Specification:
USED FOR PIPE EXTRUSION:
Model SJZ-45 SJZ-51 SJZ-55 SJZ-65 SJZ-80I SJZ-80II SJZ-92
Screw diameter(mm) 45/90 51/105 55/110 65/132 80/156 80/172 92/188
Max. Rotational speed of screw(rpm) 45 45 45 45 34.7 34.7 34.7
Main motor(kw) 15 18.5 22 30 /37 55 81 110
Capacity(kgs/h) 110 125 150 260 400 400 800
Net weight 3000 3000 3500 4000 5500 5500 8000
Dimensions 3.3*1.2*2.1 3.6*1.1*2.1 3.6*1.1*2.1 4.2*1.5*2.4 4.7*1.5*2.4 5.0*1.6*2.6 6*1.6*2.5
Use for Profile extrusion
Model SJZ-45 SJZ-51 SJZ-55 SJZ-65 SJZ-80I SJZ-80II SJZ-90
Screw diameter(MM) 45/90 51/105 55/110 65/132 80/156 80/172 92/188
Max. Rotational speed of screw(rpm) 34.7 34.7 34.7 34.7 25 25 25
Main motor(KW) 15 18.5 22 30/37 55 55 110
Capacity(kgs/h) 60 80 120 220 320 320 600
Capacity(kgs/h) 1000 1000 1000 1000 1100 1100 1200
Net weight(kg) 3000 3000 3500 4000 5500 5500 8000
Net weight(kg) 3.3*1.2*2.1 3.6*1.1*2.1 3.6*1.1*2.1 4.2*1.5*2.4 4.7*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
