Type:
Extrusion Blow Molding Machine
Raw Material:
HDPE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
QS
Product Description

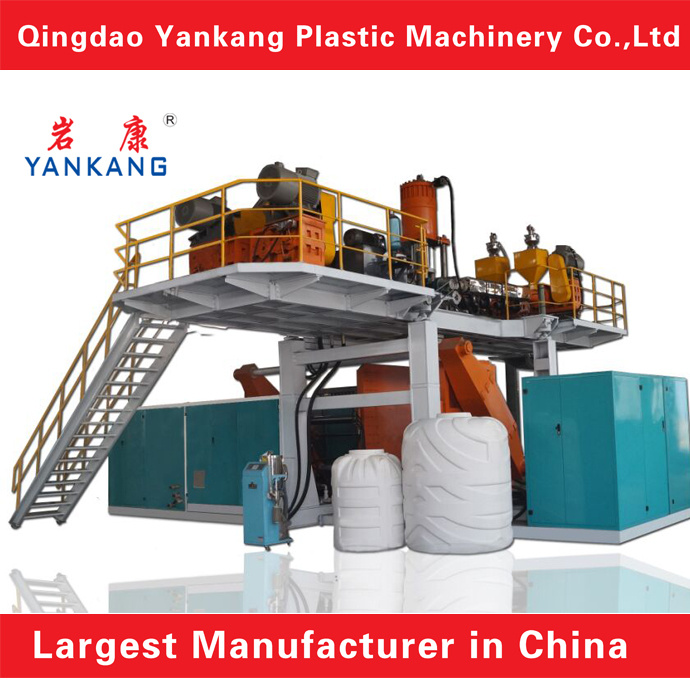

2000L four layer Blow Molding Machine
1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy. 2.Adopt progressive hydraulic system by ourselves,easy to control. 3.Adopt inverter to control the clamping system,saving a lot of energy. 4.The technology of DIe Head is the same with Germany. 5.Configuration:
PARISION CONTROL THINCKNESS CONTROL
MOOG
JAPAN
PLC
SEIMENS
GERMANY
TEMPERATURE CONTROL MODULE
SEIMENS
GERMANY
SERVO VALVE & SERVO TRANSDUCER
MIRAN
ITALY
INVERTER
SEIMENS
GERMANY
HYDRAULIC OIL SEAL
DZ
TAIWAN
INTERMEDIATE RELAY
OMRON
JAPAN
PNEUMATIC VALVE
AIRTECH
TAIWAN
HYDRAULIC PUMP & VALVE
YUKEN
JAPAN
PNEUMATIC SWITCH & CONTACTOR
SEIMENS
GERMANY
HYDRAULIC MOTOR & SCREW MOTOR
SEIMENS
GERMANY
REDUCER
GUOMAO
CHINA
6.Specification
No
specifications
2000 Liter
Model No.
4 layers
Processing material
HDPE/HMWHDPE
1
Extruders
Gear Box Type
Hard surface
Extruder Drive Motor (Inner)
55KW
Extruder Drive Motor (Middle1)
55KW
Extruder Drive Motor (Middle2)
55KW
Extruder Drive Motor (Outer )
55KW
Heating Load
100KW
2
Accumulator Die Head
Heating Load
85kw
Parison Control Cylinder
400X40mm
Die-Core size [ Min / Max]
420-560MM
Inverter
Siemens
Max. parison weight
52KG
3
Moulding Clamping Unit
CLAMPING PLATEN Size
1700X1800mm
MAX MOLD SIZE
1600X 1900mm
Mould Clamping Force
1800KN
Mould Thickness
1010-1600
Clamping Pull Bar
140mm
4
Stretching and Blowing Unit
Spreading stroke
400-800mm
Vertical stroke max.
300mm
5
Electrical Control Panel
Thickness controller
100 points Moog
Main Operation Panel
Siemens
Die Head Control Temperature Control
Siemens
6
Hydraulic System
Hydraulic Drive motor (Main)
45KW
Hydraulic Drive Motor (Parison Control)
7.5kw
Oil Tank Capacity
1200L
7
Gripper
Gripped stroke
350mm
Discharge Stroke
2200mm
8
Hopper Loader
Loader
800kg/H 4pcs
Hopper
50kg 4pcs
9
Production rate
Productivity
12pcs/h
of 1000 ltr.
Product Weight
18kg
10
Delivery period
5 months
11
Weight of Machine
42Ton
12
Size of Machine
[L xW xH ] (M)
12mx11mx6.5
13
Total power
425KW
14
Average power Comsumption
220KW
DELIVERY TIME 5 months after the down payment;
