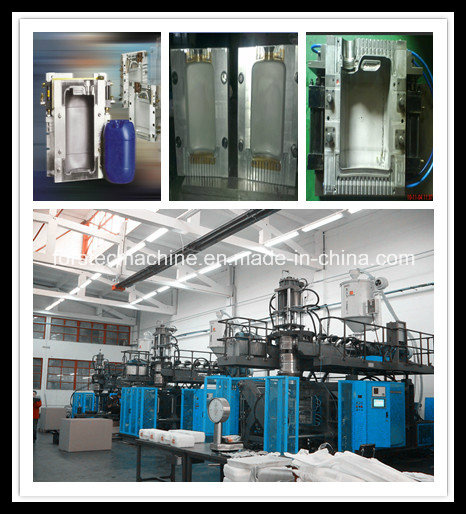

Extrusion Blow Moulding Machine for Drum Jerry Cans

Extrusion Blow Moulding Machine for Drum Jerry Cans
Price: US $ 52500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: FSC80/90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Application: Plastic Jerrycan,Drum
Material Used: HDPE
Screw Diameter: 80/90mm
Automatic Degree: Fully Automatic Extrusion
Model Number: Fsc80/90
Place Of Origin: Jiangsu,China
Diemension: 4.8*2.3*3.5
Station Number: Accumulator Head
Max Capacity: 30L-60L
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008

Product Description

1.Extrusion Blow Moulding Machine for Drum Jerry Cans:

1. Adopt PLC and touch screen to make the operation easy.
2. Adopt the spiral accumulator head which can eliminate knit line completely to ensure the product quality.
3. Adopt imported parison system of multi-point to satisfy various requirements of irregular products to perform the most precise thickness control
4. Set photoelectric sensor in clamping unit to ensure the safety during operation.
5. Various optional functions for special products: Bottom blow unit, reshape unit, rotate mold (for products with neck thread inside and outside), sub-mold, auto knit, and robot unit etc.
The Blow Molding/moulding Machine can produce plastic bottles, drums, cans, oil tank, containers etc. From 10ml to 1000L with different thermoplastic such as PE, PP, PA, PS, ABS, EVA, TPU, PETG, EVOH, PVDC and so on.
It is widely applied in packing field like pharmaceuticals, prochemical, household, personal care, cosmetic, automotive, industry, constructio.
No matter where you are in the world, we speak your words.

Brief introduction for this Extrusion Blow Moulding Machine for Drum Jerry Cans:
1).Jerrycan blow molding machine experience for more than 12 years
2).Machine produce the max for 30L jerrycan
3).The capacity is about 60pcs/h.
4).The famous imported components for machine
5).Taiwan Yuken hydraulic valve for stable working
6).The deflashing system can be equiped according to customer's request.

2.Main characteristics of Extrusion Blow Moulding Machine for Drum Jerry Cans:
1).Accumulator head, single layer, the capacity is up to 30L jerrycan, drum.
2).It process the material as HDPE, PP, ABS and etc.
3).Power supply: 380VAC, 50Hz  (depending on client's county ).
4).The machine is mainly composed of extrusion system, die head system,clamping system,hydraulic system and electrical systems

The parameters for this Extrusion Blow Moulding Machine for Drum Jerry Cans:
extruder
1Screw diameter80mm

2L/D ratio24:1

3Screw speed50-90r.p.m.

4Drive motorAC 30Kw   3 Phase asynchronism motor


5Inverter driveAmerica Amerson


6Heating zone with cooling fan4 zones


7Output/Throughout100(HDPE  particle)


8Heating capacity20.2KW

9Vertical adjustment of head400mm

10Forward/Backward adjustment of head400mm

11Groove feed barrel cylinderNo


12Gear boxHard gear decelerator


13Ladder and safety railsfixed



DIE HEAD
1Accumulator capacity5L(3.75kgHDPE)

2DesignFirst in, first out


3Heating zone4 zones


4Heating capacity15.2kw

5Max die$pin diameter250mm

6Die head axis with pre-blow80mm

7Accumulator push-out stroke measurementTransducer  Italy Gefran


8Injection pressure12Mpa

9Extruder stopHAVE



CLAMPING UNIT
1Tie barTwo tie bar


2Platen size780(W)X900(H)

3Length of mold410-510mm

4Clamping force230KN

5Close/Open stroke400-900mm

6size of mold600×1000mm

7Clamping stroke measurementProximal sensor TAIWAN RIKO


8Hydraulic valveYUKEN


9Number of hydraulic cylinder1

10High pressure14mpa

11Support parts for platen movementGuide



HYDRAULIC SYSTEM
1Drive motorAC 11Kw 3 Phase asynchronism motor


2Hydraulic  valveYUKEN


3Hydraulic pumpTaiwan


4Connector\TuberJapan PIONEER


5SealJapan VALQUA


6Oil tank capacity400L

7Operating pressure14mpa

8Cooling water for oilfixed


9Control of oil level & temperatureChecking oil temperature and abnormal alert
be observed dipstick



Component of Extrusion Blow Moulding Machine for Drum Jerry Cans:
COMPONENTSUPPLIERS
MICROCOMPUTER CONTROL SYSTEMJAPAN MITSUBISHI PLC
TOUCH SCREEN  TAIWAN
TEMPERATURE MODULE TAIWAN
PROXIMITY SWITCH     TAIWAN
CONTACTOR            FRANCESCHNEIDER
AIRBREAK SWITCH            FRANCESCHNEIDER
MOTOR                  Taiwan Yuken
INVERTER         Emerson


OIL PUMP               TAIWAN
HYDRAULIC VALVE      TAIWAN
PNEUMATIC VALVE              TAIWAN
PARISON PROGRAMMER           JAPANMOOG 100 POINTS
SERVO VALVEJAPANMOOG
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.

We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.

The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.

We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.

The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
