Size:
3.8m*2.2m*2.7m
Weight:
6t
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Raw Material:
HDPE
Computerized:
Computerized
Certification:
CE
Product Description

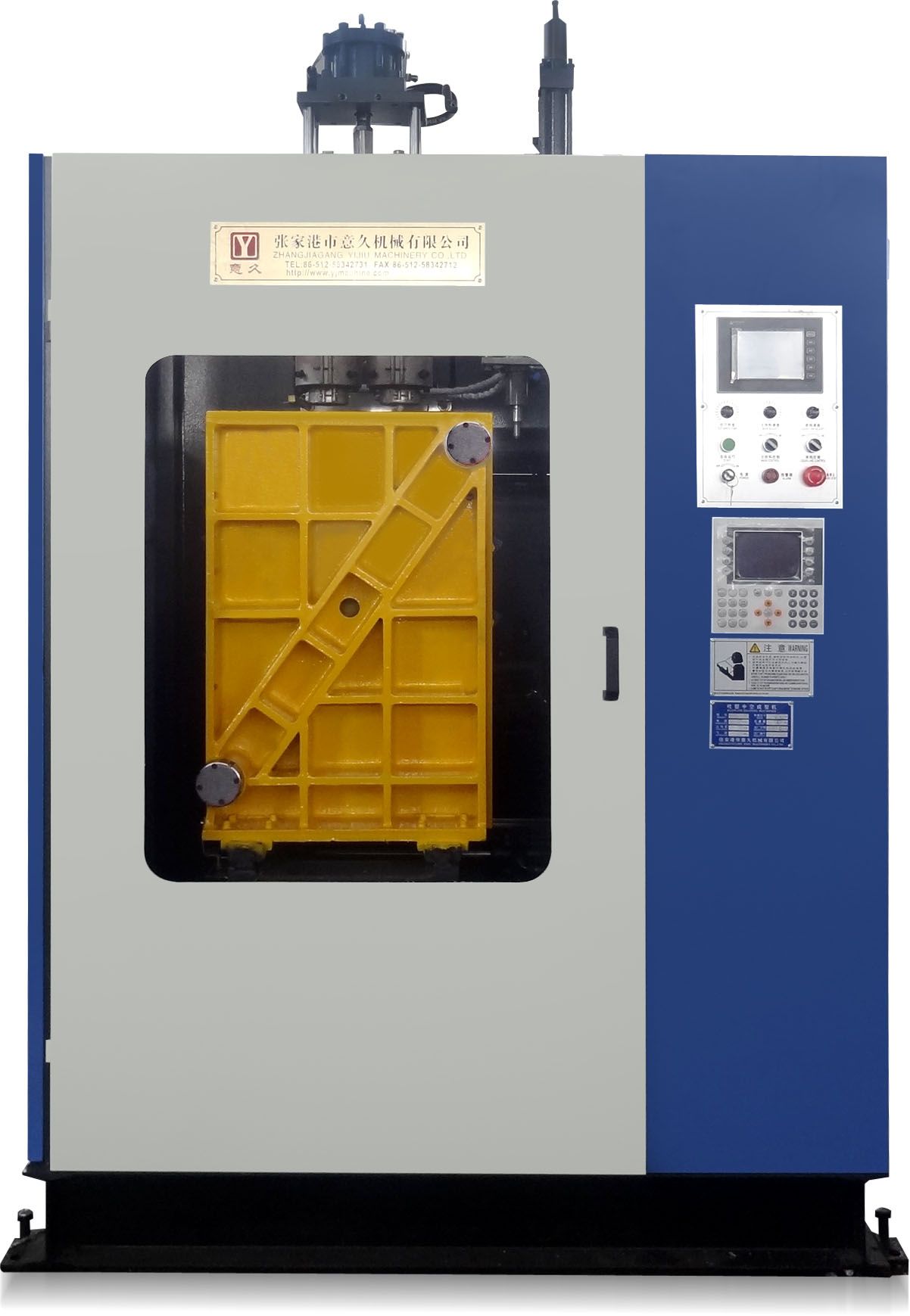

Product Name: Automatic Blow Moulding Machine (YJB70-15L)
Place of Origin: China Zhangjiagang
Features:
1) Accumulator die head with parison control system
2)Maximum capacity: 15L
3) Screw diameter: 70mm
4) Controlled by Japanese PLC
5) Temperature controlled model
6) Interactive bilingual monitor with machine-human interface
7) Excellent imported hydraulic elements and electric elements
8) Proportional control
9) Hard gear surface reducer
Main
parameter
Available material
PE,PP^^
Max. Product Volume
15
(L)
Dry Cycle
900
(pcs/h)
Machine Size
3.8×2.2×2.7
(L×W×H)(m)
Machine Weight
6
(Ton)
Installed capacity
43
KW
Plasticizing
system
Screw Diameter
70
(mm)
Screw L/D Ratio
24
L/D
Plasticizing capacity
90
(kg/h)
Screw Heating Zone
4
(Zone)
Screw Drive Power
22
(KW)
Extrusion
die head
Continuous die head
NO. of Heating Zone
4
(Zone)
Die Heating Power
3.5
(KW)
Max. Die Diameter
250
(mm)
Opening
and clamping system
Clamping Force
120
(KN)
Mold Stroke
280-640
(mm)
Max. Mold Size
560×750
(W×H)(mm)
Hydraulic
system
Oil Pump Power
7.5
(KW)
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.
We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.
Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.
Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.
To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.
No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.
Welcome to Yijiu Machinery!
