Type:
Extrusion Blow Molding Machine
Raw Material:
PET
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

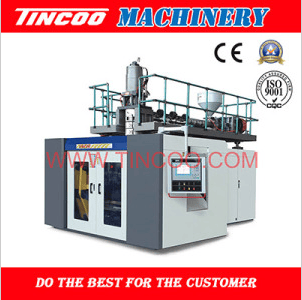

DHD-30LII Extrusion Blow Moulding Machines is a double station machine, it is composed by clamping structure, die head, extrusion system, hydraulic system, Frame, pneumatic system, cooling system, bottom blow device, electric system, parison controller and so on. And the take out products device can be chosen by customer.
The Machine is a double station machine, and suitable for producing high quality container with medium output. With from one to six fold diehead, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts.
Advantages of automatic extrusion blow molding machine:
DHD-30LII 1. This series is mainly applicable to the production of various packing barrels with PE and PP material and capacity between 10~30L, toolbox, motorcar parts such as gasoline bank, wind pipeand other large and medium-sized plastic hollow products. 2. This series adopts new patent of two pull-rod type closing-mold device; Double-folding accumulator head; Extrusion device, equipped with complete blowing device and product taking-outdevice, and entirely achieves full automatic production. 3. The electrical control system adopts Complete computer control to automatically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability. 4. This series, completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
Advanced processing equipment:
Introducing advanced technology form Germany, Italy, Japan etc. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability. Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales. Service hotline is 24-hour on call. Fast response: Domestic call is handled within 12 hours. International call is handled within 20 hours.
Specification
DHD-30LII
DHD-30L-MIII/IV/V/VI
Material
PE\PP^
PE\PP\EVOH\PA\EVA^
Max.container capacity
L
30
30
Number of die
set
1
1
Machine Dimension
m
5.2×3.9×4.2
5.8×3.9×4.2
Total weight
ton
19
22
Accumulator head
DHD-30LII
DHD-30L-MIII/IV/V/VI
Number of die heating
zone
5
8
Power of die heating
KW
18
22
Max die-pin diameter
mm
300
300
Center distance of twin-die
mm
-
-
Center distance of tri-die
mm
-
-
Center distance of four-die
mm
-
-
Clamping Unit
DHD-30LII
DHD-30L-MIII/IV/V/VI
Clamping force
KN
170
170
platen opening stroke
mm
450-900
450-900
platen size
mm
680×750
680×750
Max mould size
mm
560×650
560×650
Mould thickness
mm
460-500
460-500
Extruder Unit
DHD-30LII
DHD-30L-MIII/IV/V/VI
Screw diameter
mm
90
70+60+50+30×4
Screw L/D ratio
L/D
30:1
30:1/25:1
Extruding Volume
Kg/hr
120-200
130-240
Number of heating zone
zone
5
5
Extruder heating power
KW
29
45
Extruder driving power
KW
55
18.5+11+7.5+5.5×4
Power
DHD-30LII
DHD-30L-MIII/IV/V/VI
Oil pump drive power
KW
22
22
Fan power for screw
KW
7.5
7.5
Total power
KW
132
180
Air pressure
Mpa
0.6
0.6
Air consumption
m 3 /min
1-1.5
1-1.5
Average energy consumption
KW
60
85
Cooling Water Consumption
m 3 /h
2.5-3.5
2.5-3.5

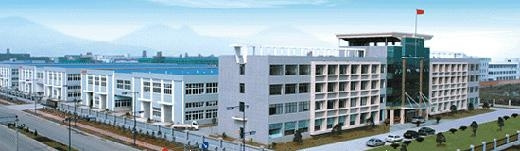

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
