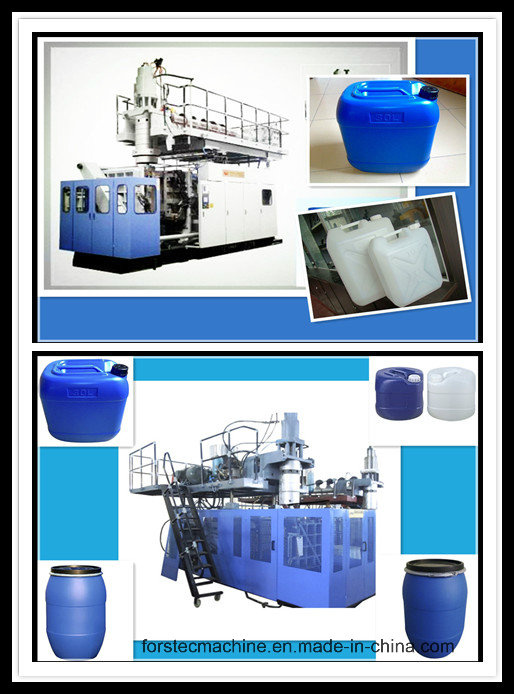

Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts
Price: |
US $ 65000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
FSC90/100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: |
New |
Application: |
Plastic Jerrycan Drum for 2 Layer |
Material Used: |
HDPE |
Brand Name: |
Forstec |
Automatic Degree: |
Fully Automatic Extrusion |
Model Number: |
Fsc90/100 |
Place Of Origin: |
Jiangsu,China |
Diemension: |
4.8*2.3*3.5 |
Station Number: |
Accumulator Head |
Warranty: |
1 Year |
Type: |
Extrusion Blow Molding Machine |
Raw Material: |
HDPE |
Making Method Of Parison: |
Extrusion-Blow Molding |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
ISO9001:2008 |
Product Description
The brief introduction for thisExtrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
1).blow molding machine experience of the engineer for more than 12 years
2).Machine produce the max for 60L jerrycan
3).The capacity is about 60pcs/h.
4).The famous imported components for machine
5).Taiwan Yuken hydraulic valve for stable working
6).The deflashing system can be equiped according to customer's request.
2.Main characteristics of Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
1).Accumulator head, single layer, the capacity is up to 30L jerrycan, drum.
2).It process the material as HDPE, PP, ABS and etc.
3).Power supply: 380VAC, 50Hz (depending on client's county ).
4).The machine is mainly composed of extrusion system, die head system,clamping system,hydraulic system and electrical systems:
Some information for this Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
Extrusion system:screw: specially designed based on material's trait, High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
Die head system:Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system:fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system:adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.
3.Advantages of this Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
1).Adopt energy-saving system which can increase the 20% efficiency.
2).The capacity is about 95pcs/h which is15% higher than some others.
3).Power consumption is about 15% lower.
4).All process are well computerized which makes the operation more conenient.
5).Imported hydraulic components which gurantee the stable working for long time.
5.After-sale service for this Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
1). Instruction for Installation and Debugging
Before delivery, FORSTEC takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
FORSTEC also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of FORSTEC, provides the engineer with round-trip tickets, accommodation, vehicle and $55 per day salary.
2). User Training
Before delivery, FORSTEC will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3). Warranty Period
The warranty period for FORSTEC machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
6.Main parameters for this Extrusion Moulding Blow Machine for Plastic Drum Jerry Cans Auto Parts:
extruder |
|
1 | Screw diameter | 90mm |
|
2 | L/D ratio | 24:1 |
|
3 | Screw speed | 50-90r.p.m. |
|
4 | Drive motor | AC 30Kw 3 Phase asynchronism motor |
|
|
5 | Inverter drive | America Amerson |
|
|
6 | Heating zone with cooling fan | 4 zones |
|
|
7 | Output/Throughout | 100(HDPE particle) |
|
|
8 | Heating capacity | 20.2KW |
|
9 | Vertical adjustment of head | 400mm |
|
10 | Forward/Backward adjustment of head | 400mm |
|
11 | Groove feed barrel cylinder | No |
|
|
12 | Gear box | Hard gear decelerator |
|
|
13 | Ladder and safety rails | fixed |
|
|
|
DIE HEAD |
|
1 | Accumulator capacity | 5L(3.75kgHDPE) |
|
2 | Design | First in, first out |
|
|
3 | Heating zone | 4 zones |
|
|
4 | Heating capacity | 15.2kw |
|
5 | Max die$pin diameter | 250mm |
|
6 | Die head axis with pre-blow | 80mm |
|
7 | Accumulator push-out stroke measurement | Transducer Italy Gefran |
|
|
8 | Injection pressure | 12Mpa |
|
9 | Extruder stop | HAVE |
|
|
|
CLAMPING UNIT |
|
1 | Tie bar | Two tie bar |
|
|
2 | Platen size | 780(W)X900(H) |
|
3 | Length of mold | 410-510mm |
|
4 | Clamping force | 230KN |
|
5 | Close/Open stroke | 400-900mm |
|
6 | size of mold | 600×1000mm |
|
7 | Clamping stroke measurement | Proximal sensor TAIWAN RIKO |
|
|
8 | Hydraulic valve | YUKEN |
|
|
9 | Number of hydraulic cylinder | 1 |
|
10 | High pressure | 14mpa |
|
11 | Support parts for platen movement | Guide |
|
|
|
HYDRAULIC SYSTEM |
|
1 | Drive motor | AC 11Kw 3 Phase asynchronism motor |
|
|
2 | Hydraulic valve | YUKEN |
|
|
3 | Hydraulic pump | Taiwan |
|
|
4 | Connector\Tuber | Japan PIONEER |
|
|
5 | Seal | Japan VALQUA |
|
|
6 | Oil tank capacity | 400L |
|
7 | Operating pressure | 14mpa |
|
8 | Cooling water for oil | fixed |
|
|
9 | Control of oil level & temperature | Checking oil temperature and abnormal alert be observed dipstick |
|
|
