South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Condition:
New
After Sale Servic:
Life Time
Automatic:
Yes
Exported:
25 Countries
Raw Material:
Clay, Mud, Soil, Shale
Guarantee:
1 Year
Method:
Vacuum Extruder
Material:
Full Steel
Certification:
ISO9001: 2000
Type:
Brick Making Machine
Product Description
Product Description
As high-performance clay brick making machine, it is largely used in extrusion forming of various hollow bricks made from coal gangue, shale, coal dust and other industrial slag.
clay brick making machine is permitted to be produced withGerman KWS technologyaccording toGerman standardsand isauthorized to use German.
brick machine is the advanced vacuum extrusion equipment in the world as adoptinghardened-face gearswhich are grinded totally in reducers.
Function Vacuum Extruder is suitable for producing all kinds of clay bricks with different sizes and types by change moulds only.
1.solid and hollow brick size:250*120(125)*60(65)mm 2. solid and hollow brick size:9"*4"*3" or 10"*5"*3" 3. hollow brick size:400*200*100mm,300*200*150mm or 300*200*100mm

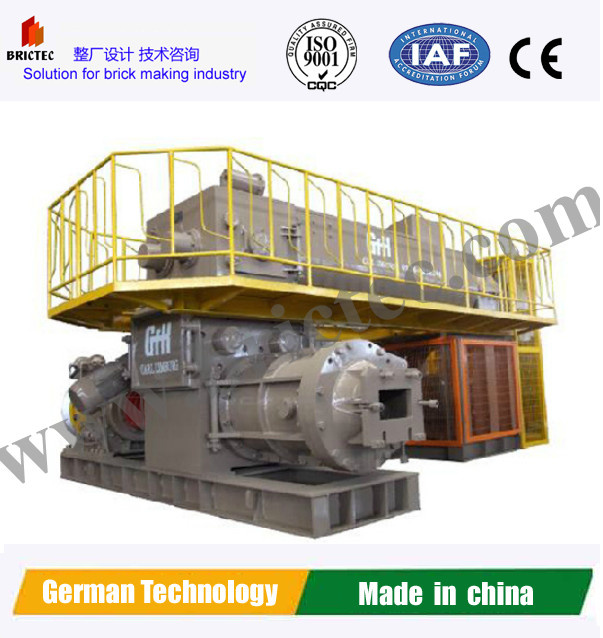

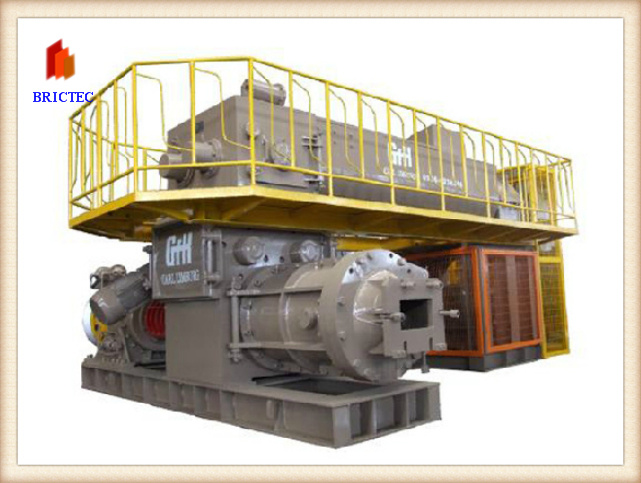

The photo of vacuum extruder
Specification
VP45A
VP45B
VP50A
VP50B
Output (standard pcs/h)
10000_14000
10000_14000
12000_16000
12000_16000
Diameter of Extrusion Reamer(mm)
450
450
500
500
Rotary Speed of Extrusion Reamer(r/min)
24(Customizable)
24(Customizable)
28(Customizable)
28(Customizable)
Distribution Power (kW)
110+55+7.5X2
110+55+7.5X2
132+55+7.5X2
132+55+7.5X2
Allowable Extrusion Pressure(MPa)
4
3
4
3
Vacuum(MPa)
-0.096
-0.096
-0.096
-0.096
Model of Upper Reducer
Z335
ZQ65
Z335
ZQ65
Model of Lower Reducer
N560
ZQ100
N560
ZQ100
Model of Vacuum Pump
SK-6
SK-6
SK-6
SK-6
