Production Name:
Fiber Glass PPR Pipe Production Line
Product Type:
Plastic Composite Pipe
Automation:
Automatic
Computerized:
Computerized
Product Description

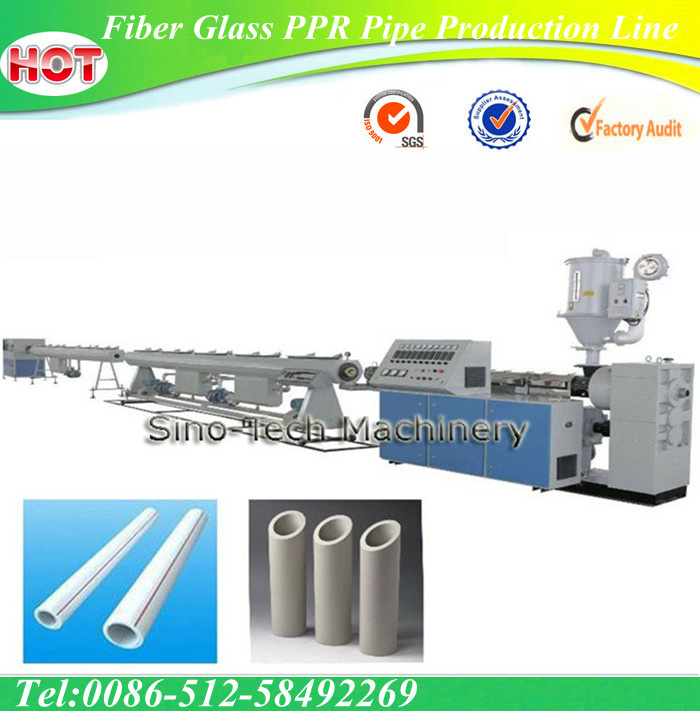

Machine: Fiber Glass PPR Pipe Production Line/PPR Pipe Extrusion line
Configuration:
Single screw extruder
Marking extruder (Optional)
Mould
Vacuum tank
Calibration tank
Haul off
Cutter
Stacker
Application and features:
This line is mainly used for extruding PPR PERT etc pipe products. Equipped with co-extrusion machine head it can produce PPR fibre composite pipe.
1. The design of groove feeding barrel and barrier type screw can improve the efficiency of plasticization. The extruding capacity is high and melting temperature and pressure is low and save energy source.
2. The filtering type mould head are adopted, which guarantee the material is sheared overly and prevent the material from being degraded.
model
PP-R63
PP-R110
pipe range(mm)
20-63
63-110
capacity(kg/h)
90
150
center height(mm)
1000
1000
single screw
extruder
extruder model
SJ65
SJ90
screw diameter(mm)
65
90
L/D
30:1 32:1
28:1 30:132:1
Screw rotation speed(rmp)
80
70
motor power(kw)
30/37
45/55
heating power(kw)
20
30
coolin blower power(kw)
0.18
0.18
vacuum calibration tank
length of calibration case(mm)
6000
6000*2
vacuum degree(mpa)
-0.08
-0.08
absorbing gas speed(m3/h)
60
60*2
water pump power(kw)
2*2.2
2*2.2
longitudinal moving motor power(kw)
1.1
1.1
Spray cooling tank
length of spraying tank(mm)
4000-6000
6000-8000
water pump power(kw)
2.2
2.2
haul off
driving power(kw)
3
5.5
max pull(N)
7000
10000
effctive haul off length(mm)
1200
1700
blade type cutter
blade diameter(mm)
350
350
driving power(kw)
2.2
2.2
working air pressure(mpa)
0.7-0.7
0.7-0.7
stacker
length(mm)
6000
6000
