Minimum Letter:
English: 0.2 X 0.2mm
Resetting Positioning Accuracy:
0.002
Wavelenth:
1064nm
Cooling Mode:
Air Cooled
Scan Head:
High Precision Digital Scan Head
Beam Quality:
M2:1.2~1.8
Electrical Requirements:
AC220V 10%.50Hz.10AMP
Operational Temp Range:
10-40c
Operational Humidity Range:
5%-75%, Non-Condensing
Warranty:
2 Years on Laser Source
Product Description

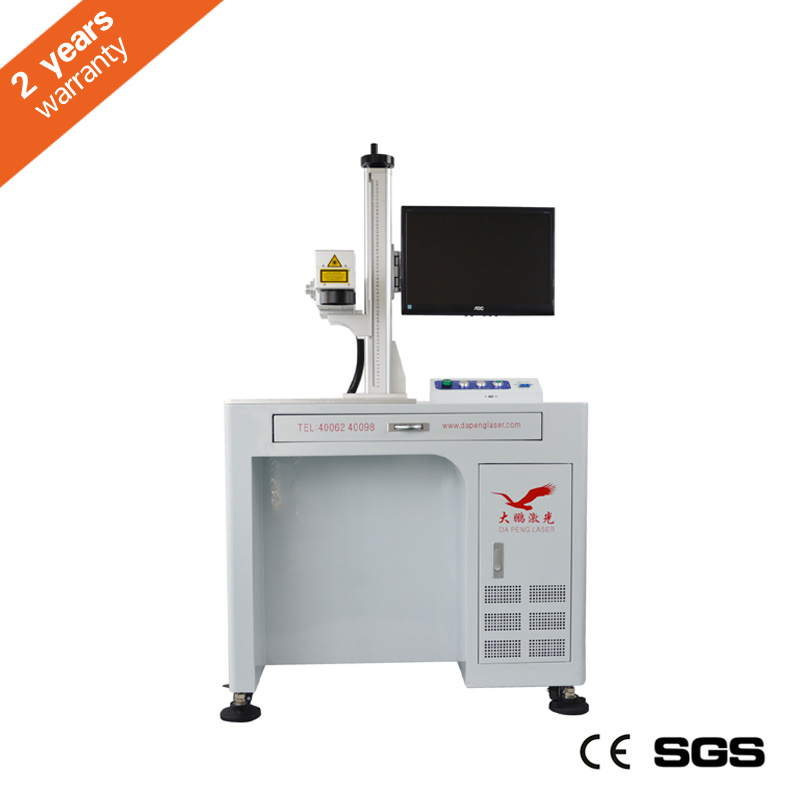

fiber laser metal engraving machine
More details pls add my skype
1: Competitive Price. 2: CE/SGS Approve. 3: You are welcome to visit our company.
Advantages:
Coast saving on power consumption/Unit Power only 0.6KW No routine maintenance/ zero-maintenance Life time over 100,000hrs Air cooled/No chiller needed Red aiming pointer/No more mistakes Solid aluminum top work surface & Swing arm laptop stand Portable tabletop units to automated production systems available
Features:
Easy to Use Automation Features
Sharp, High Contrast, Impact Free
High Speed Galvo Steering
Compact
100,000 Hrs Laser Lifetime
2 Year Warranty
Turnkey System
Permanant Marking
Air Cooled/Energy Efficient
Tunable Pulse Rate
Environmentally Friendly/No Consumable
Digital I/O for Easy Operation
Fast Set-Up
Red Laser Pointer
Specifications:
Model
DML-F10/20/30/50
Laser Power:
10W,20W,30W,50W
Wavelenth:
1064nm
Standard Marking Area:
100mm*100mm
Optional Marking Area:
150mm*150mm,200mm*200mm,300mm*300mm
Marking Speed:
≤7000mm/s
Minimum Line Width
0.02mm
Minimum letter
English: 0.2 x 0.2mm
Marking Depth
0 ~0.5mm
Location precision
≤0.01mm
Resetting positioning accuracy
0.002
Beam Quality
M2:1.2~1.8
Electrical Requirements:
Ac220V±10%.50HZ.10Amp
Cooling mode
Air cooled
Scan Head
High Precision Digital Scan Head
Unit Power
<0.5kw
Operational Temp Range
10-40C
Operational Humidity Range
5%-75%, Non-condensing
Warranty:
2 years on laser source
Dimensions:
820*690*1550MM
Net Weight
180KG
Software:
True Type Fonts
Single Stroke Fonts
Elliptical Text
Sequential Serial Numbers
Customizable Auto Dating
Barcodes
QR Codes and Data Matrix
UID Wizard
Logos
Photo Quality Images - JPG, TIF, GIF
Corel Draw, Adobe Illustrator
Raster Graphics
Vector Graphics
CAD Files
Applications:
We offer Fiber Laser Marking Machine with following applications: Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others Hall marking on Gold Automotive & Engineering Industries Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.
MATERIALS:
Stainless Steel
Steel
Aluminum, Carbide
Nickel
Titanium
Cast Iron
Chrome
Painted Metal Alloys
Multi-Coated Metals
Plastics/Rubber
Backlit Buttons
Polycarbonate
PVC
Composites
Many more materials
