Inlet: 0.8-1.2mm
Output: 0.08-0.4mm

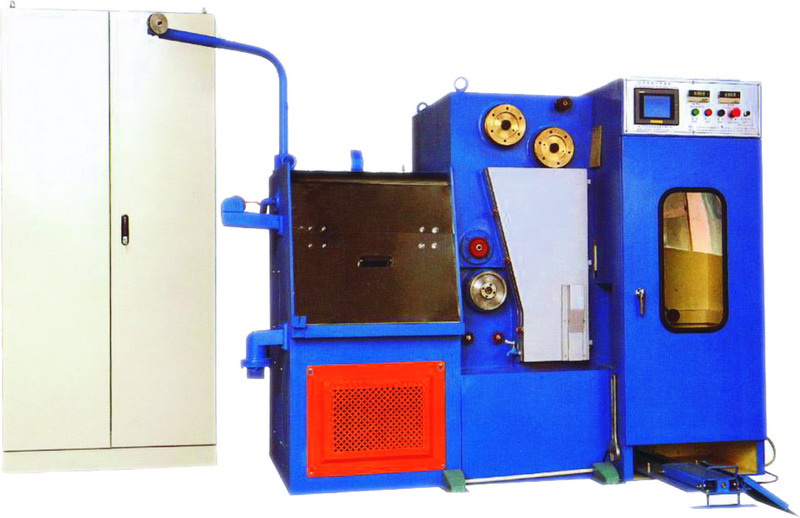

Machine with annealer
Min order: 1set
Products models
D22T
D24T
Revolving speed
2000m/min
2000m/min
Main motor
15kw
11kw
Take-up drive motor
5.5kw
3.7kw
Inlet wire
0.8—1.2mm
0.5—1.2mm
Finish dia
0.1—0.32mm
0.08—0.25mm
Spool capaticy
50kg
50kg
No. of dies
22
24
Annealing capacity
12KVA
12KVA
Reduction rate
15%
13%
Brake
Magnetic brake
Magnetic brake
Power source
380V 50HZ
380V 50HZ
Dimension
2600*1600*1900
2600*1600*1900
Weight
3000kg
3000kg
Yancheng AIJIN electrical machinery Co., Ltd adheres to the company spirit of "scientific and technological innovation, more professional and stronger" and strives to make the advanced, efficient and easy operation machines. "AIJIN"brand will become an international famous brand with the development of your enterprise!
