Product Description

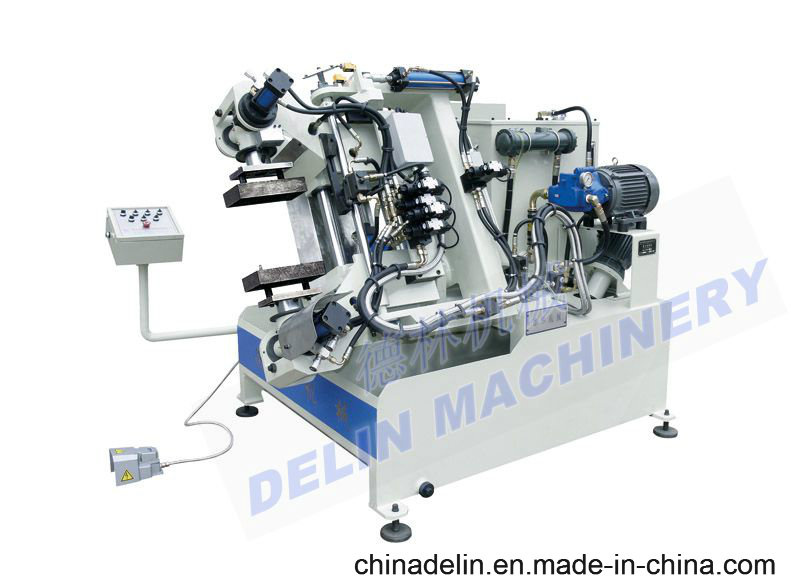

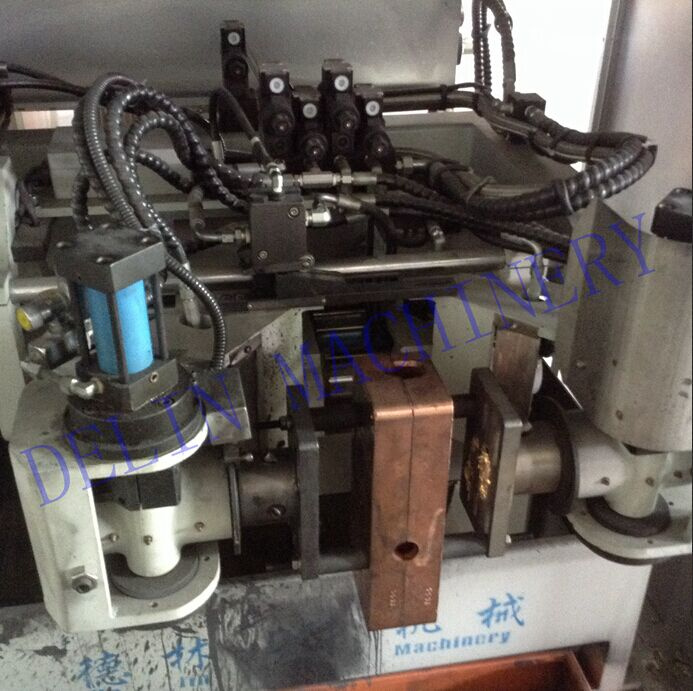

DELIN GRAVITY DIE CASTING MACHINE DL-Z450-B(FOR BASS CASTING)
Summary
Along with vigorous development and diversification of cooper processing industry, processing technique of cooper processing industry has been updated and improved continuously. Our company designed DL-450-B gravity filler according to the working principle of gravity casting to meet production requirement. This machine is suitable for brass gravity casting with an easy operation, a new and unique design and a reasonable price (our company introduces advanced technical equipment from Italy and Korea. Currently we have produced a complete set of equipment of gravity casting, including: gravity casting processing instruction, personnel training and mould design).
Product Description
1) For gravity model casting with brass and ferroalloy 2) Front casting, lateral casting and secondary casting are optional. 3) Individual cooling time of model is adjustable. 4) The dismantling, assembly and cleaning of model are convenient. 5) Two functions of manual and automatic circulation are available. Totalizing counter and preset counter are arranged to record the piece number of on duty production. 6) Adjustment range of model is defined to make the using of different models easy and reduce requirement of model's exterior physical dimension 7) This machine can store 100 sets model casting operation programs and you can set your password. 8) This machine can store 100 sets model casting operation programs and you can set your password.
Main Technical Parameters
1,Biggest Size of The Mould
Ø450mm
2,Heaviest Weight of The Mould
130kg
3,Largest Merger Distance
≤250mm
4,Hydraulic Pressure
40-60KPa
5,Angle of Lateral Casting
0°-90°
6,Frontal Casting Angle
0 -110°
7,Hydraulic Lube
163L
8,Net Weight of Machine
1750kg
9,Size of Appearance of Machine(L*W*H)
2250*2160*1560mm
10,Installing Top Core Available
20mm
11,Total Power
5.5kw

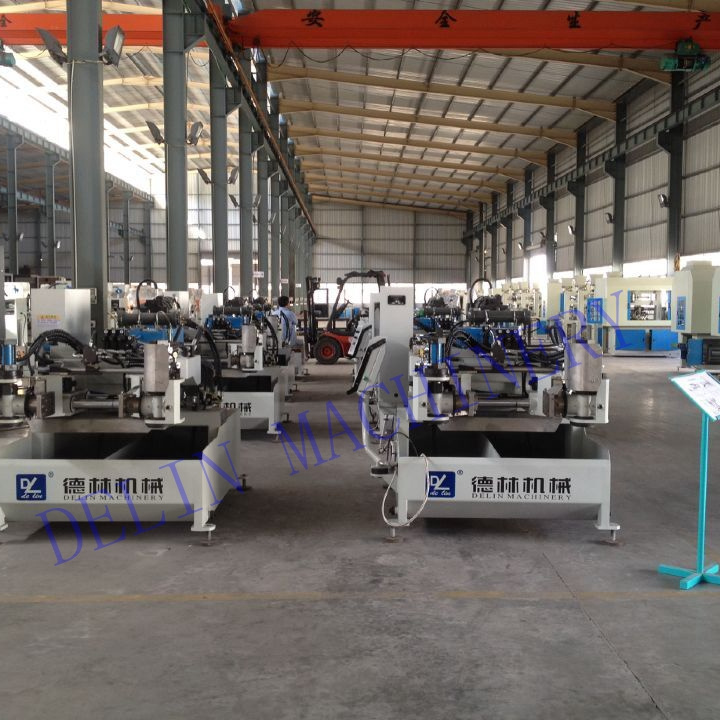

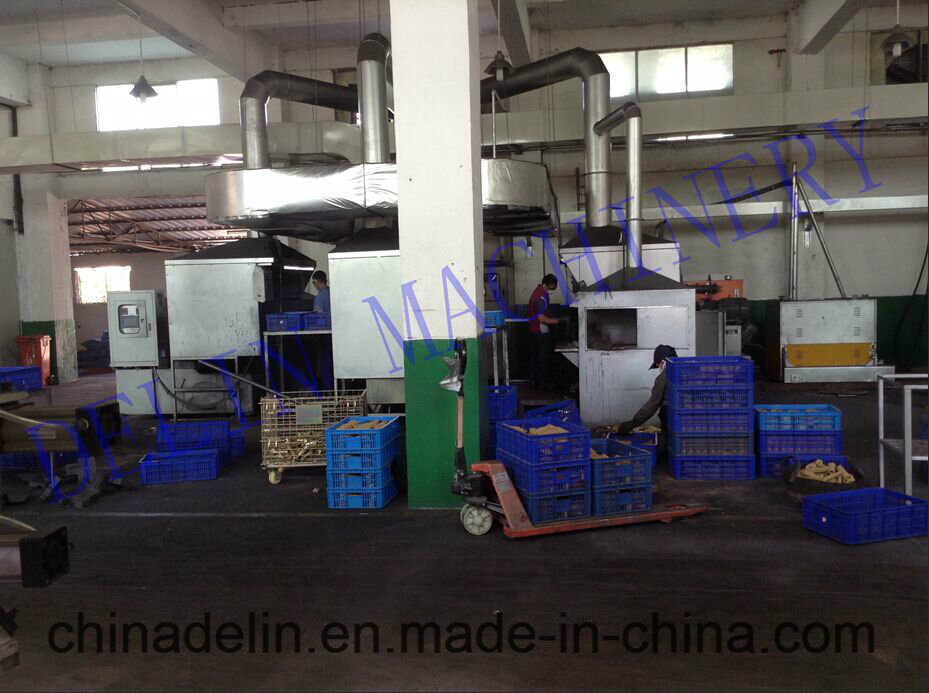

WORKSHOPE
DELIN company established in 1998 with an area of about 50000 square meters and staffs about 350. It located in sanitray hometown-Nanan, with very convenient transportation, only 1 hour from Xiamen airport.
Our company is specialized in making complete line of casting machine. In 2013, DELIN mergered Changjiang Industry, which is famous for Auto polishing machine manufacturing. And in 2015 it mergered another first-class team in China which has been specialized in manufacturing manual and auto-working Drilling and Tapping machine.
Products are widely used in Sanitaryware, car spares, valves, as well as in Iron casting fields.
The following are our main products: Low pressure casting machine, Gravity die casting machine, furnace, ( Automatic) core shooting machine, Mix sand machine, ( CNC ) Drillling and Tapping machine, Auto-polishing machine, Molding machine, Abrator, etc...
We have many sales and sale service centers, our products sale to home and abroad. In our country, we hold 70% of the market, especially in provice of fujian, guangdong, zhejiang. In these provice we have our sale and service centers. In the abroad, we have saled to many country, such as Iran, Vietnam, India, Egypt, Bangladesh, Russia, etc.
DELIN company established in 1998 with an area of about 50000 square meters and staffs about 350. It located in sanitray hometown-Nanan, with very convenient transportation, only 1 hour from Xiamen airport.
Our company is specialized in making complete line of casting machine. In 2013, DELIN mergered Changjiang Industry, which is famous for Auto polishing machine manufacturing. And in 2015 it mergered another first-class team in China which has been specialized in manufacturing manual and auto-working Drilling and Tapping machine.
Products are widely used in Sanitaryware, car spares, valves, as well as in Iron casting fields.
The following are our main products: Low pressure casting machine, Gravity die casting machine, furnace, ( Automatic) core shooting machine, Mix sand machine, ( CNC ) Drillling and Tapping machine, Auto-polishing machine, Molding machine, Abrator, etc...
We have many sales and sale service centers, our products sale to home and abroad. In our country, we hold 70% of the market, especially in provice of fujian, guangdong, zhejiang. In these provice we have our sale and service centers. In the abroad, we have saled to many country, such as Iran, Vietnam, India, Egypt, Bangladesh, Russia, etc.
