Laser Output Power:
7W/10W
Wavelength:
532mm
Marking Speed:
800c/S
Power Consumption:
800W
Cooling Method:
Air Cooled
Warranty:
12months
Product Description

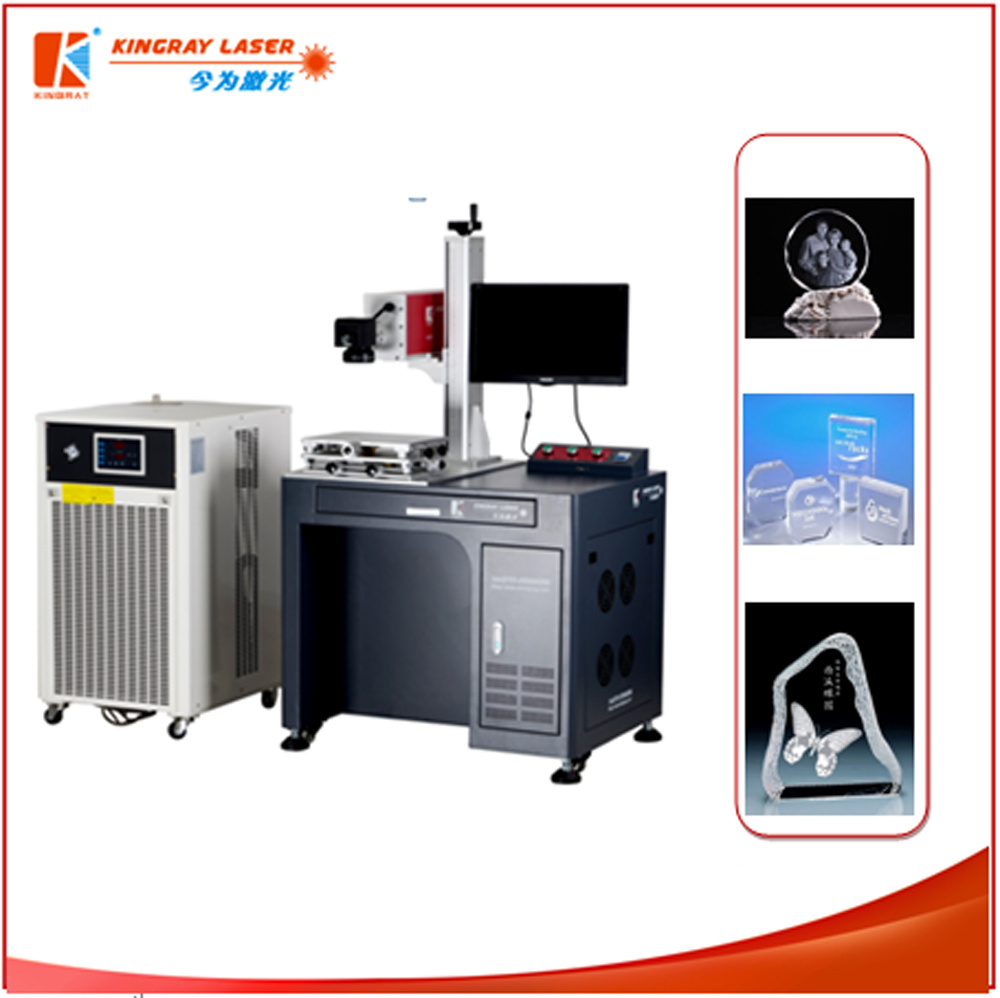

Introduction: Green laser marking machine adopts the state-of-the-art laser pumped technology. The green laser module is consisted of laser crystal and nonlinear crystal. In laser cavity, the wavelength of 808nm LD pumped laser has some effects on the gain laser crystal to form 1064nm laser, then the 1064nm laser generates 532nm green laser through nonlinear crystal frequency doubling effect. KRGL green laser machine is widely used for glass, surface and internal engraving of crystal products, as well as surface process and thin film coating of most metal and non-metal materials. Features: 1.Small laser spot, good optic mode, suitable for high requirements of graphic and text marking. 2.The 532nm output laser reduces the heat effect on work piece to achieve more refined marking and repeating process is available. 3.Flexible laser worktable design can support different output laser wavelength, laser power and pulse width, suitable for different marking requirements. 4.Suitable for combining with production line for automatic material delivery, and can be used for most metal and non-metal materials marking. 5.Convenient and fast operating system, supported graphic format like PLT, PCX, DXF, BMP, etc. It supports automatic typeset and modification of text symbols, graphics, bar code, QR code and auto-increment serial number auto-increment automatic serial number, etc. Application Industries: Widely used in glass, surface and internal engraving of crystal products, as well as surface process and thin film coating of most metal and non-metal materials. Suitable Materials: Suitable for mobile phone screen, LCD screen, crystal, glass, metal hardware, ceramics ,glassware and horology , PC and plastics products etc. Technical Parameters:
Type/Parameter
KRGL-7
KRGL-10
Type/Parameter
KRGL-7
KRGL-10
Laser output power
7W
10W
Q-switched frequency
20KHZ-120KHZ
Wavelength
532mm
Dimension
800mm×680mm×120mm
Beam quality
<2
Electric requirements
220V±10%50HZ/10A
Min. character size
0.1mm
Cooling method
Air Cooled
Min line width
0.015mm
Total weight
120KG
Repetition accuracy:
±0.003m
Power consumption
800W
Marking speed
800C/S
