Prod Model: |
SH150-600 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
150-600kg/H |
Max Candy Weight: |
6g |
Depositing Speed: |
55-N/Min |
Electric Power Needed: |
32-75kw/380V |
Total Length: |
17m-18m |
Price: |
Reasonable |
Quality: |
Best |
Quantity: |
Large |
Compressed Air Requirement: |
0.2m3/Min, 0.4-0.6MPa |
Temp: |
20-25oc |
Application: |
Candy |
Customized: |
Customized |
Product Description

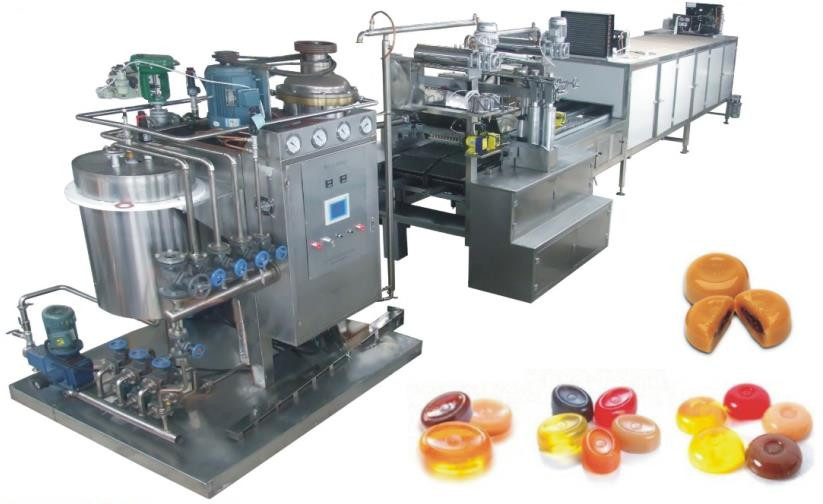

Hard Candy Making Machine
Automatic Hard Candy Depositing Line (PLC controlled)
SH150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
The strongpoint of the line is as following:
1.PLC /computer process control available;
2.An LED touch panel for easy operating;
3.The production capacity from 150 kgs/h to 450kgs/h;
4.Optional (mass) flowing controlled by Frequency inverters ;
5.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, flavors and acids;
6.One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing","two /three-color double layers depositing", "central filling", "clear" hard candies and etc. can be made.
Moulds can be made according to the candies samples provided by the customer."
Parameters:
MODEL | SH150 | SH300 | SH450 | SH600 |
Capacity(kg/hr) | 150 | 300 | 450 | 600 |
Max candy weight | 6g | 6g | 6g | 6g |
Depositing speed | 55-65n/min | 55 | 65n/min | 55 |
Compressed air requirement | 0.2m3/min, 0.4-0.6Mpa | 0.2m3/min, 0.4-0.6Mpa | 0.2m3/min, 0.4-0.6Mpa | 0.2m3/min ,0.4-0.6Mpa |
Working condition | Temp:20-25ºC Humidity:55% | Temp:20-25ºC Humidity:55% | Temp:20-25ºC Humidity:55% | Temp:20-25ºC Humidity:55% |
Total Power | 18kw/380V | 27kw/380V | 34kw/380V | 38kw/380V |
Total Length | 17m | 17m | 18m | 18m |
Total Weight | 3500kg | 4000kg | 4500kg | 5000kg |
Packaging & Shipping
Port: XINGANG, SHANGHAI, QINGDAO
Delivery time: Depending on your orders and mechanical models
Payment term: 30% T/T in advance for deposit, the balance against the copy of the B/L
Packaging: Single-layer and multi-layer heat sealing materials, such as OPP, CPP, PET aluminum-plated film, aluminum plastic film, paper plastics, paper adhesi, and wooden packing
Our Services
1.We will provide guarantee of the equipment permanently whatever within guarantee period or not, we will react during 48 hours after received the fax required to ensure the recovery of buyer's production line first.
2.We will despatch engineers to working place of buyer and guide the workers to install and operate the equipment, and to install the water,electric appliance,and steam connecting with the machine, the buyer should pay the technicians return fly tickets and visa and accommodation and food with 30usd/day allowance.
4.We will dispatch the professional to help buyer major fixing.
5. We will provide the parts of equipment permanently based on the principle of reasonable price and quick delivery to guarantee the machine's function in normal.
6.We will provide the technical guiding and support.
