South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type:
PE Pipe
Automation:
Non-Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

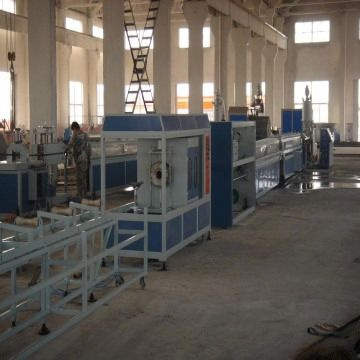

HDPE gas and water pipe extrusion line can produce pipes 63mm to 400mm, we can design this production line according to your special request.
Equipment consistance:
Single Screw Extruder SJ-90/35
Material Feeding System
Single Screw Extruder SJ_30/25
Die head
Moulds
Calibrating sleeve
Vacuum shaping Tank
Water-Spraying Tank
Hauling Machine GQY-1200
Planet Cutting Machine STG-1200
Overturning Bracket STF-6000
Control system
odel/Spec.
Diameter range (mm)
Co-extruder model
Line speed (m/min)
Max output (Kg/h)
Installed power (kw)
LSG150/33
400-800 mm
LSJ40/25
0.1-0.5
1200
450
1. SJ-150/33 extruder
1unit
1.1 DC motor, 450KW
1 set
1.2 Speed regulating unit, 450KW
1 set
2. Co-extruder SJ-45/25 for marking lines
1 set
3. Mould
1set
750-1000mm
4. SZD-6000 Vacuum calibration unit (the height of the centerline is 1350mm)
2 sets
Equipped with 2 vacuum pumps and4 water pumps.
5. SDP-6000 Spray cooling bath (the height of the centerline is 1350mm)
4 sets
6. SQY-1000 Hauling-off machine (the height of the centerline is 1350mm)
1 set
8-pedrail hauling-off machine, up and down bedrail
Valid clamping length: 3200mm
7. SQG-1000 Cutting machine (the height of the centerline is 1350mm)
1 set
Planetary cutting
8. SFL-12000 Stacker
1 unit
Shandong huanhai machinery group Co., Ltd is one of largest machineries manufacture in China. It consisted of 3 factories, with more than 800 workers and engineers.
We speclized in manufacturing and exporting of all kinds agricultural machineries, construction machineries and plastics machineries. Our factories have more than 20 years manufacturing experience and can supply all kinds of high quality machinery and equipment. Many of our products have passed CE approval and are exported to European and American market.
We pay much attention to innovation of products, also we adopt all usuful suggestions from customers to improve our products, we can desigh and arrange production according to your reasonable suggestions.
