Apply To:
Metal Tube, Metal Wire
Drawing Force:
40kn
Diameter:
20mm
Drawing Speed:
30-50m/Min
Coiliing Block Diameter:
1400mm
Compressibility:
155% (According Material)
Revolving Speed Of Motor:
1480rmp
Drawing Force Once:
178n/M
Frequency Converter:
55kw
Motor Power:
45kw
Type:
Headstand Metal Drawing Machine
Usage:
Ccoil Tube
Max.Inlet Wire Dia.:
20mm
Max. Number Of Block:
1
Block Dia.:
1400mm
Product Description

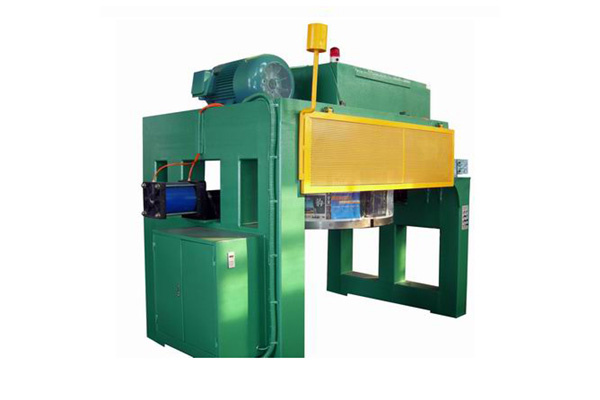

Headstand Tube/ Wire Drawing Machine (FR-D800)
Headstand Tube/ Wire Drawing Machine implement the strongly tensile or broaching for (bronze. Stainless steel. Iron. Silver. Aluminum) tube (bar) material.
Headstand Tube/ Wire Drawing Machine is used to recoil the loose tubes after reduce diameter. It is an essential finishing equipment in coil pipe production.
Uncoiling and coilling through AC drive and frequncy control to meet the requirements of speed synchronizing and variation. It helps protect the tube surface through hydraulic tensioning and core pullers.
Automatic alarm and automatic zero-load stop to ensure high-speed and reliable finishing and recoilling of the copper tube.
Technical parameter of Headstand Tube/ Wire Drawing Machine
1
Apply to
Coil tube, wire
2
Maximum diameter
Φ20mm
3
Drawing force
24KN
4
Speed of drawing
30-50m/min
5
Compressibility
15% (according material)
6
Drawing force once
178N/m
7
Coiling block diameter
Φ1400mm
8
Revolving speed of motor
1480rmp
9
Frequency converter
55KW
10
Motor power
45KW
11
Voltage
380V 50Hz
12
Weight(reference)
6.5T
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
