Type:
Tool Milling Machine
Object:
Tool
Structure:
Bed type
Controlling Mode:
CNC
Automatic Grade:
Automatic
Precision:
High Precision
Product Description

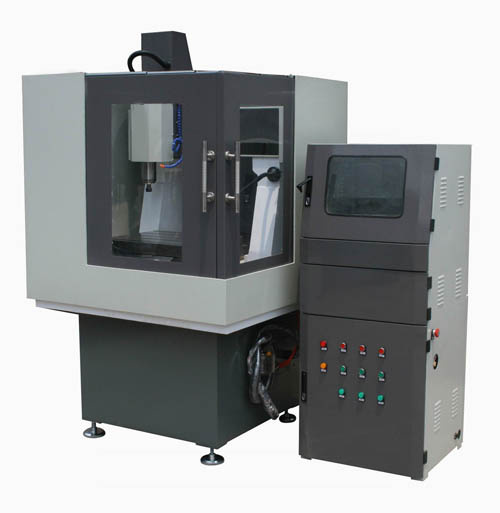

cnc milling machine for metal 1.whole cast-iron structure, steady structure, high rigidity precision 0.01mm. 2. Three axis all use Germany ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision. 3. Imported NK200 system, This system has break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. The function can guarantee the processing precision of long time operation.. 4. Adopt table movement to keep stable. 5. Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency , long-lifetime, can be a long time continuous working . Application: Used for the processing of metal mould ,graphite electrode, mobile phone, camera and MP3. Optional models: 4030, 5040, 6060, 8080 Parameters:
MODEL
OD-4050 CNC Milling Machine
Working Area (X*Y*Z)
500X400X30mm(19.6X23.6X11.8 inch)
Table size
650X750mm
Processing accuracy
0.015mm/300mm
Repositioning accuracy
0.015mm/300mm
Lathe structure
Cast iron
Table structure
Cast iron
Spindle
2.2KW Constant power variable speed , water-cooled
Spindle rotating speed
0-24000rpm/min
Max Moving Speed
12000mm/min
Working speed
0-8000mm/min
Driving mode
XYZ-Ball screw
Voltage
AC220V/50Hz
Max. Power consumption
3.5KW
Feeding Height
300mm
Drive motor
Servo
Command
G.code , mmg , plt , uoo,HPGL
Compatible Software
ArtCAM, masterCAM UG software
Certificate
CE,FDA
Pack dimensions
1400mm X 1400mm X 2000mm wooden trunk
Net weight
1800KG
